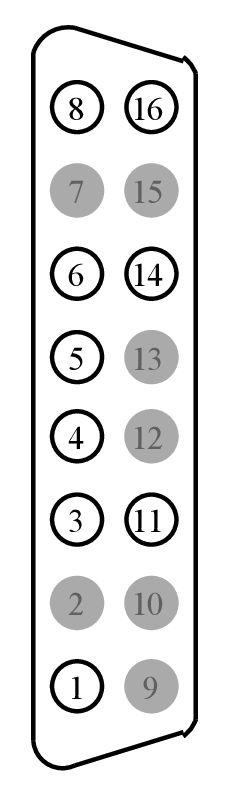

Connector End View (C251) - DATA LINK CONNECTOR (DLC)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C251	DATA LINK CONNECTOR (DLC)	BK	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VDB13 (BU-GY)	22	CTRL MOD. - GENERIC # UBP BUS (UART BASED PROTOCOL)	N/A
2	*	*	Not Used	N/A
3	VDB06 (GY-OG)	22	CTRL MOD. - GENERIC # UBP BUS (UART BASED PROTOCOL)	N/A
4	GD138 (BK-WH)	22	GROUND - PILLAR A RIGHT	N/A
5	GD133 (BK)	18	GROUND - PILLAR A LEFT	N/A
6	VDB04 (WH-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH	N/A
7	*	*	Not Used	N/A
8	VDB14 (VT-GY)	22	CTRL MOD. - GENERIC # UBP BUS (UART BASED PROTOCOL)	N/A
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	VDB07 (VT-OG)	22	CTRL MOD. - GENERIC # UBP BUS (UART BASED PROTOCOL)	N/A
12	*	*	Not Used	N/A
13	*	*	Not Used	N/A
14	VDB05 (WH)	22	CTRL MOD. - GENERIC # UBP BUS (UART BASED PROTOCOL)	N/A
15	*	*	Not Used	N/A
16	SBP26 (YE-RD)	20	FUSE - 26 OR CIRCUIT BREAKER	N/A

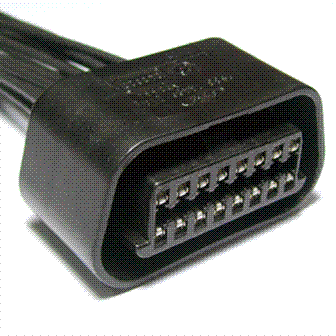

Available Pigtail Kits

Pigtail Kit Part Number WPT-1410

Courtesy of FORD MOTOR COMPANY

Service Part Number:

EU2Z-14S411-PA

Gauge:

18

Pin material:

Tin

Cavities:

16

Vehicle Uses:

• Test Connector - Diagnostic
