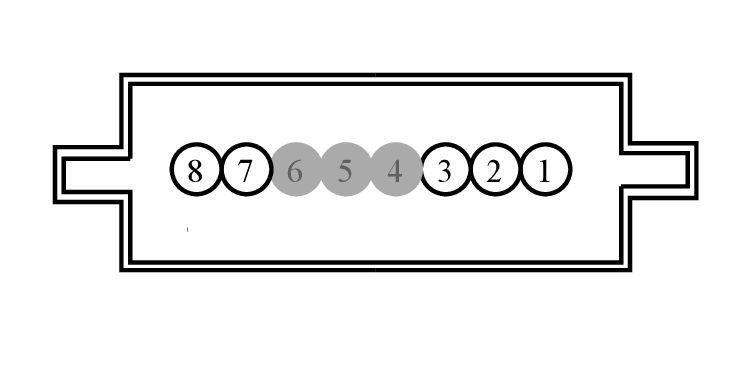

Connector End View (C226B) - STEERING ANGLE SENSOR MODULE (SASM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C226B	STEERING ANGLE SENSOR MODULE (SASM)	3F818			part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	* (*)	*	TRIP SIGNAL	N/A
2	* (*)	*	DISPLAY SIGNAL	N/A
3	* (*)	*	DISPLAY/TRIP GROUND	N/A
4	*	*	Not Used	N/A
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A
7	* (*)	*	SWITCH - IP/SWITCH ILLUMINATION	N/A
8	* (*)	*	CRUISE SIGNAL 1	N/A
