Connector End View (C214) - INLINE

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C214	INLINE	BK	1429714K733	See Below

MALE

Harness

14297

FEMALE

Harness

14K733

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CBB37 (WH)	20	N/A

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CBB37 (WH)	20	N/A

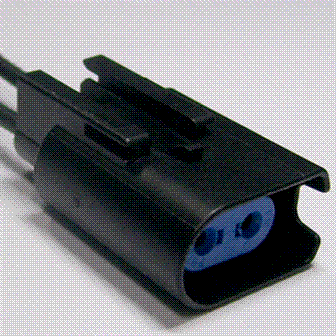

Available Pigtail Kits

Pigtail Kit Part Number WPT-1359

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-UDB

Gauge:

16

Pin material:

Tin (greased)

Cavities:

2

Vehicle Uses:

• Diode - Blower Motor Relay
• Lamp - CHMSL (Center High Mount Stop Lamp)
• Mirror - Sideview
• Relay - Blower Motor
• Sensor - Speed
• Switch - Hood Ajar
• Switch - Radio Antenna
