Connector End View (C139) - INLINE

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C139	INLINE	BK	3C22114K733	See Below

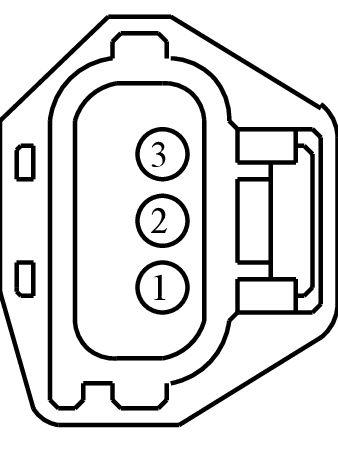

MALE

Harness

3C221

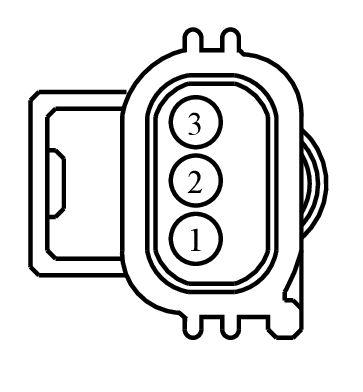

FEMALE

Harness

14K733

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CBB44 (GN)	20	N/A
2	VDB04 (WH-BU)	20	N/A

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CBB42 (GN)	20	N/A
2	VDB04 (WH-BU)	22	N/A

Available Pigtail Kits

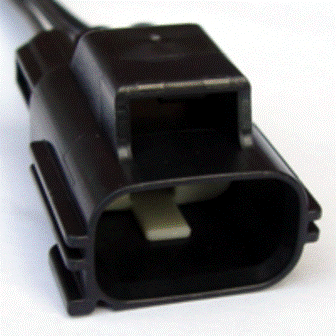

Pigtail Kit Part Number WPT-493

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-NPA

Gauge:

18

Pin material:

Tin

Cavities:

3

Vehicle Uses:

• Switch - Heater A/C Temp Control

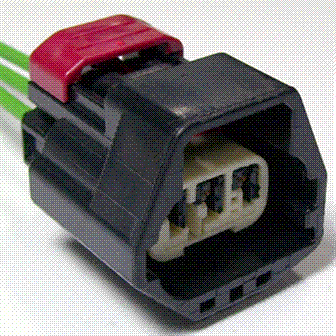

Pigtail Kit Part Number WPT-1543

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-EXC

Gauge:

16

Pin material:

Silver

Cavities:

3

Vehicle Uses:

• Motor - Rear Window Wiper
• Pretensioner - Seat Belt (Passenger)
• Sensor - Brake Fluid Level
• Sensor - Manifold Absolute Pressure (MAP)
• Sensor - Yaw

Pigtail Kit Part Number WPT-1218

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-EXB

Gauge:

16

Pin material:

Silver

Cavities:

3

Vehicle Uses:

• Motor - Rear Window Wiper
• Pretensioner - Seat Belt (Passenger)
• Sensor - Brake Fluid Level
• Sensor - Manifold Absolute Pressure (MAP)
• Sensor - Yaw
