License Lamps/Liftgate Release Switch

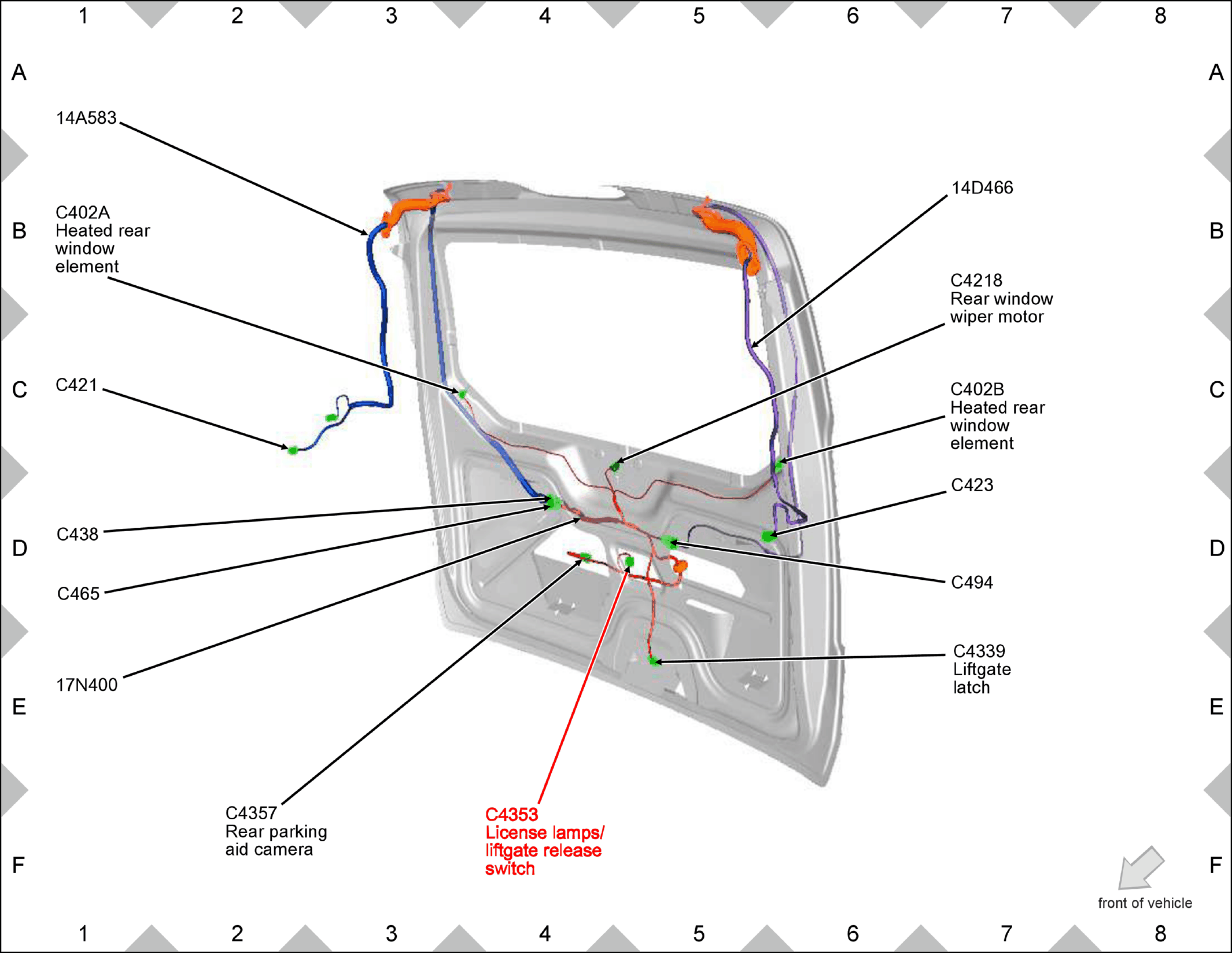

Fig 1: License Lamps/Liftgate Release Switch Components Location

GFDW64298

Courtesy of FORD MOTOR COMPANY
