Removal And Installation: Hood: Removal

NOTE: Removal steps in this procedure may contain installation details.

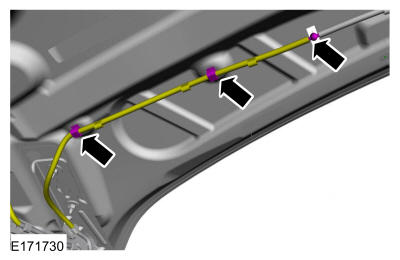

  1. Detach the windshield washer hose retainers and coupling.
    GFD216051Courtesy of FORD MOTOR COMPANY

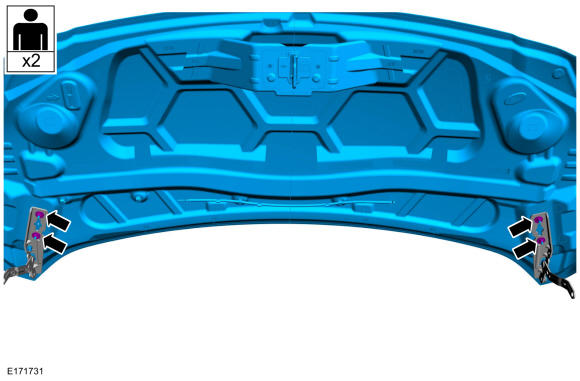

  2. Remove the nuts and the hood.

    Torque: 97 lb.in (11 Nm)

GFD216052Courtesy of FORD MOTOR COMPANY
