Cowl Panel: Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the cowl panel grille. Refer to: Cowl Panel Grille .

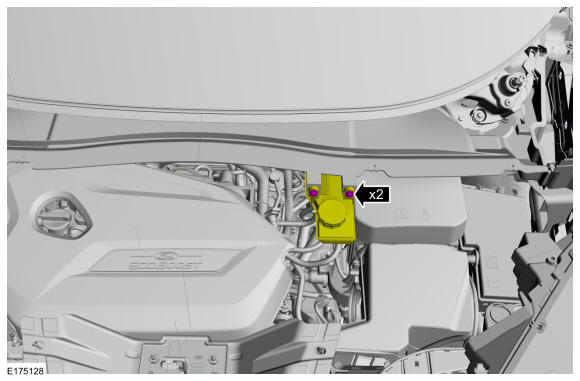

Remove the screws and position the brake fluid reservoir aside.
Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

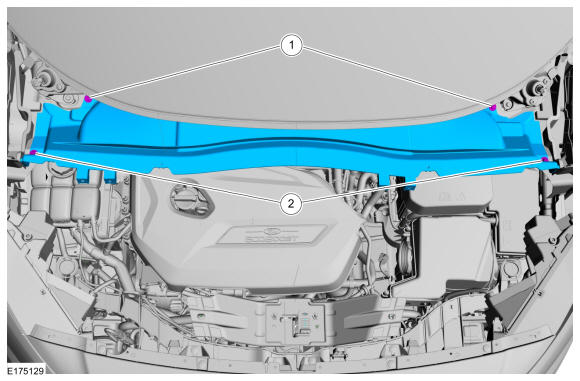

1. Remove the bolts.
  Torque: 97 lb.in (11 Nm)
2. Remove the screws and the cowl panel.
  Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY
