Turbine Shaft Speed (TSS) Sensor: Installation
- Lubricate the TSS sensor O-ring seal with clean transmission fluid.
Material: Motorcraft ® MERCON ® LV Automatic Transmission Fluid / XT-10-QLVC (MERCON ® LV) (WSS-M2C938-A)

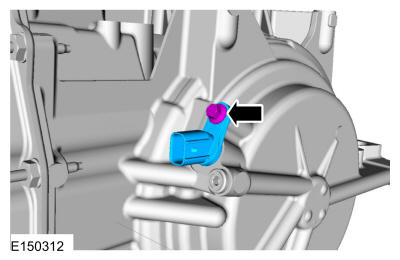

- Install the TSS sensor and install the bolt.
Torque: 89 lb.in (10 Nm)

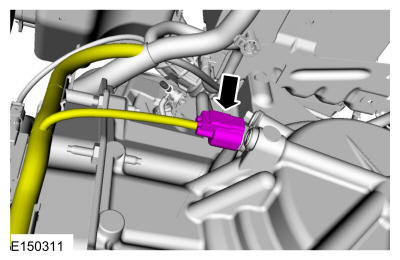

- Connect the TSS sensor electrical connector.

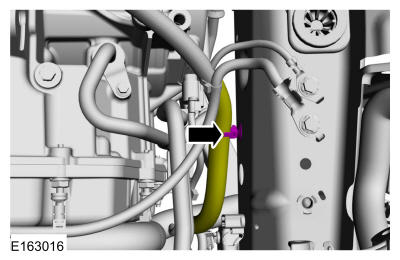

- Attach the TSS sensor wiring harness retainer.
- Install the air cleaner. Refer to: Air Cleaner .
