Transmission Internal Wiring Harness Frame: Removal

  1. Remove the main control cover. Refer to: Main Control Cover .

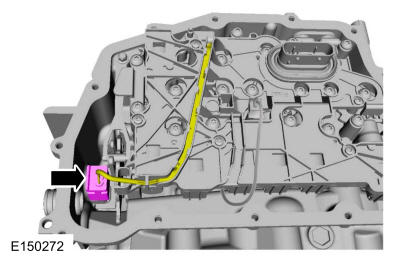

  2. Disconnect the TR sensor electrical connector.
    GFD215112Courtesy of FORD MOTOR COMPANY

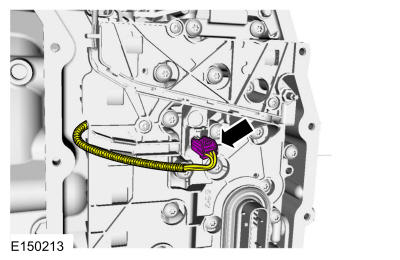

  3. Disconnect the OSS sensor electrical connector.
    GFD215113Courtesy of FORD MOTOR COMPANY

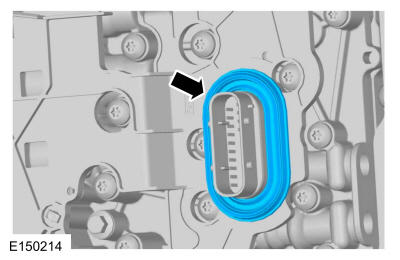

  4. Remove the main control-to-cover seal.
    GFD215114Courtesy of FORD MOTOR COMPANY

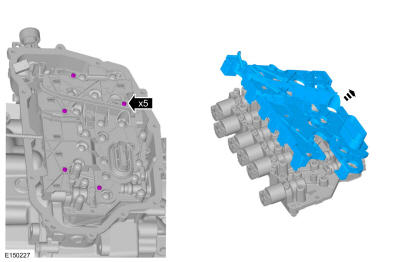

  5. NOTE: Take extra care when handling the component terminals.

    Remove the screws and carefully remove the transmission internal wiring harness frame from the solenoids by lifting it straight up evenly.

GFD215115Courtesy of FORD MOTOR COMPANY
