Halfshaft Seal LH: Removal

  1. Remove the LH halfshaft. Refer to: Front Halfshaft LH .

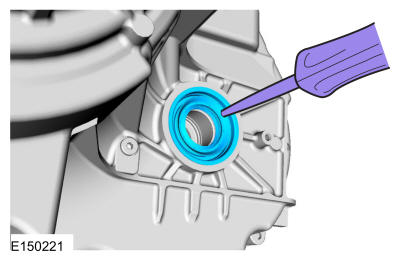

  2. Poke a small hole in the halfshaft seal. Use the General Equipment: Punch
    GFD215064Courtesy of FORD MOTOR COMPANY

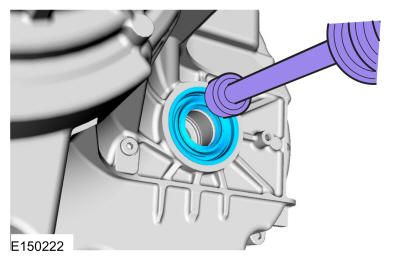

  3. Using a dent puller, remove the halfshaft seal. Use the General Equipment: Puller
GFD215065Courtesy of FORD MOTOR COMPANY
