Wheel Bearing and Wheel Hub: Removal

  1. Remove the brake disc. Refer to: Brake Disc .
  2. Remove the rear wheel speed sensor. Refer to: Rear Wheel Speed Sensor .
  3. Remove the brake hose bracket lower bolt and position aside the brake hose bracket.
    GFD214128Courtesy of FORD MOTOR COMPANY

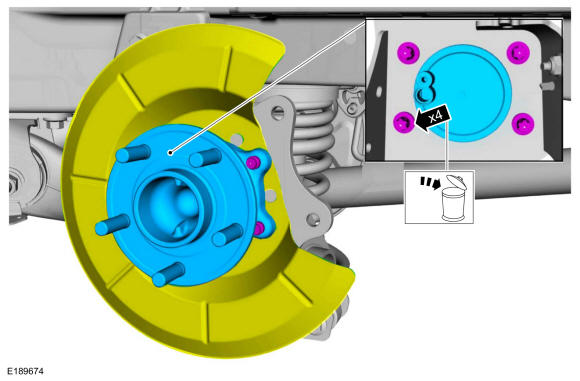

  4. Remove and discard the 4 wheel bearing and wheel hub bolts and remove the wheel bearing and wheel hub.
GFD214129Courtesy of FORD MOTOR COMPANY
