Rear Shock Absorber: Installation
-
NOTE: Only tighten the nut and bolt finger tight at this stage.

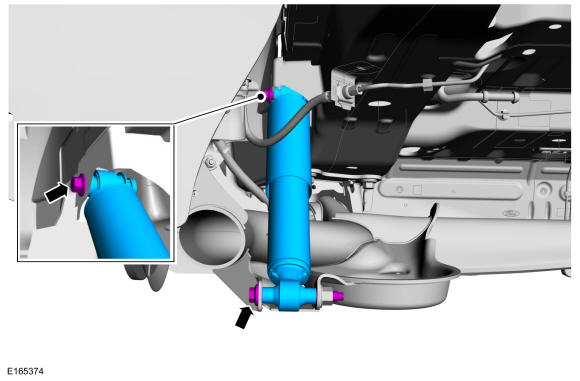

Install the shock absorber and bolts.
- On both sides. Position the axle stand supporting the beam axle. Lower the floor jack maintaining 5mm gap between vehicle and jack. Use the General Equipment: Vehicle/Axle Stands
- Tighten the upper and lower shock absorber bolts.
Torque: 85 lb.ft (115 Nm)
- To install, reverse the removal procedure.
