Beam Axle: Installation

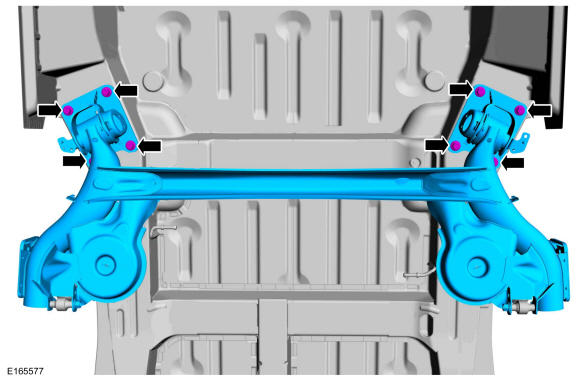

- Install the beam axle and the bolts.
Torque: 129 lb.ft (175 Nm)
-
NOTE: Only tighten the nut and bolt finger tight at this stage.

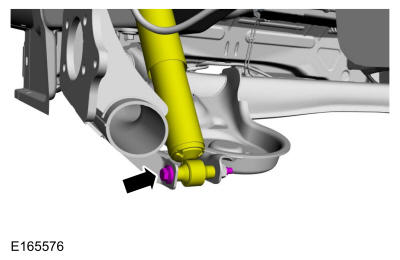

On both sides. Install rear shock absorber lower bolts.

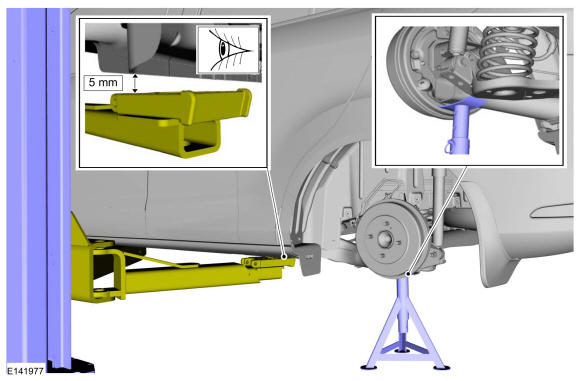

- On both sides. Position the axle stand supporting the beam axle. Lower the floor jack maintaining 5mm gap between vehicle and jack.
- On both sides. Tighten rear shock absorber lower bolts.
Torque: 85 lb.ft (115 Nm)
- To install, reverse the removal procedure.
