Third Row Seatbelt Buckle: Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: The following procedure prescribes critical repair steps required for correct restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the restraint system and increases the risk of serious personal injury or death in a crash.
- Remove the third row seat. Refer to: Third Row Seat .

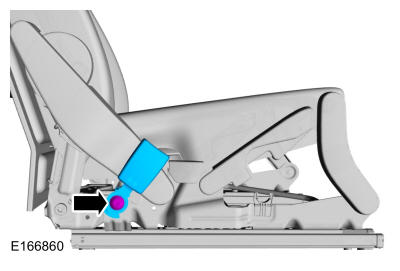

- Remove the bolt and the safety belt buckle.
Torque 18 lb.ft (25 Nm)
