Side Airbag: Removal
WARNING:
The following procedure prescribes critical repair steps required for correct restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the restraint system and increases the risk of serious personal injury or death in a crash.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the front seat backrest cover. Refer to: Front Seat Backrest Cover .

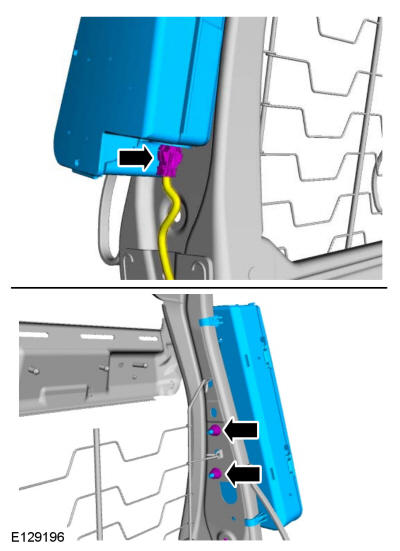

- Disconnect the electrical connector, remove the nuts and the side airbag.
Torque: 53 lb.in (6 Nm)
