Passenger Airbag: Removal
WARNING:
The following procedure prescribes critical repair steps required for correct restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the restraint system and increases the risk of serious personal injury or death in a crash.
NOTE:
Removal steps in this procedure may contain installation details.
- Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .
- Remove the instrument panel upper section. Refer to: Instrument Panel Upper Section .

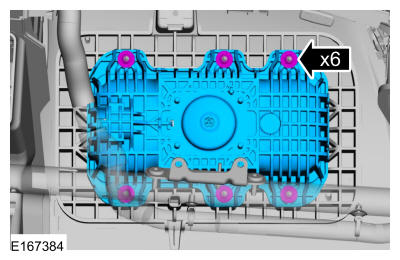

- Remove the retainers and the passenger airbag.
Torque: 53 lb.in (6 Nm)
