Supplemental Climate Control - Component Location

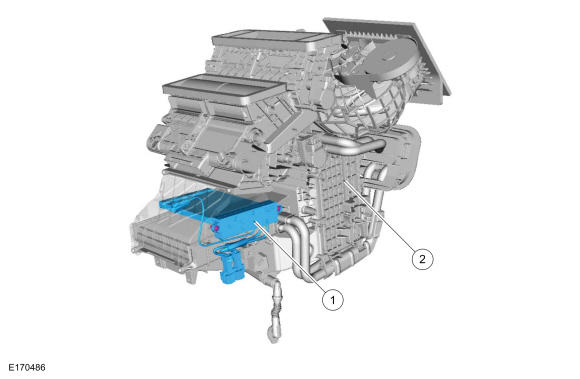

Front Electric Booster Heater

GFD215792Courtesy of FORD MOTOR COMPANY
Item Description
1 Front electric booster heater
2 Front climate control housing

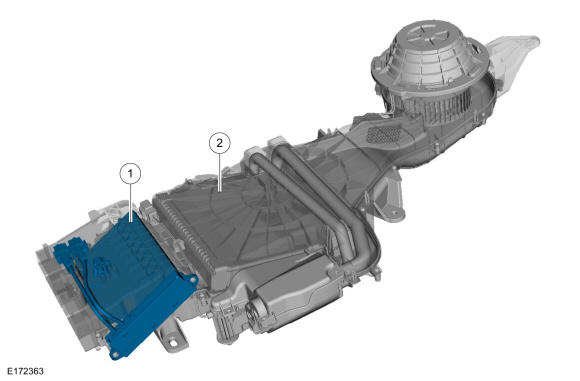

Rear Electric Booster Heater

GFD215793Courtesy of FORD MOTOR COMPANY
Item Description
1 Rear electric booster heater
2 Rear climate control housing
