Pinpoint Test Ta: Clutch Pedal Position (CPP) Switch: Introduction
This pinpoint test is intended to diagnose the following:
- CPP sensor
- CPP switch (11A152/7C534)
- harness circuits: CPP, CPP-BT, GND, SIGRTN, and VREF
- PCM (12A650)
| Pin | Circuit |
|---|---|
| 2 | CPP (Clutch Pedal Position) |
| 1 | SIGRTN (Signal Return) |
| 3 | VREF (Reference Voltage) |

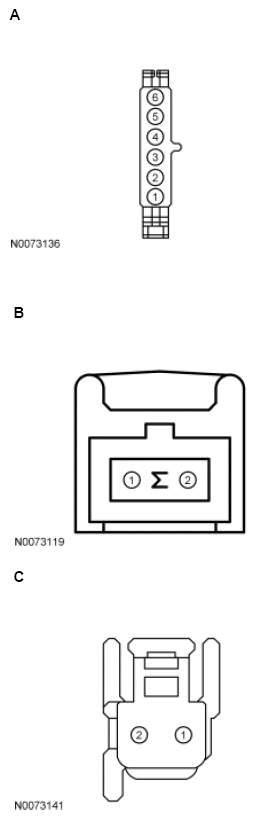

| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| F-Series Super Duty | A | 2 1 |
GND CPP-BT |
| Mustang | B | 2 1 |
GND CPP-BT |
| All other vehicles | C | 2 1 |
GND CPP-BT |
Powertrain Control Module (PCM) Connector
For PCM connector views or reference values, refer to REFERENCE VALUES .
| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| EcoSport | 80 PIN | B13 | CPP-BT |
| F-Series Super Duty | 198 PIN | B8 | CPP-BT |
| Fiesta TiVCT 1.6L | 128 PIN | B14 | CPP-BT |
| Focus 1.0L | 198 PIN | B72 B30 |
CPP CPP-BT |
| Focus GDI 2.0L | 154 PIN | B13 | CPP-BT |
| KA | 128 PIN | B15 | CPP-BT |
| Mustang 3.7L, Mustang 5.0L, Mustang 5.2L |
198 PIN | B9 | CPP-BT |
| All other vehicles | 198 PIN | B30 | CPP-BT |
