Pinpoint Test Kn: Variable Speed Electric Cooling Fan Motor: Introduction
This pinpoint test is intended to diagnose the following:
- cooling fan (CF) module (8B658)
- cooling fan assembly (8C607)
- harness circuits: FCV, FANPWR and GND
- PCM (12A650)
| Pin | Circuit |
|---|---|
| 4 | FCV (Fan Control Variable) |
| 2 | GND (Ground) |
| 1 | FANPWR (Fan Power) |
| Pin | Circuit |
|---|---|
| 4 | FCV (Fan Control Variable) |
| 2 | GND (Ground) |
| 1 | FANPWR (Fan Power) |
| Pin | Circuit |
|---|---|
| 1 | GND (Ground) |
| 2 | FANPWR (Fan Power) |

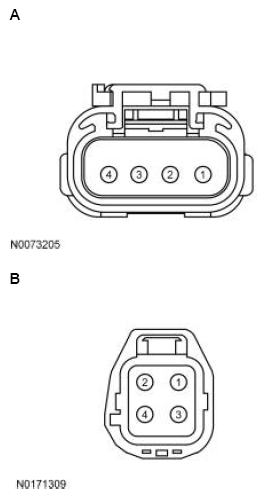

| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| Edge | A | 4 1 2 |
FCV GND FANPWR |
| F-150 | B | 2 1 3 | FCV GND FANPWR |

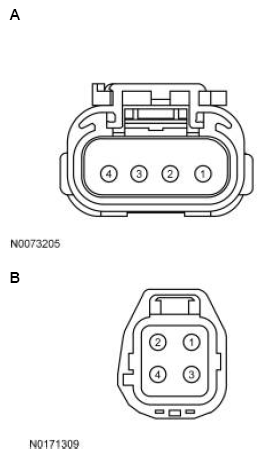

| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| Edge | A | 4 1 2 | FCV GND FANPWR |
| F-150 | B | 2 1 3 | FCV GND FANPWR |

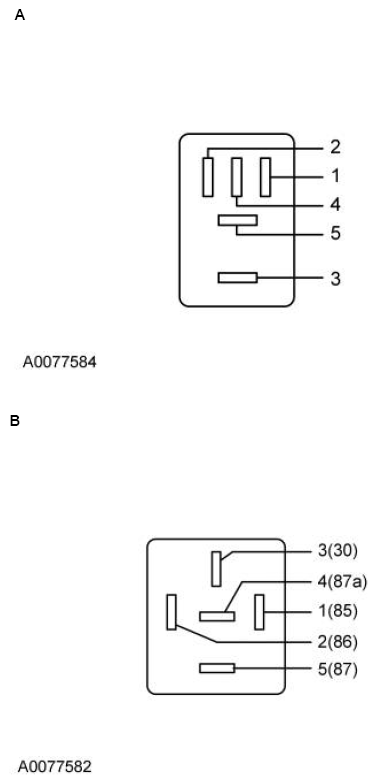

| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| Fiesta | A | 5 2 1 3 | FANPWR GND VPWR B+ |
| All other vehicles | B | 5 2 1 3 | FANPWR GND VPWR B+ |
| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| Continental, Edge, F-150, MKX | A | 5 2 3 1 3 | FANPWR GND B+ VPWR B+ |
| EcoSport, Expedition, Explorer, Fiesta, Flex, Fusion, KA, MKT, MKZ, Mustang, Navigator, Taurus | A | 3 | B+ |
| Escape/Kuga, Focus, MKC, Transit | B | 3 | B+ |
| Ford GT | A | 1 3 | GND B+ |

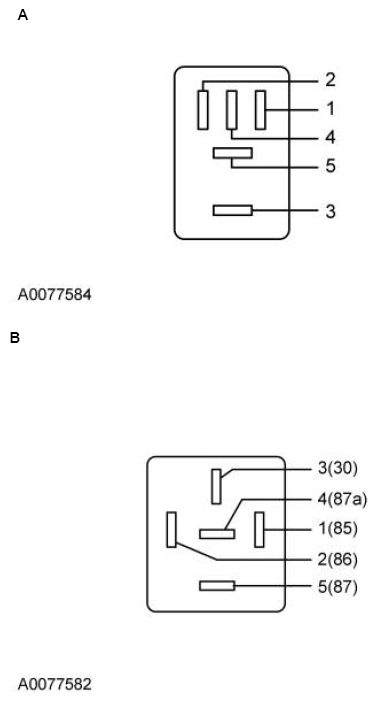

| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| Continental, Edge, Explorer, F-150, Fusion, MKZ, Mustang, Taurus | A | 5 | GND |
| EcoSport, Fiesta | B | 3 | B+ |
| Expedition, Flex, MKC With 3 Fan Relays, MKT, Navigator | B | 5 | GND |
| Ford GT | A | 1 3 | GND B+ |
| Transit | B | 5 | B+ |

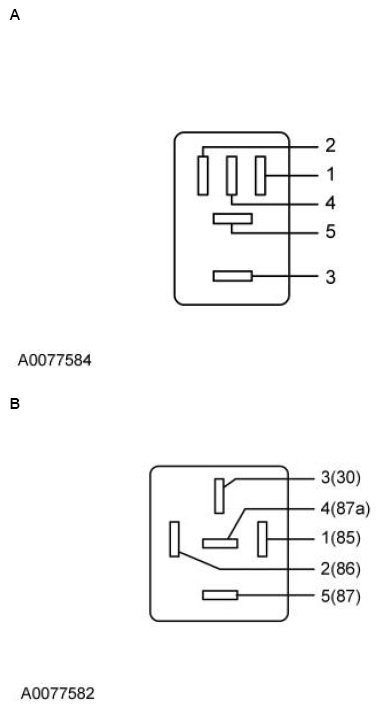

| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| Continental, F-150 |
A | 5 2 1 3 |
FANPWR GND VPWR B+ |
| Edge, MKX |
A | 3 2 1 5 |
FANPWR GND VPWR B+ |
Powertrain Control Module (PCM) Connector
For PCM connector views or reference values, refer to REFERENCE VALUES .
| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| Escape/Kuga, Transit Connect |
198 PIN | B66 | FCV |
| F-150 | 198 PIN | B41 | FCV |
| Fiesta, Focus 1.0L |
198 PIN | B5 | FCV |
| Focus GDI 2.0L | 154 PIN | B8 | FCV |
| Focus GTDI 2.0L | 198 PIN | B4 | FCV |
| Ford GT | 198 PIN | B83 | FCV |
| MKX 3.7L | 198 PIN | B10 | FCV |
| All other vehicles | 198 PIN | B4 | FCV |
