Pinpoint Test JF: Integrated Ignition Coil On Plug Coils A Through J Failure: Introduction
For 2 wire coil harness connectors, select the PCM Ignition Coil Driver Test.
For 3 wire coil harness connectors, select the Driver On Coil Ignition Test.
This pinpoint test is intended to diagnose the following:
- ignition coils (12029)
- ignition coil harness
- PCM (12A650)

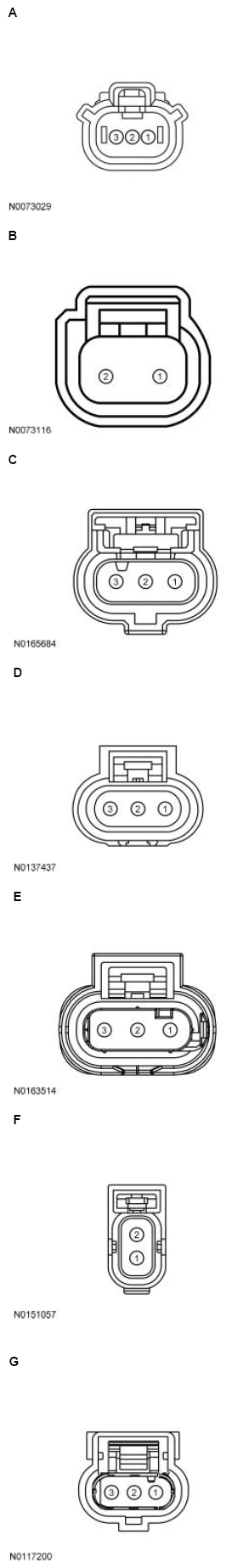

| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| Continental 3.7L, Edge 3.5L, Explorer TiVCT 3.5L, Explorer 3.7L, F-150 TiVCT 3.5L, Flex TiVCT 3.5L, MKT 3.7L, MKX 3.7L, Mustang 3.7L, Mustang 5.0L, Taurus TiVCT 3.5L, Taurus 3.7L, Transit 3.7L |
A | 1 3 |
COP VPWR |
| E-Series 6.2L, F-Series Super Duty 6.2L |
A | 3 1 |
COP VPWR |
| E-Series 6.8L, F-650/F-750, F-Series Super Duty 6.8L, Motorhome/Stripped Chassis/Step Van |
B | 2 1 |
COP VPWR |
| EcoSport, Escape/Kuga 2.5L, Fusion 2.5L, Transit Connect |
B | 1 2 |
COP VPWR |
| Expedition, Explorer GTDI 3.5L, Flex GTDI 3.5L, MKT 3.5L, Navigator, Taurus GTDI 3.5L, Transit 3.5L |
A | 2 1 3 |
COP GND VPWR |
| F-150 5.0L, Mustang 5.2L |
C | 1 3 |
COP VPWR |
| Fiesta 1.0L | D | 1 2 3 |
COP GND VPWR |
| Fiesta GTDI 1.6L, Focus 1.0L |
E | 1 2 3 |
COP GND VPWR |
| KA | F | 1 2 |
COP VPWR |
| All other vehicles | G | 1 2 3 |
COP GND VPWR |
Powertrain Control Module (PCM) Connector
For PCM connector views or reference values, refer to REFERENCE VALUES .
| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| Continental 2.0L, Edge 2.0L, Escape/Kuga 2.0L, Explorer 2.3L, Focus GTDI 2.0L, Focus 2.3L, Fusion 1.5L, Fusion 2.0L, MKC, MKT 2.0L, MKX 2.0L, MKZ 2.0L, Mustang 2.3L, Taurus 2.0L |
198 PIN | E43 E72 E57 E42 |
COP4 COP3 COP2 COP1 |
| Continental 3.7L, Edge 3.5L, Explorer TiVCT 3.5L, Explorer 3.7L, F-150 TiVCT 3.5L, Flex TiVCT 3.5L, MKT 3.7L, MKX 3.7L, Mustang 3.7L, Taurus TiVCT 3.5L, Taurus 3.7L, Transit 3.7L |
198 PIN | E94 E90 E89 E88 E92 E93 |
COP6 COP5 COP4 COP3 COP2 COP1 |
| E-Series 6.2L, F-Series Super Duty 6.2L, Mustang 5.0L |
198 PIN | E90 E87 E88 E89 E92 E94 E95 E93 |
COP8 COP7 COP6 COP5 COP4 COP3 COP2 COP1 |
| E-Series 6.8L, F-650/F-750, F-Series Super Duty 6.8L, Motorhome/Stripped Chassis/Step Van |
198 PIN | E92 E95 E94 E80 E89 E85 E87 E88 E90 E93 |
COP10 COP9 COP8 COP7 COP6 COP5 COP4 COP3 COP2 COP1 |
| EcoSport 2.0L Manual Transmission | 80 PIN | E28 E27 E20 E21 |
COP4 COP3 COP2 COP1 |
| EcoSport 2.0L Automatic Transmission | 128 PIN | T8 T24 T7 T16 |
COP4 COP3 COP2 COP1 |
| Escape/Kuga 1.5L | 198 PIN | E48 E33 E18 E19 |
COP4 COP3 COP2 COP1 |
| Escape/Kuga 2.5L, Fusion 2.5L, Transit Connect |
198 PIN | E89 E84 E94 E79 |
COP4 COP3 COP2 COP1 |
| F-150 GTDI 3.5L | 198 PIN | E57 E56 E71 E70 E55 E41 |
COP6 COP5 COP4 COP3 COP2 COP1 |
| F-150 5.0L | 198 PIN | E95 E92 E88 E94 E87 E89 E90 E93 |
COP8 COP7 COP6 COP5 COP4 COP3 COP2 COP1 |
| Fiesta | 198 PIN | E53 E52 E51 |
E50 COP4 COP3 COP2 COP1 |
| Focus 1.0L | 198 PIN | E52 E51 E50 |
COP3 COP2 COP1 |
| Focus GDI 2.0L | 154 PIN | E93 E69 E94 E70 |
COP4 COP3 COP2 COP1 |
| KA | 128 PIN | T8 T24 T16 |
COP3 COP2 COP1 |
| Mustang 5.2L | 98 PIN | E90 E94 E95 E89 E92 E88 E87 E93 |
COP8 COP7 COP6 COP5 COP4 COP3 COP2 COP1 |
| All other vehicles | 198 PIN | E73 E58 E43 E72 E57 E42 |
COP6 COP5 COP4 COP3 COP2 COP1 |
