Pinpoint Test JD: Crankshaft Position (CKP) Sensor: Introduction

This pinpoint test is intended to diagnose the following:

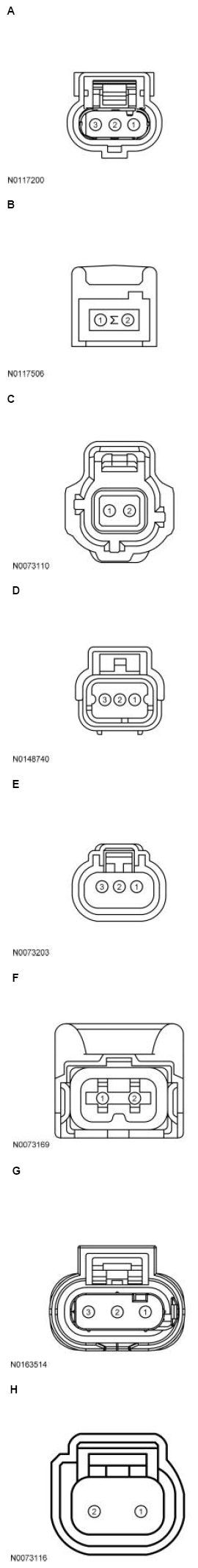

Fig 1: Crankshaft Position (CKP) Sensor Connector
G11848483Courtesy of FORD MOTOR CO.
Vehicle Connector Pin Circuit
Continental 2.0L,
Edge 2.0L,
Escape/Kuga 2.0L,
Focus GTDI 2.0L,
Focus 2.3L,
Fusion 2.0L,
MKC 2.0L,
MKX 2.0L,
MKX 2.7L,
MKZ 2.0L		 A 2
3
1		 CKP
SIGRTN
VREF
Continental 2.7L,
Continental 3.0L,
Edge 2.7L,
F-150 2.7L		 A 2
1
3		 CKP
SIGRTN
VREF
EcoSport 1.6L B 2
1		 CKP
CKP+
EcoSport 2.0L,
Escape/Kuga 2.5L,
Fusion 2.5L,
Transit Connect		 C 2
1		 CKP-
CKP+
Escape/Kuga 1.5L D 1
2
3		 CKP
SIGRTN
VREF
Expedition,
Explorer GTDI 3.5L,
F-150 GTDI 3.5L,
Flex GTDI 3.5L,
Ford GT,
MKT 3.5L,
Navigator,
Taurus GTDI 3.5L,
Transit 3.5L		 A 1
2
3		 CKP
SIGRTN
VREF
Explorer 2.3L,
Focus GDI 2.0L,
MKC 2.3L,
MKT 2.0L,
Mustang 2.3L,
Taurus 2.0L		 E 2
3
1		 CKP
SIGRTN
VREF
Fiesta 1.0L,
Fiesta GTDI 1.6L,
Focus 1.0L,
KA 1.0L		 D 3
2
1		 CKP
SIGRTN
VREF
Fiesta TiVCT 1.6L,
KA 1.5L		 F 2
1		 CKP-
CKP+
Fusion 1.5L G 3
2
1		 CKP
SIGRTN
VREF
Fusion 2.7L,
MKZ 3.0L		 A 3
1
2		 CKP
SIGRTN
VREF
All other vehicles H 1
2		 CKP-
CKP+

Powertrain Control Module (PCM) Connector

For PCM connector views or reference values, refer to REFERENCE VALUES .

Vehicle Connector Pin Circuit
Continental 3.7L,
E-Series,
Edge 3.5L,
Explorer TiVCT 3.5L,
Explorer 3.7L,
F-150 TiVCT 3.5L,
F-150 5.0L,
F-650/F-750,
F-Series Super Duty,
Flex TiVCT 3.5L,
MKT 3.7L,
MKX 3.7L,
Motorhome/Stripped Chassis/Step Van,
Mustang 3.7L,
Mustang 5.0L,
Taurus TiVCT 3.5L,
Taurus 3.7L,
Transit 3.7L		 198 PIN E70
E69		 CKP+
CKP-
EcoSport 2.0L Manual Transmission,
EcoSport 1.6L		 80 PIN E9
E2		 CKP+
CKP-
EcoSport 2.0L Automatic Transmission,
Fiesta TiVCT 1.6L		 128 PIN T6
T14		 CKP+
CKP-
Escape/Kuga 1.5L 198 PIN E38 CKP
Escape/Kuga 2.5L,
Fusion 2.5L,
Transit Connect		 198 PIN E60
E59		 CKP+
CKPF-
150 GTDI 3.5L 198 PIN E27 CKP
Fiesta GTDI 1.6L,
Fiesta 1.0L,
Focus 1.0L		 198 PIN E49 CKP
Focus GDI 2.0L 154 PIN E45 CKP
KA 1.0L 128 PIN E37 CKP
KA 1.5L 128 PIN E38
E37		 CKP+
CKP-
Mustang 5.2L 198 PIN E70
E60		 CKP+
CKP-
All other vehicles 198 PIN E11 CKP
