Engine - 2.5L DURATEC (125KW/170PS): Removal: Engine

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	300-OTC1819E2, 200# Floor Crane, Fold Away
Courtesy of FORD MOTOR COMPANY	303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor TKIT-1994-LM/M TKIT-1994-F TKIT-1994-FLM/FM
Courtesy of FORD MOTOR COMPANY	307-566 Retainer, Torque Converter TKIT-2006C-FFMFLM TKIT-2006C-LM TKIT-2006C-ROW
Strap Wrench
Magnetic Socket
Tie Rod End Remover
Lifting Bracket
Oil Drain Equipment
Cable Ties
Hose Clamp(s)
Hose Clamp Remover/Installer
Center Punch
Mounting Table Set
3.5 mm Drill Bit

1. Follow the health and safety precautions. Refer to: Health and Safety Precautions .
2. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
3. Release the fuel system pressure. Refer to: Fuel System Pressure Release .
4. Remove the cowl panel. Refer to: Cowl Panel .
5. Remove the battery tray. Refer to: Battery Tray - 2.5L Duratec (125kW/170PS) .

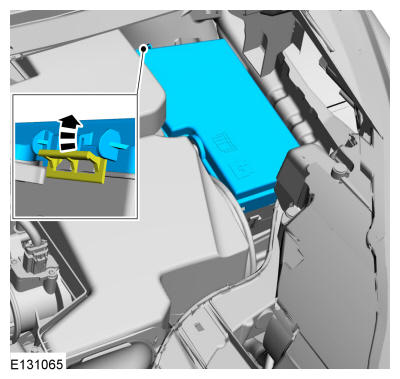

6. Remove the engine compartment fuse box cover.

   Courtesy of FORD MOTOR COMPANY

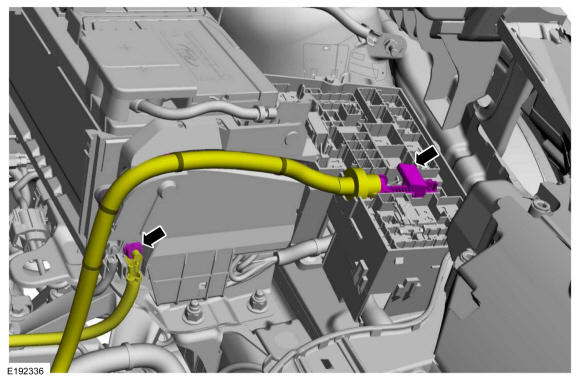

7. Disconnect the main wiring harness from the fuse box and the battery feed cable.

   Courtesy of FORD MOTOR COMPANY

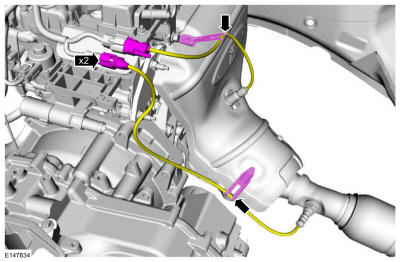

8. Disconnect the HO2S electrical connector and catalyst monitor sensor electrical connector. Disconnect the wire retainers.

   Courtesy of FORD MOTOR COMPANY

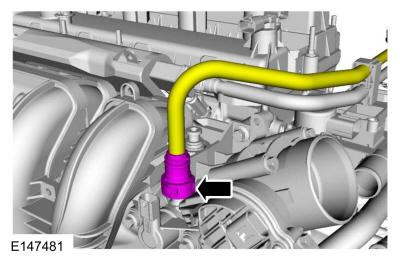

9. Drain the engine cooling system. Refer to: Cooling System Draining, Vacuum Filling and Bleeding .
10. NOTE: Be prepared to collect escaping fluid.

    Drain the engine oil. Use the General Equipment: Oil Drain Equipment

    Courtesy of FORD MOTOR COMPANY

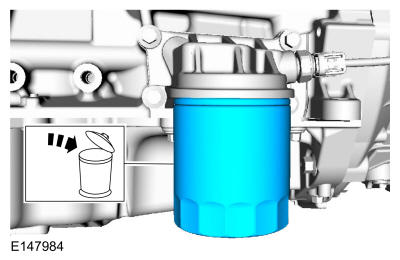

11. NOTE: Be prepared to collect escaping fluid.

    Remove and discard the engine oil filter. Use the General Equipment: Strap Wrench Use the General Equipment: Oil Drain Equipment

    Courtesy of FORD MOTOR COMPANY

12. NOTE: Do not excessively bend or twist the exhaust flexible pipe. Failure to follow these instructions may cause damage to the flexible pipe.

    Support the exhaust flexible pipe with a support wrap or suitable splint. Install the General Equipment: Cable Ties

    Courtesy of FORD MOTOR COMPANY

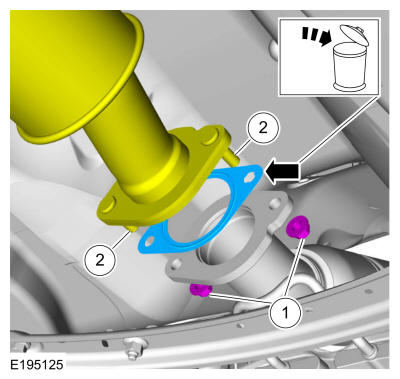

13. 1. Remove the nuts.
    2. Position back the exhaust system, remove and discard the gasket.

    Courtesy of FORD MOTOR COMPANY

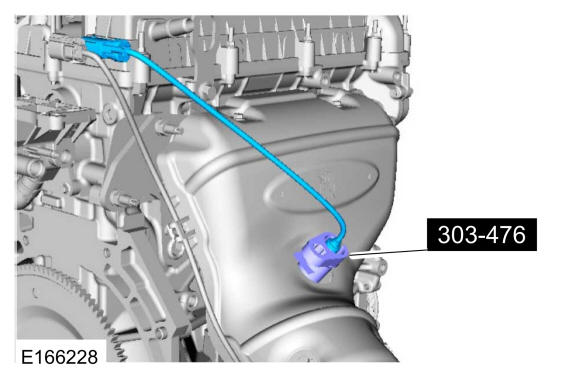

14. Using the special tool, remove the HO2S. Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.

    Courtesy of FORD MOTOR COMPANY

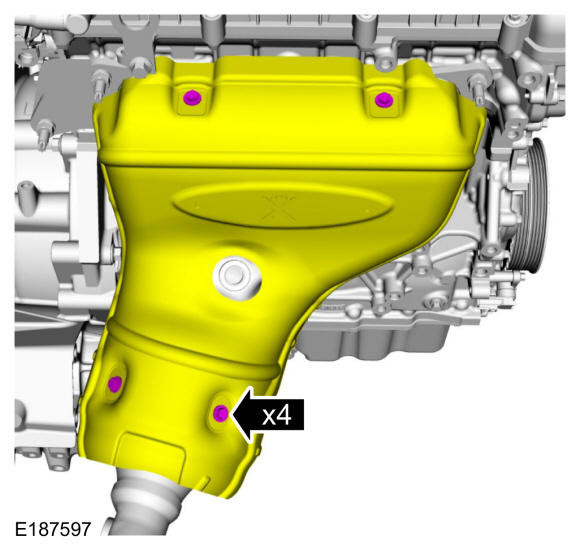

15. Remove the bolts and position aside the exhaust manifold heat shield.

    Courtesy of FORD MOTOR COMPANY

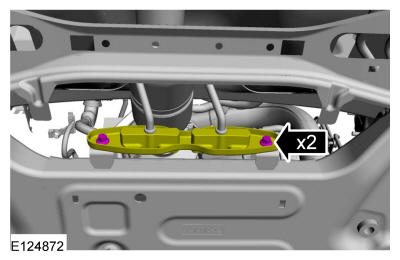

16. Remove the exhaust support bracket bolts.

    Courtesy of FORD MOTOR COMPANY

17. Remove the bolts for the exhaust manifold bracket.

    Courtesy of FORD MOTOR COMPANY

18. Remove and discard the nuts. Position back the exhaust manifold. Use the General Equipment: Cable Ties

    Courtesy of FORD MOTOR COMPANY

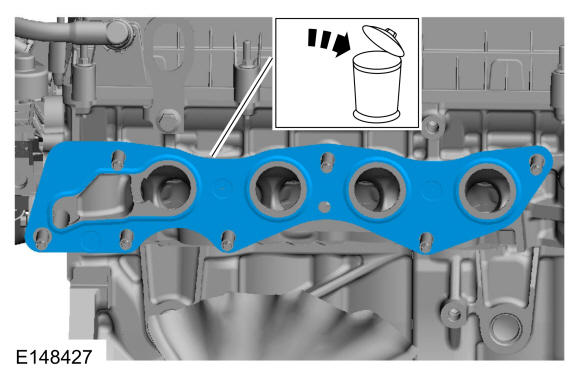

19. Remove and discard the exhaust manifold gasket.

    Courtesy of FORD MOTOR COMPANY

20. Remove the bolts and disconnect the wire harness retainers from the frame rail.

    Courtesy of FORD MOTOR COMPANY

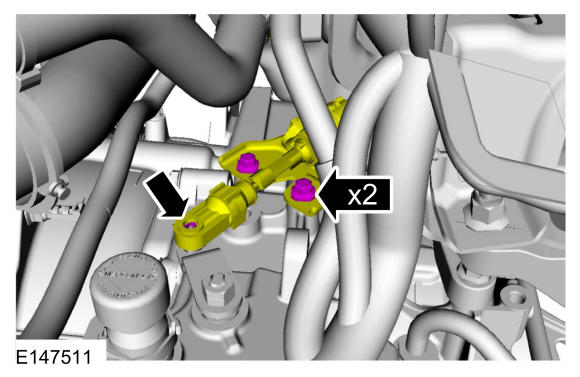

21. Remove the bolts and disconnect the transmission shift cable. Position aside the transmission shift cable.

    Courtesy of FORD MOTOR COMPANY

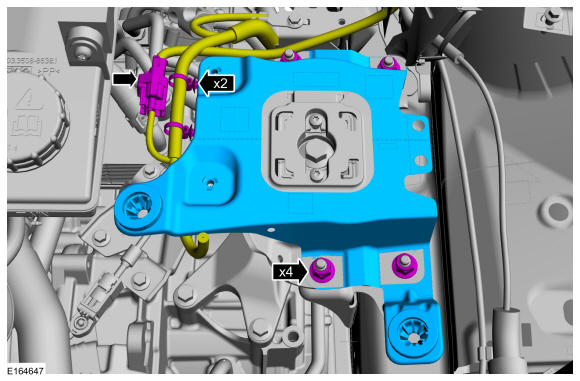

22. • Disconnect the electrical connector, disconnect the wiring retainers and position aside the wiring harness.
    • Remove the nuts and the battery tray bracket.

    Courtesy of FORD MOTOR COMPANY

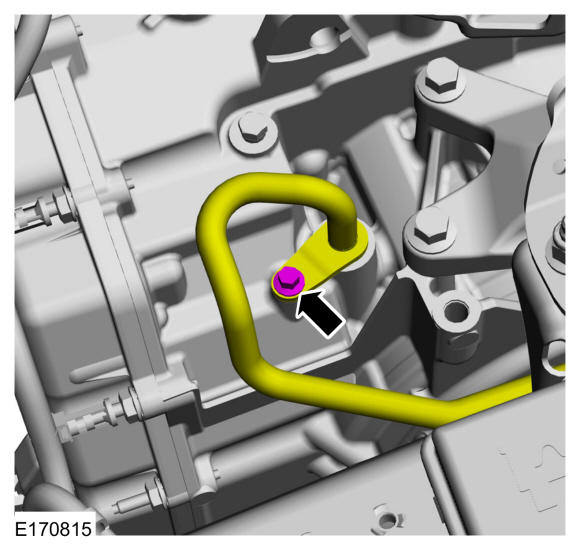

23. Remove the bolt and disconnect the transmission cooling tube.

    Courtesy of FORD MOTOR COMPANY

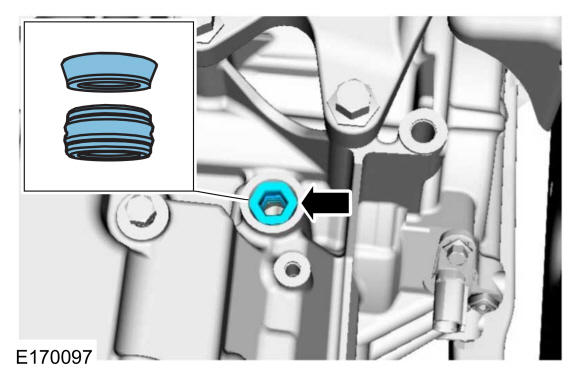

24. NOTE: Make sure that no component falls off during removal.

    Remove the seal and the backing ring.

    Courtesy of FORD MOTOR COMPANY

25. Remove the bolt and position aside the transmission cooling tube.

    Courtesy of FORD MOTOR COMPANY

26. NOTE: Make sure that no component falls off during removal.

    Remove the seal and the backing ring.

    Courtesy of FORD MOTOR COMPANY

27. Disconnect the coolant hose. Remove the nuts, bolt, stud and position aside the transmission fluid cooler.

    Courtesy of FORD MOTOR COMPANY

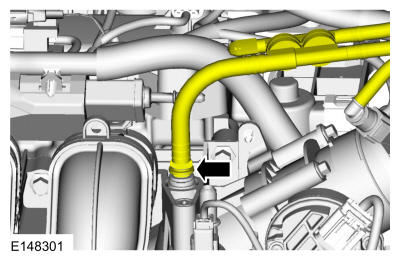

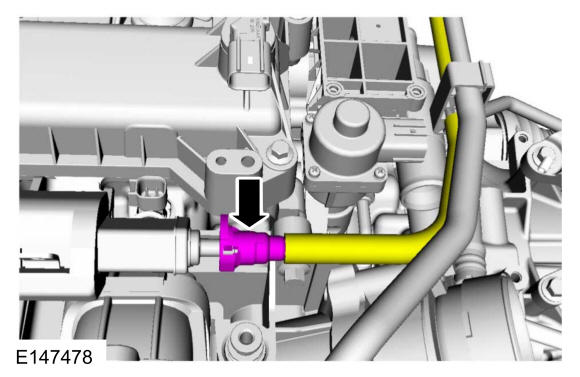

28. Disconnect the brake booster tube from the intake manifold.

    Courtesy of FORD MOTOR COMPANY

29. Disconnect the fuel vapor tube. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

30. NOTE: Be prepared to collect escaping fluid.

    Disconnect the fuel supply tube. Refer to: Spring Lock Couplings .

    Courtesy of FORD MOTOR COMPANY

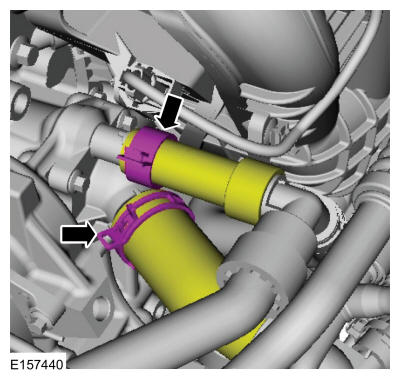

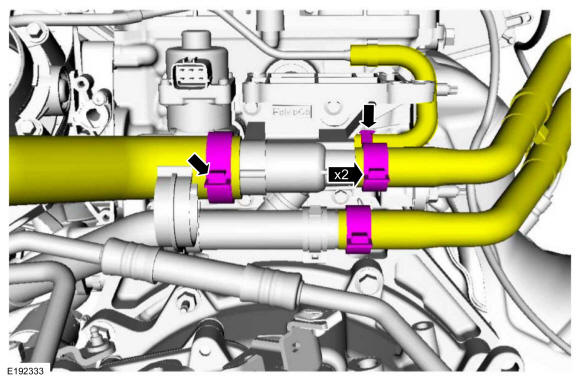

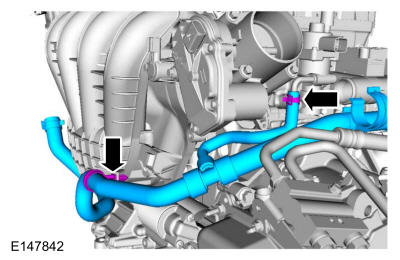

31. Disconnect the coolant hoses and the engine vent hose. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

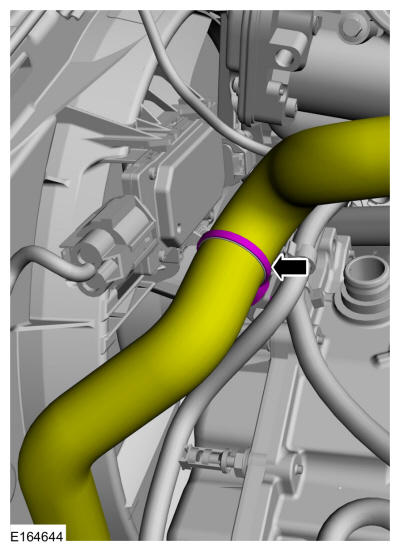

32. Disconnect the retainer and position aside the radiator coolant hose.

    Courtesy of FORD MOTOR COMPANY

33. If equipped, disconnect the block heater electrical connector.

    Courtesy of FORD MOTOR COMPANY

34. NOTE: Be prepared to collect escaping fluid.
    • Release the clamps and disconnect the lower radiator hose. Use the General Equipment: Hose Clamp Remover/Installer
    • Release the clamp and disconnect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

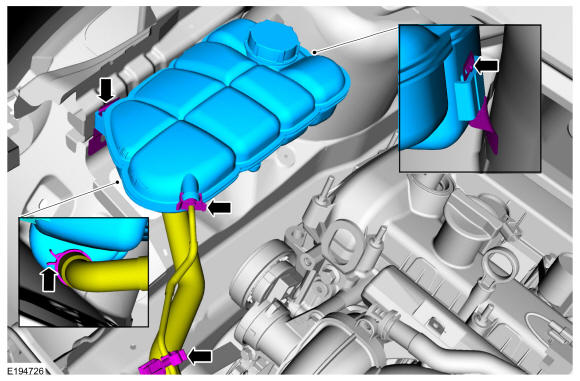

35. • Release the clamp, disconnect the lower and upper coolant hoses. Disconnect the hose retainer.
    • Remove the degas bottle. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

36. Remove the A/C compressor belt. Refer to: Air Conditioning (A/C) Compressor Belt .
37. Disconnect the A/C compressor electrical connector.

    Courtesy of FORD MOTOR COMPANY

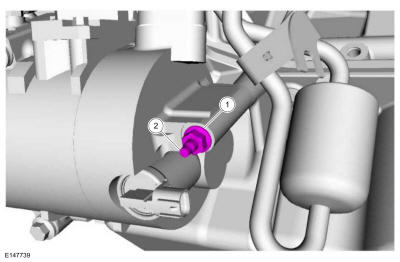

38. Remove the A/C compressor nut and stud.

    Courtesy of FORD MOTOR COMPANY

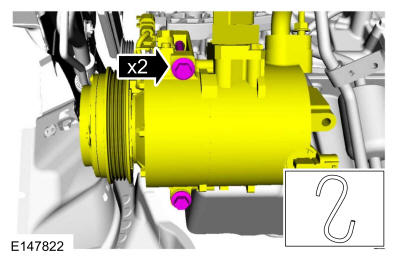

39. Remove the bolts and position aside the A/C compressor.

    Courtesy of FORD MOTOR COMPANY

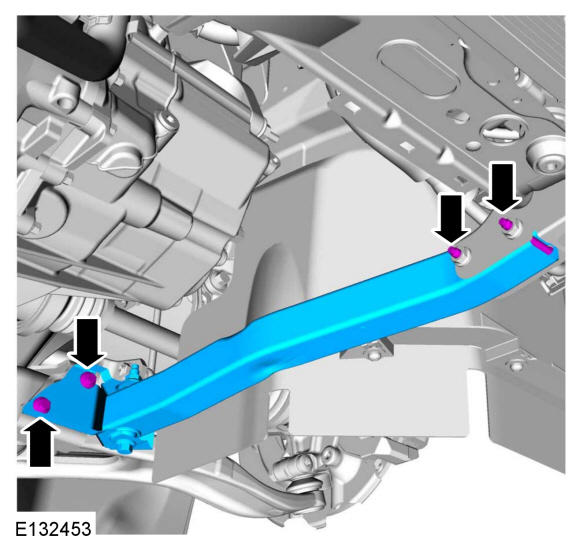

40. NOTE: LH shown, RH similar.

    Remove the bolts and the side frame supports.

    Courtesy of FORD MOTOR COMPANY

41. Remove the fender splash shield. Refer to: Fender Splash Shield .

    Vehicles without powertrain control module (PCM) security shield

42. Remove the retainers and the PCM housing cover.

    Courtesy of FORD MOTOR COMPANY

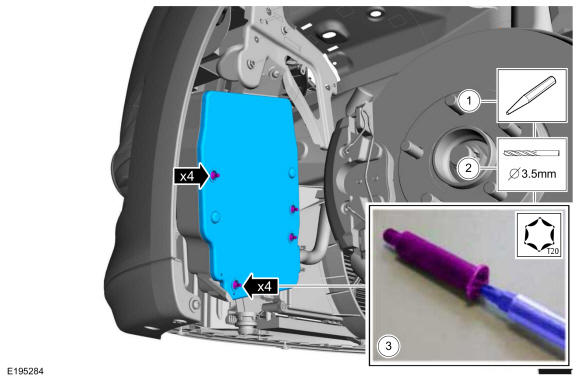

    Vehicles with powertrain control module (PCM) security shield

43. Remove the retainers and the PCM housing cover. Use the General Equipment: 3.5 mm Drill Bit Use the General Equipment: Center Punch

    Courtesy of FORD MOTOR COMPANY

    All vehicles

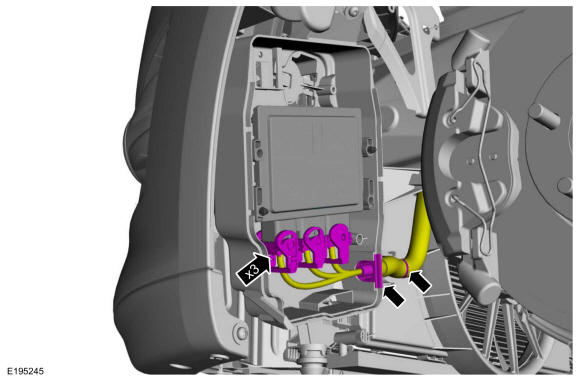

44. Disconnect the retainers and the PCM electrical connectors.

    Courtesy of FORD MOTOR COMPANY

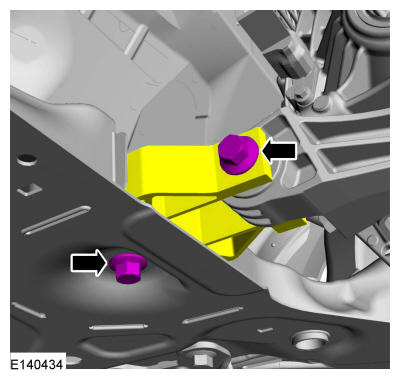

45. Remove the bolts and position aside the roll restrictor.

    Courtesy of FORD MOTOR COMPANY

46. Remove the bolts and the RH roll restrictor bracket.

    Courtesy of FORD MOTOR COMPANY

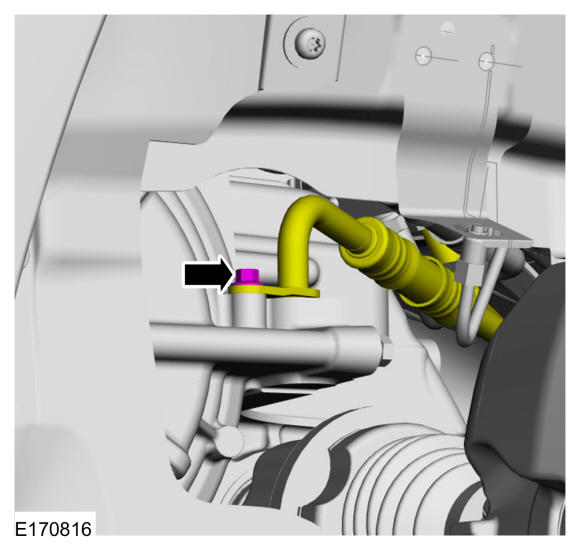

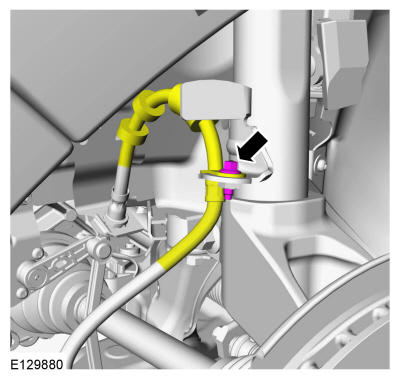

47. Remove the LH flexible brake hose bolt.

    Courtesy of FORD MOTOR COMPANY

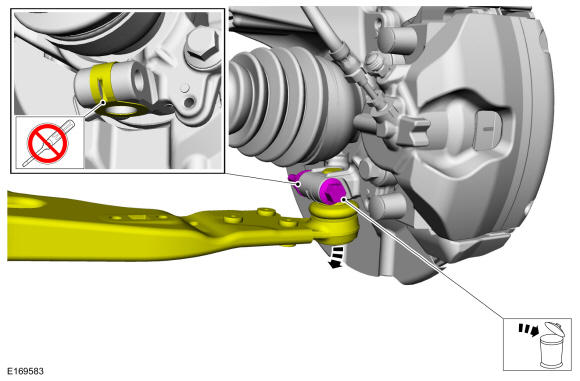

48. NOTE: Do not use a prying device to open the slot in the knuckle to separate the lower ball joint from the knuckle assembly. Damage to the knuckle assembly may occur.
    NOTE: Do not use a prying device or separator fork between the ball joint and the wheel knuckle. Damage to the ball joint or ball joint seal may result. Only use the pry bar by inserting it into the lower arm body opening.
    NOTE: Use care when releasing the lower arm and wheel knuckle into the resting position or damage to the ball joint seal may occur.

    Remove and discard the LH lower ball joint nut and bolt. Disconnect the LH lower arm and position aside the ball joint seal.

    Courtesy of FORD MOTOR COMPANY

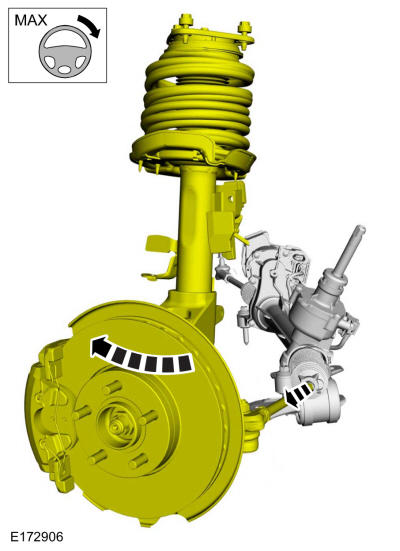

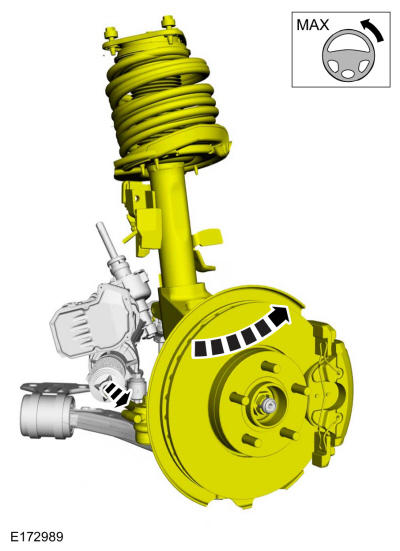

49. Rotate the steering wheel fully to the RH side.

    Courtesy of FORD MOTOR COMPANY

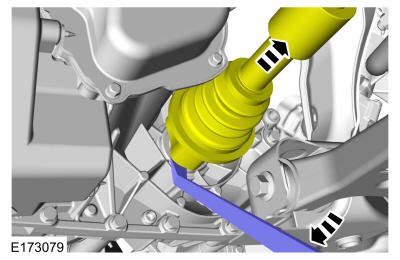

50. Using a pry bar, Separate the LH halfshaft from the transmission.

    Courtesy of FORD MOTOR COMPANY

51. NOTE: Make sure that the strut is not moved more than necessary to prevent damage to top mount.
    NOTE: The inner constant velocity (CV) joint must not be bent more than 18 °.
    NOTE: The outer constant velocity (CV) joint must not be bent more than 45 °.

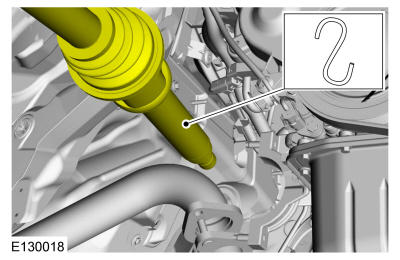

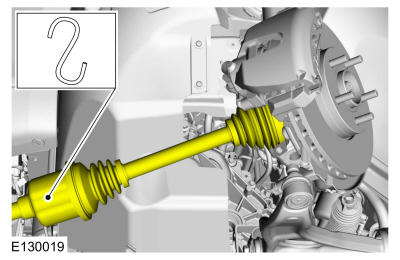

    Remove and support the LH halfshaft from the transmission.

    Courtesy of FORD MOTOR COMPANY

52. Remove and discard the LH halfshaft retaining circlip.

    Courtesy of FORD MOTOR COMPANY

53. NOTE: Do not use a hammer to separate the tie-rod end from the wheel knuckle or damage to the wheel knuckle can result.
    NOTE: Use care when installing the tie-rod end separator or damage to the outer tie-rod end boot may occur.

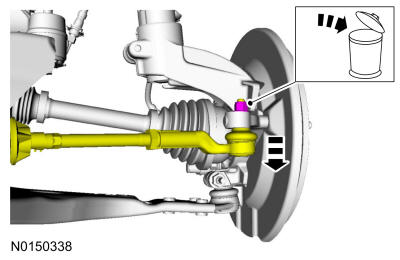

    Remove and discard the RH tie rod end nut and then detach the tie rod. Use the General Equipment: Tie Rod End Remover

    Courtesy of FORD MOTOR COMPANY

54. Remove the RH flexible brake hose bolt.

    Courtesy of FORD MOTOR COMPANY

55. NOTE: Do not use a prying device to open the slot in the knuckle to separate the lower ball joint from the knuckle assembly. Damage to the knuckle assembly may occur.
    NOTE: Do not use a prying device or separator fork between the ball joint and the wheel knuckle. Damage to the ball joint or ball joint seal may result. Only use the pry bar by inserting it into the lower arm body opening.
    NOTE: Use care when releasing the lower arm and wheel knuckle into the resting position or damage to the ball joint seal may occur.

    Remove and discard the RH lower ball joint nut and bolt. Disconnect the RH lower arm and position aside the ball joint seal.

    Courtesy of FORD MOTOR COMPANY

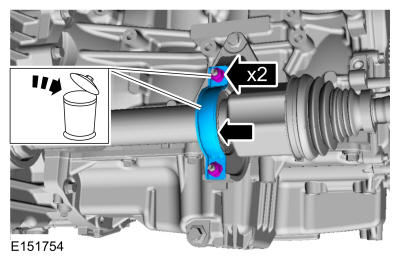

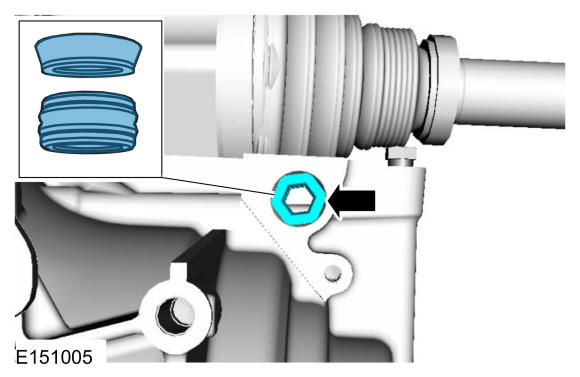

56. Remove and discard the halfshaft bearing retaining strap and nuts.

    Courtesy of FORD MOTOR COMPANY

57. Rotate the steering wheel fully to the LH side.

    Courtesy of FORD MOTOR COMPANY

58. NOTE: Make sure that the strut is not moved more than necessary to prevent damage to top mount.
    NOTE: The inner constant velocity (CV) joint must not be bent more than 18 °.
    NOTE: The outer constant velocity (CV) joint must not be bent more than 45 °.

    Remove and support the RH halfshaft from the transmission.

    Courtesy of FORD MOTOR COMPANY

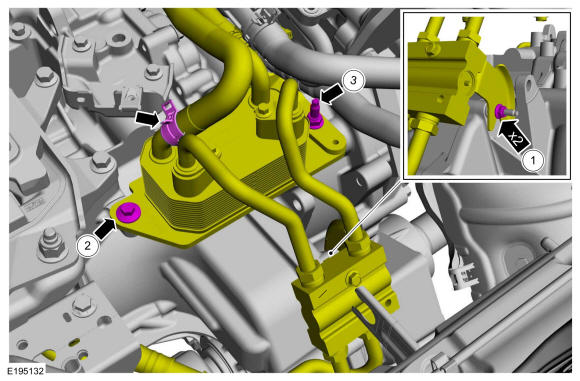

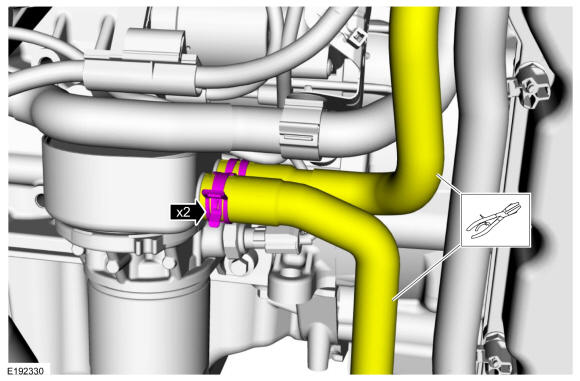

59. Disconnect the oil cooler hoses. Use the General Equipment: Hose Clamp(s) Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

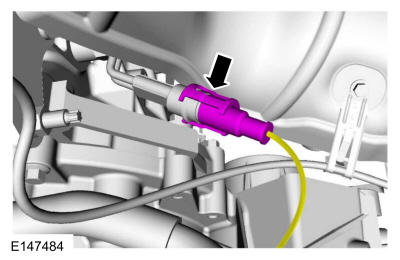

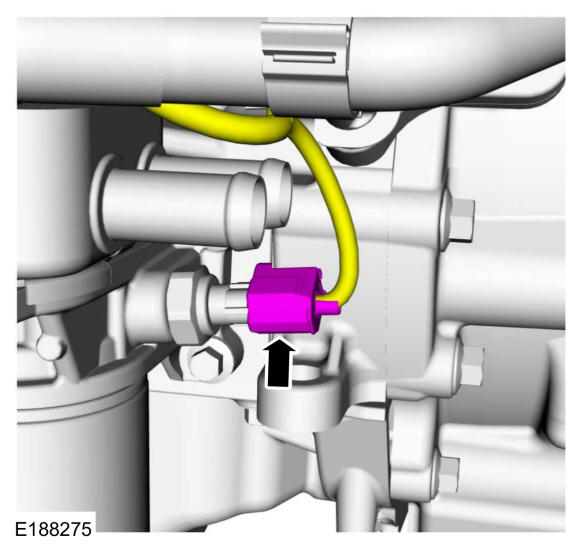

60. Disconnect the oil pressure switch.

    Courtesy of FORD MOTOR COMPANY

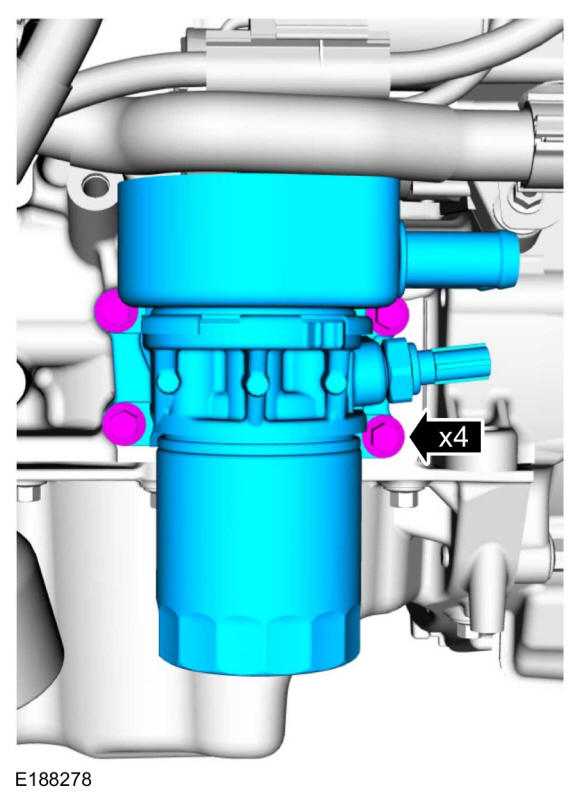

61. Remove the bolts and the oil filter assembly.

    Courtesy of FORD MOTOR COMPANY

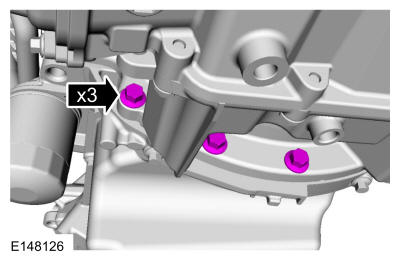

62. Remove the bolts.

    Courtesy of FORD MOTOR COMPANY

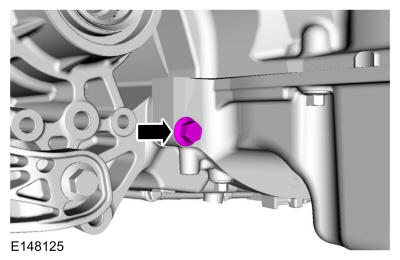

63. Remove the bolt.

    Courtesy of FORD MOTOR COMPANY

64. WARNING: Make sure that the engine and transmission assembly is on wooden blocks and secured with suitable retaining straps.

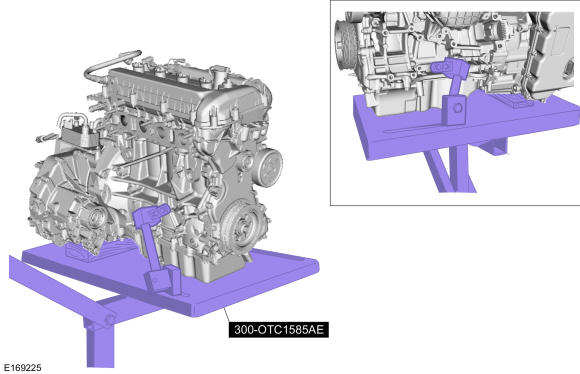

    Position the engine on the table. Install the General Equipment: Mounting Table Set

    Courtesy of FORD MOTOR COMPANY

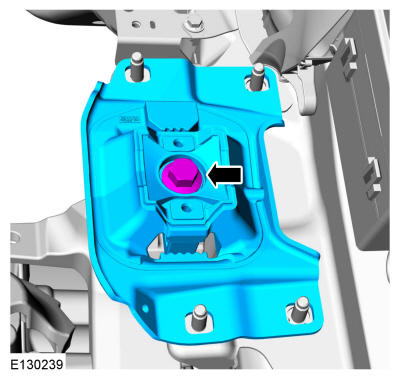

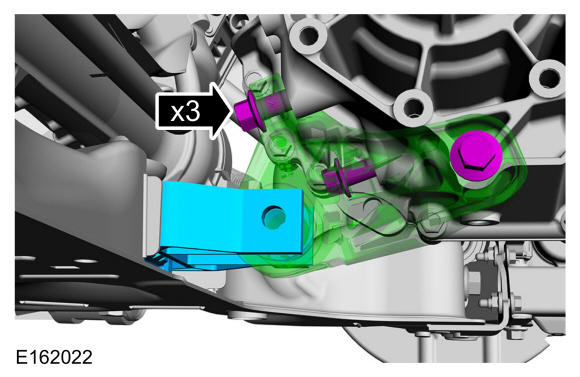

65. Remove the bolt and the transmission support insulator.

    Courtesy of FORD MOTOR COMPANY

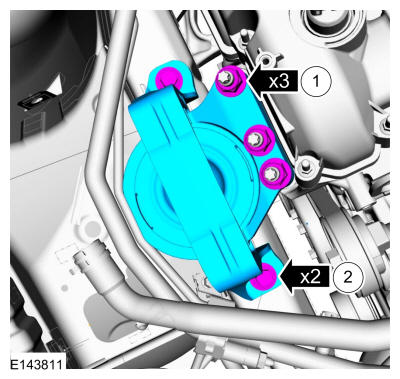

66. NOTE: Note the position of the component before removal.

    Remove the bolts, nuts and engine mount.

    Courtesy of FORD MOTOR COMPANY

67. Raise the vehicle.

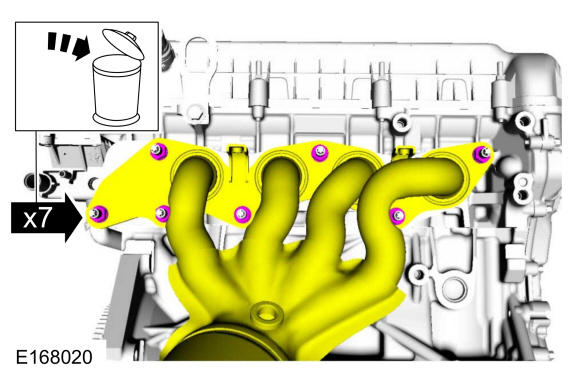

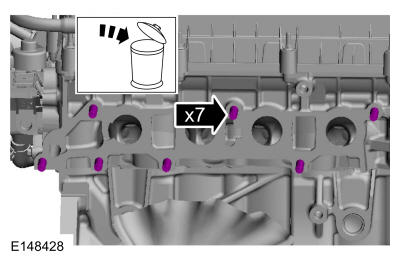

68. Remove and discard the exhaust manifold studs.

    Courtesy of FORD MOTOR COMPANY

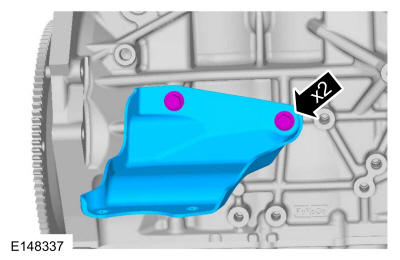

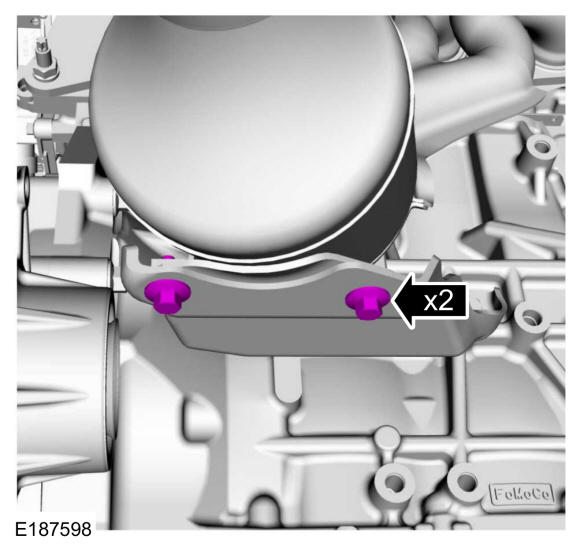

69. Remove the bolts and exhaust manifold bracket.

    Courtesy of FORD MOTOR COMPANY

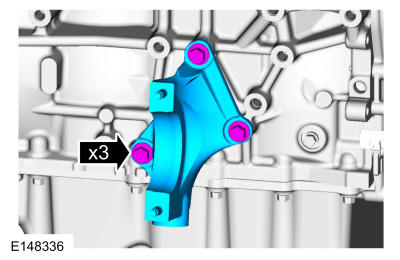

70. Remove the bolts and the front axle shaft bearing bracket.

    Courtesy of FORD MOTOR COMPANY

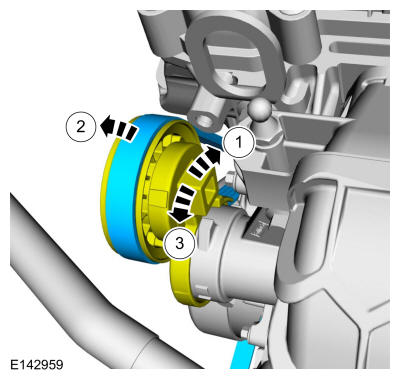

71. 1. Rotate the accessory drive belt tensioner counter clockwise.
    2. Remove the accessory drive belt.
    3. Release the accessory drive belt tensioner.

    Courtesy of FORD MOTOR COMPANY

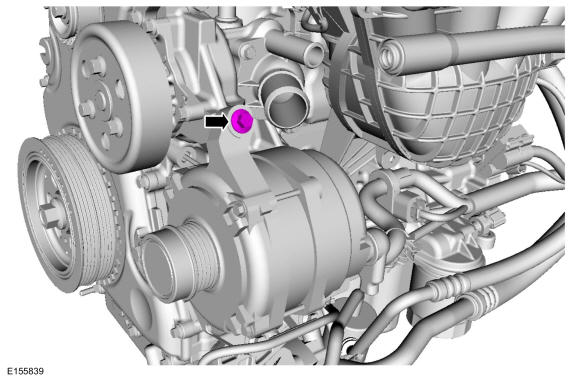

72. Remove the bolt.

    Courtesy of FORD MOTOR COMPANY

73. Disconnect the wire retainer. Remove the nut and disconnect the generator electrical connectors.

    Courtesy of FORD MOTOR COMPANY

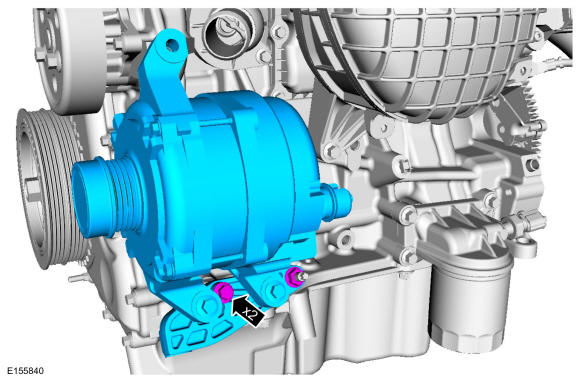

74. Remove the bracket bolt, nut and the generator.

    Courtesy of FORD MOTOR COMPANY

75. Disconnect the EGR valve coolant hose. Disconnect the hose retainer and remove the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

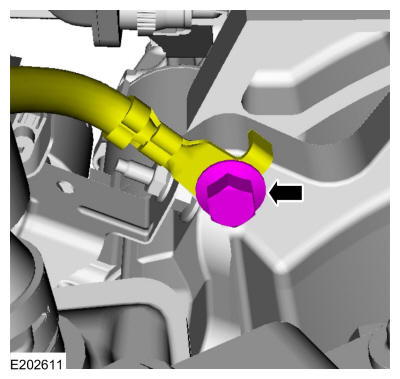

76. Remove the bolt and the ground cable.

    Courtesy of FORD MOTOR COMPANY

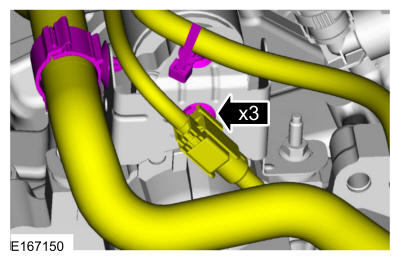

77. Disconnect the wire harness retainers and the coolant hose retainer.

    Courtesy of FORD MOTOR COMPANY

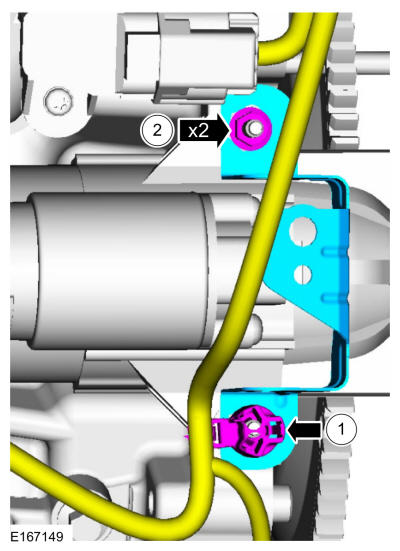

78. 1. Disconnect the engine wire harness and position it aside.
    2. Remove the nuts and the starter motor bracket.

    Courtesy of FORD MOTOR COMPANY

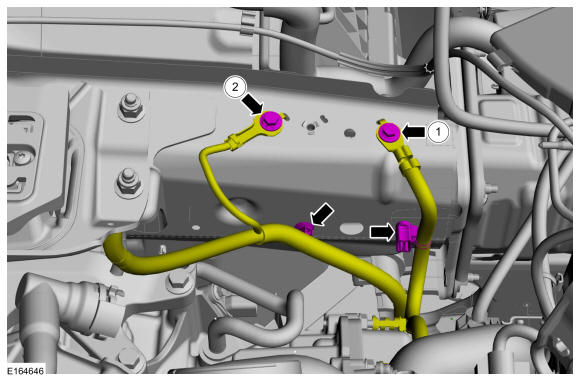

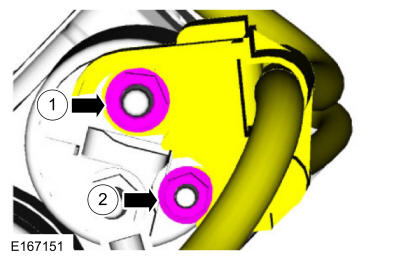

79. 1. Remove the starter motor cable nut.
    2. Remove the starter motor control wire nut and position aside the wiring.

    Courtesy of FORD MOTOR COMPANY

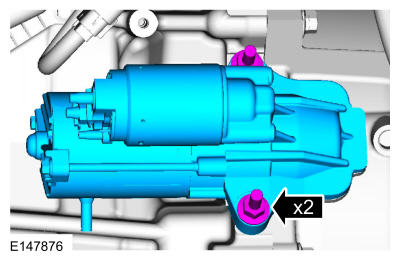

80. Remove the stud bolts and the starter motor.

    Courtesy of FORD MOTOR COMPANY

81. Remove the starter motor insulator.

    Courtesy of FORD MOTOR COMPANY

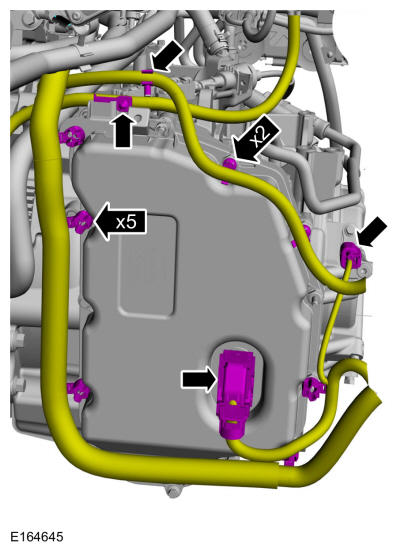

82. NOTE: Make sure that the component terminals are not bent or damaged.

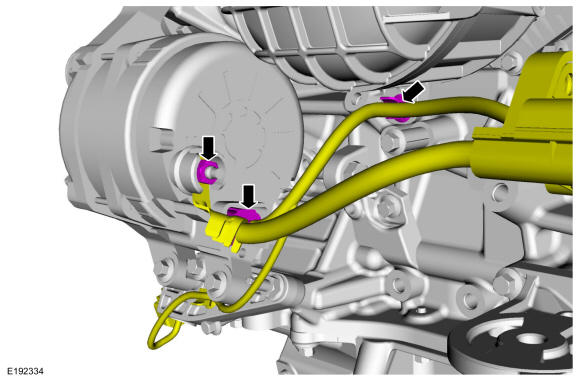

    Disconnect the wiring harness retainers and disconnect the transmission electrical connectors.

    Courtesy of FORD MOTOR COMPANY

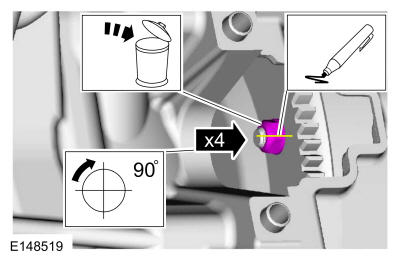

83. NOTE: Only rotate the crankshaft in a clockwise direction.
    NOTE: Note the position of the component before removal.

    Index-mark the torque converter nuts. Remove and discard the torque converter nuts. Use the General Equipment: Magnetic Socket

    Courtesy of FORD MOTOR COMPANY

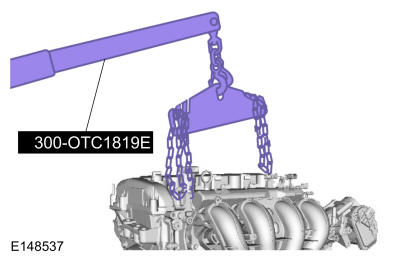

84. Install the engine floor crane. Install Special Service Tool: 300-OTC1819E 2, 200# Floor Crane, Fold Away. Install the General Equipment: Lifting Bracket

    Courtesy of FORD MOTOR COMPANY

85. Remove the engine from the table.

    Courtesy of FORD MOTOR COMPANY

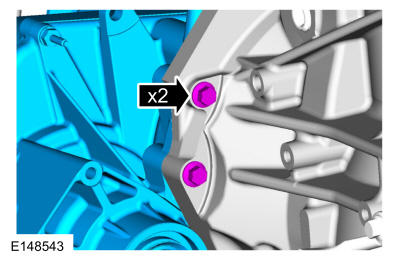

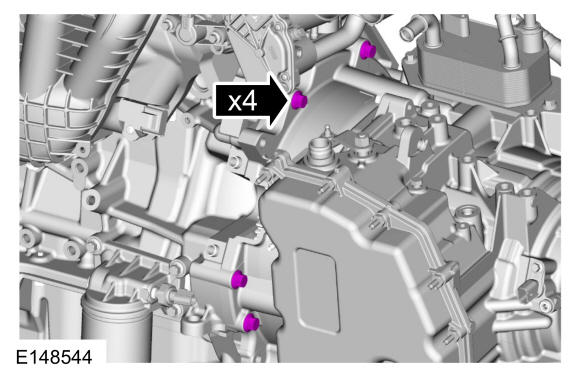

86. Remove the transmission-to-engine bolts.

    Courtesy of FORD MOTOR COMPANY

87. Remove the transmission-to-engine bolts and remove the engine from the transmission.

    Courtesy of FORD MOTOR COMPANY

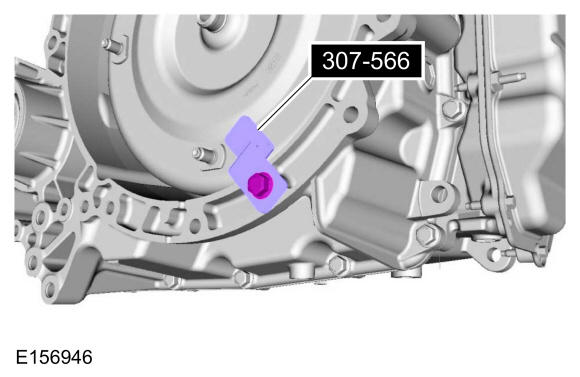

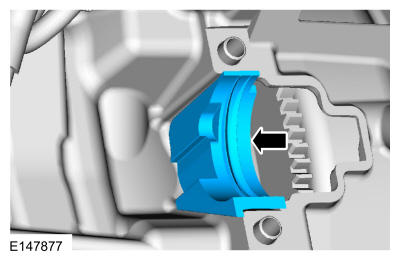

88. Install the special tool. Use Special Service Tool: 307-566 Retainer, Torque Converter.

Courtesy of FORD MOTOR COMPANY
