Intake Manifold: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Jacking and Lifting - Overview .
  2. Refer to: Air Cleaner .
  3. Disconnect the tube from the intake manifold.
    GFD214397Courtesy of FORD MOTOR COMPANY
  4. Disconnect the fuel vapor tube. Refer to: Quick Release Coupling .
    GFD214398Courtesy of FORD MOTOR COMPANY
  5. Disconnect the electrical connectors.
    GFD214399Courtesy of FORD MOTOR COMPANY
  6. Disconnect the electrical connector and wire retainers.
    GFD214400Courtesy of FORD MOTOR COMPANY
  7. Disconnect the electrical connector from the intake manifold. Disconnect the electrical connector and wire retainers.
    GFD214401Courtesy of FORD MOTOR COMPANY
  8. Disconnect the harness retainer.
    GFD214402Courtesy of FORD MOTOR COMPANY
  9. If equipped, remove the screws and the splash shield.
    GFD214403Courtesy of FORD MOTOR COMPANY

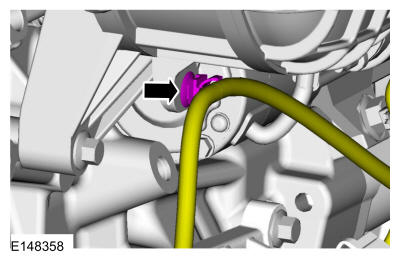

  10. Disconnect the wire retainer.
    GFD214404Courtesy of FORD MOTOR COMPANY

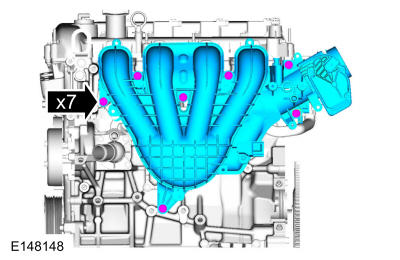

  11. Remove the bolts and position out the intake manifold.
    GFD214405Courtesy of FORD MOTOR COMPANY
  12. Squeeze the 2 crankcase vent oil separator tube tabs and disconnect the tube from the intake manifold.
GFD214406Courtesy of FORD MOTOR COMPANY
