Cylinder Head: Removal

NOTE: Removal steps in this procedure may contain installation details.

Refer to: Health and Safety Precautions .
Release the fuel system pressure. Refer to: Fuel System Pressure Release .
Remove the cowl panel. Refer to: Cowl Panel .
Drain the cooling system. Refer to: Cooling System Draining, Vacuum Filling and Bleeding .
Drain the engine oil. Use the General Equipment: Oil Drain Equipment
Torque: 21 lb.ft (28 Nm)

Courtesy of FORD MOTOR COMPANY
Remove and discard the engine oil filter. Use the General Equipment: Oil Drain Equipment

Courtesy of FORD MOTOR COMPANY
Remove the HO2S. Refer to: Heated Oxygen Sensor (HO2S) .

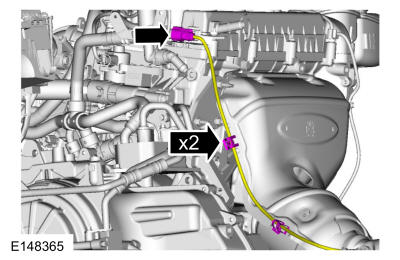

Disconnect the Catalyst Monitor Sensor (CMS) electrical connector and wire retainers.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and position aside the exhaust manifold heat shield.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

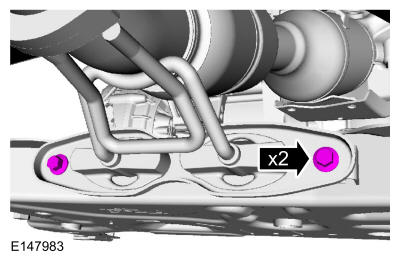

Remove the bolts for the exhaust manifold bracket.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the exhaust flexible pipe is not forcibly bent or twisted.

Support the exhaust flex connector. Install the General Equipment: Cable Ties

Courtesy of FORD MOTOR COMPANY
Remove and discard the nuts. Position back the exhaust system and support as needed.

Courtesy of FORD MOTOR COMPANY
Remove and discard the exhaust system gasket.

Courtesy of FORD MOTOR COMPANY
Remove the bolts for the exhaust manifold.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Remove and discard the nuts. Position back the exhaust manifold.

Courtesy of FORD MOTOR COMPANY
Remove and discard the exhaust manifold gasket.

Courtesy of FORD MOTOR COMPANY

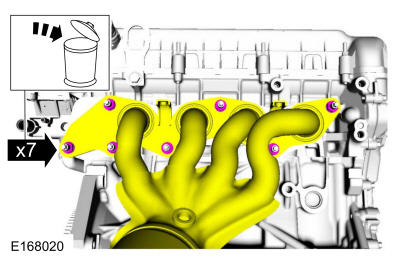

Remove and discard the exhaust manifold studs.

Courtesy of FORD MOTOR COMPANY
Disconnect the EGR electrical connector.

Courtesy of FORD MOTOR COMPANY
Position aside the coolant hose clip.

Courtesy of FORD MOTOR COMPANY

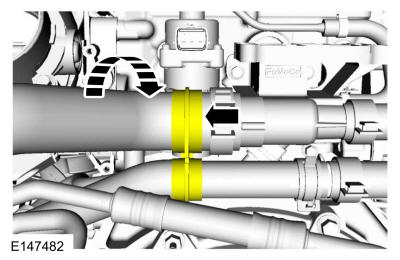

Disconnect the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY

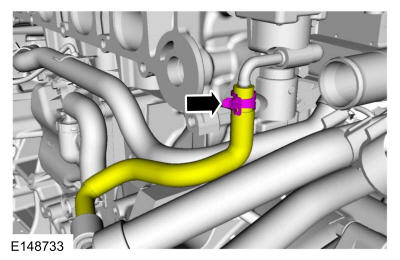

Disconnect the EGR valve coolant hose. Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY

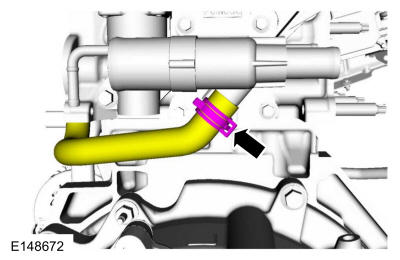

Disconnect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY
Remove the following items:
1. Remove the intake manifold. Refer to: Intake Manifold .
2. Remove the fuel rail. Refer to: Fuel Rail .
3. Remove the camshafts. Refer to: Camshafts .
NOTE: If the camshafts and valve tappets are to be reused, mark the location of the valve tappets to make sure they are assembled in their original positions.

NOTE: The number on the valve tappets only reflects the digits that follow the decimal. For example, a tappet with the number 0.650 has the thickness of 3.650 mm.

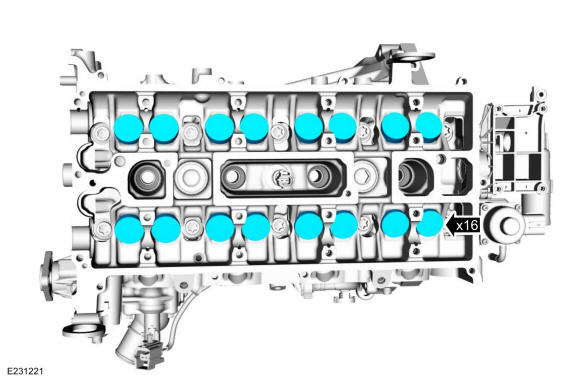

Remove the valve tappets.

Courtesy of FORD MOTOR COMPANY
Inspect the valve tappets.

Courtesy of FORD MOTOR COMPANY
Remove the EGR tube.
Torque: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY

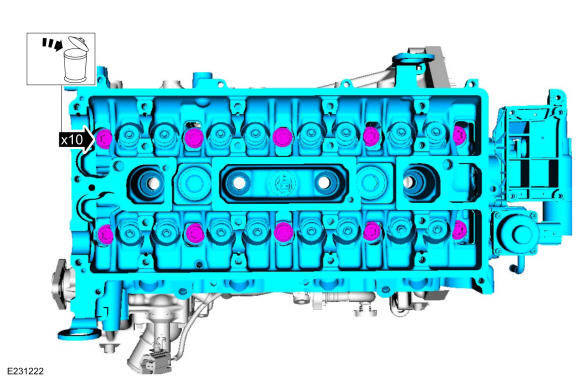

Remove the bolts and the cylinder head. Discard the bolts.

Courtesy of FORD MOTOR COMPANY
Remove and discard the cylinder head gasket.

GFD214512

Courtesy of FORD MOTOR COMPANY
