Rear Muffler: Installation

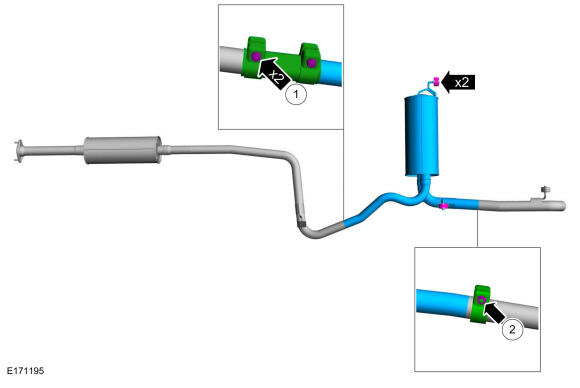

    1. Install the muffler and attach the exhaust hanger isolators.

      Torque: 35 lb.ft (48 Nm)

    2. Tighten the clamps.

      Torque: 41 lb.ft (55 Nm)

GFD215547Courtesy of FORD MOTOR COMPANY
