Front Muffler: Removal

  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

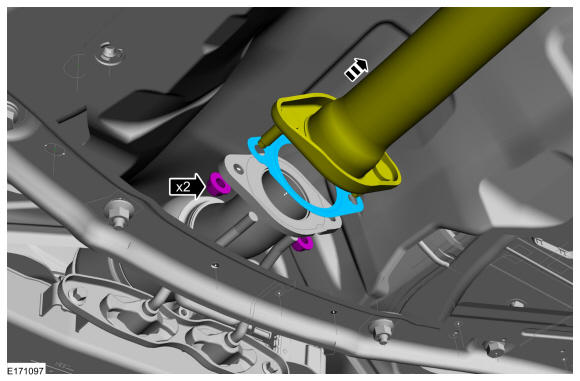

    • Remove and discard the nuts.

    • Position aside the muffler and tailpipe and discard the gasket.

    GFD215541Courtesy of FORD MOTOR COMPANY
  2. If equipped. Remove the bolts and the center support brace.
    GFD215542Courtesy of FORD MOTOR COMPANY
  3. Carefully cut the muffler and tailpipe, detach the exhaust hanger isolator and remove the front muffler pipe. Use the General Equipment: Air Body Saw
GFD215543Courtesy of FORD MOTOR COMPANY
