Transit Connect XL, Van Cargo
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams
>>
Horn/Cigar Lighter
Horn/Cigar Lighter

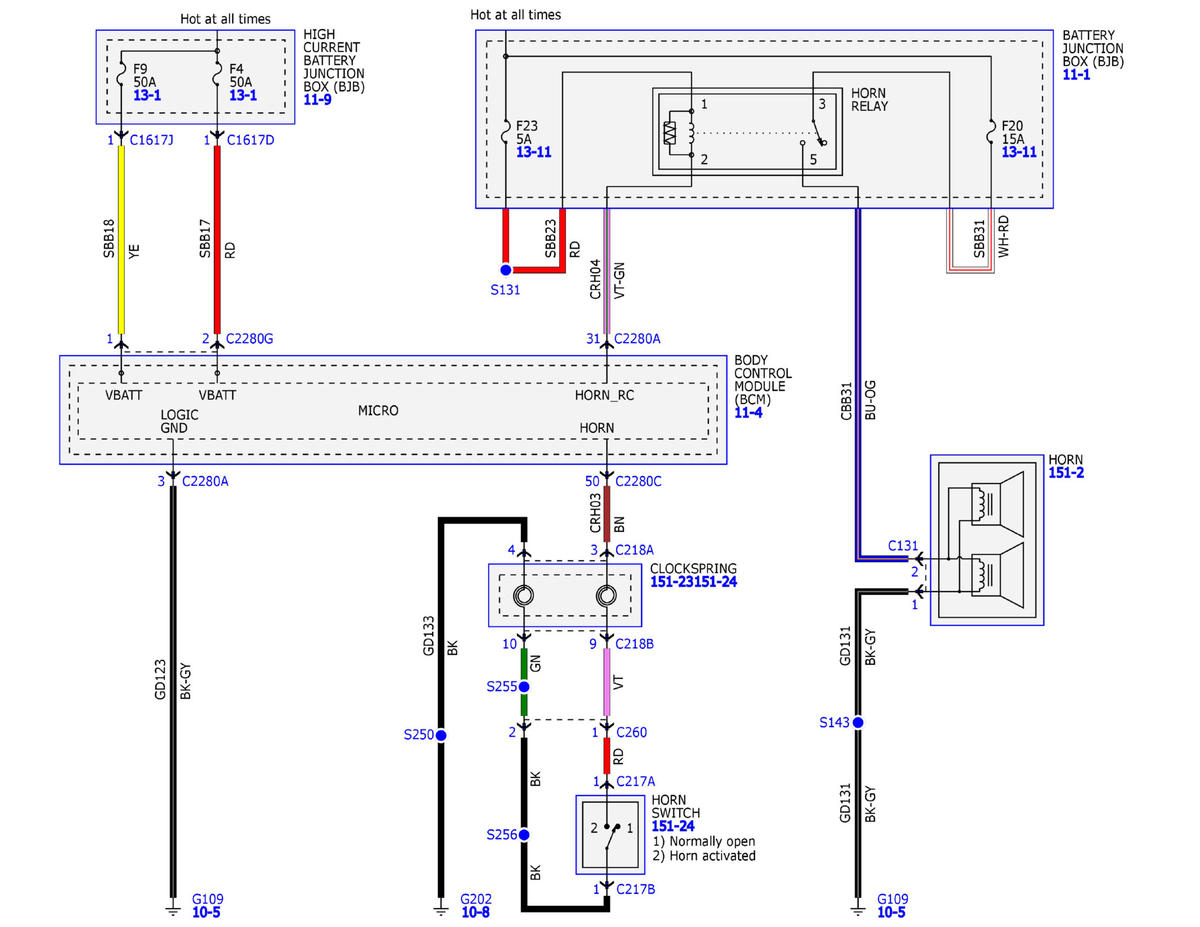

Fig 1: Horn/Cigar Lighter Wiring Diagram (1 of 2)
Courtesy of FORD MOTOR COMPANY
Fig 2: Horn/Cigar Lighter Wiring Diagram (2 of 2)
Courtesy of FORD MOTOR COMPANY
