OEM Wiring Diagrams: Headlamps/AUTOLAMPS

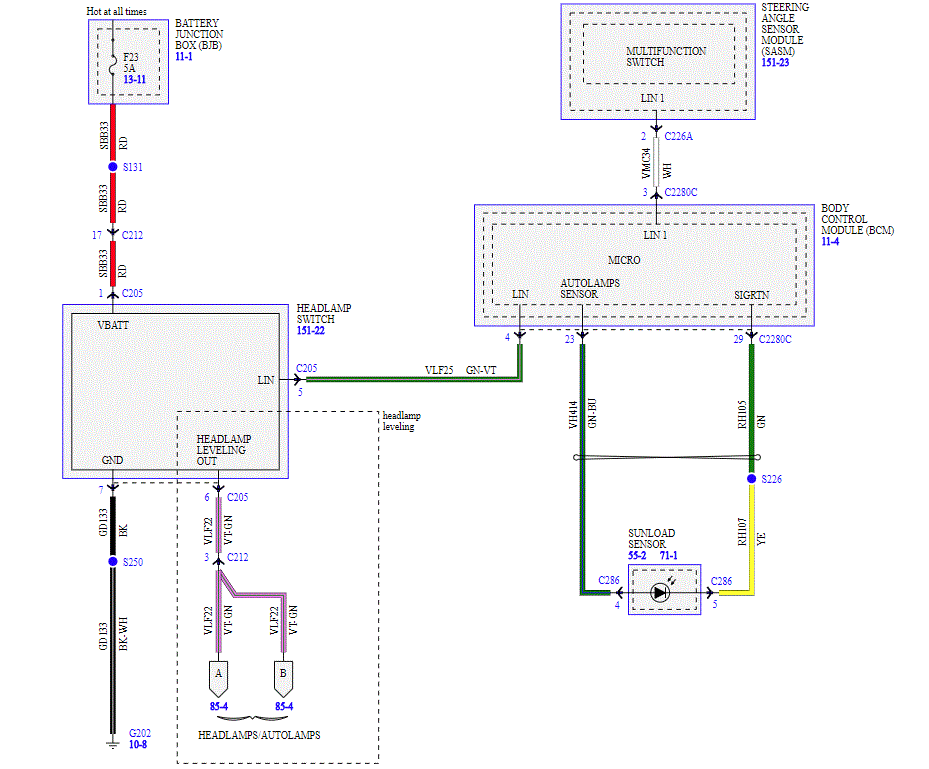

Fig 1: Headlamps/Autolamps Wiring Diagram (1 of 4)
GFDW86631Courtesy of FORD MOTOR COMPANY

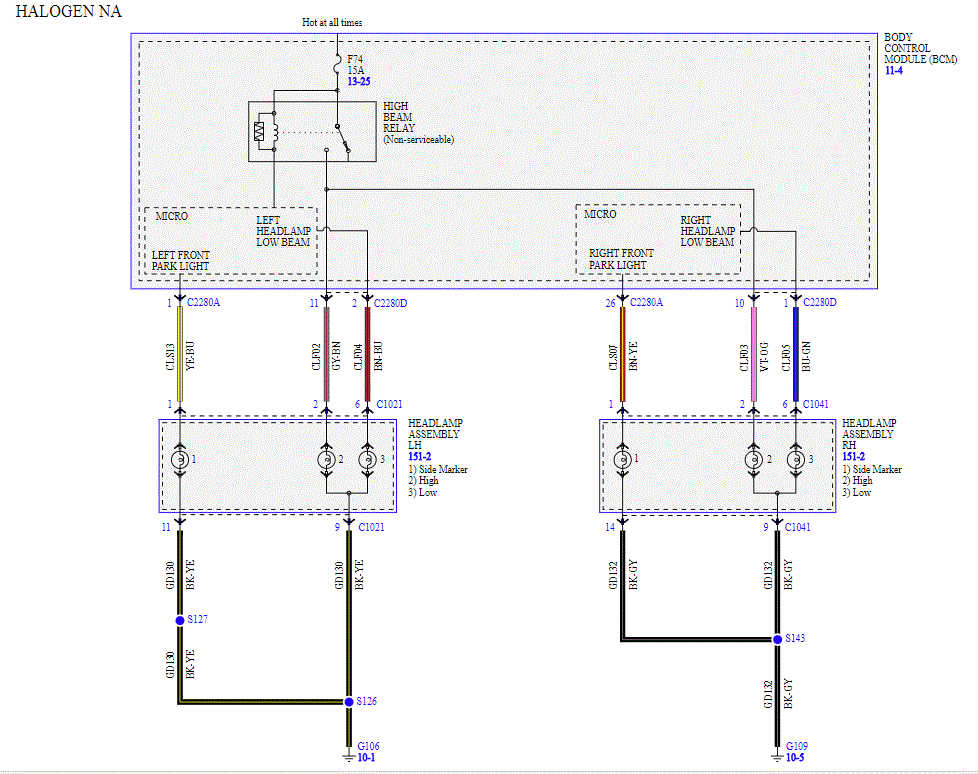

Fig 2: Headlamps/Autolamps Wiring Diagram (2 of 4)
GFDW86632Courtesy of FORD MOTOR COMPANY

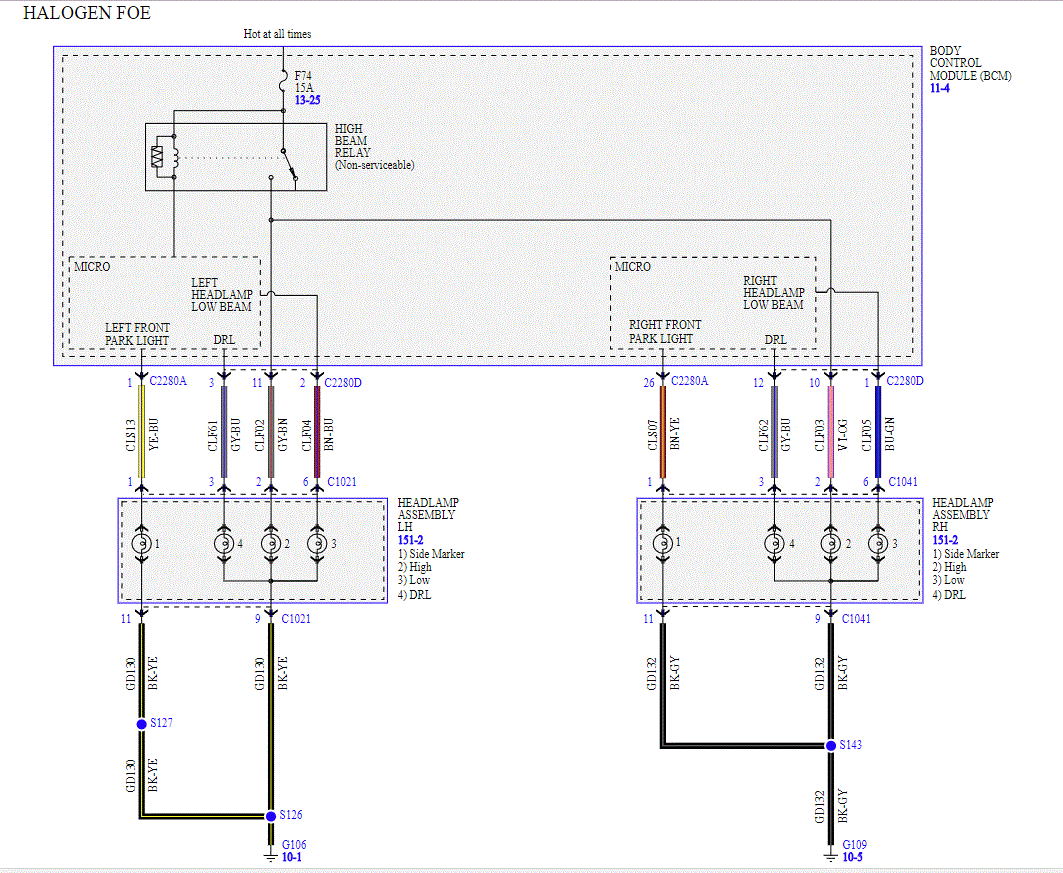

Fig 3: Headlamps/Autolamps Wiring Diagram (3 of 4)
GFDW86633Courtesy of FORD MOTOR COMPANY

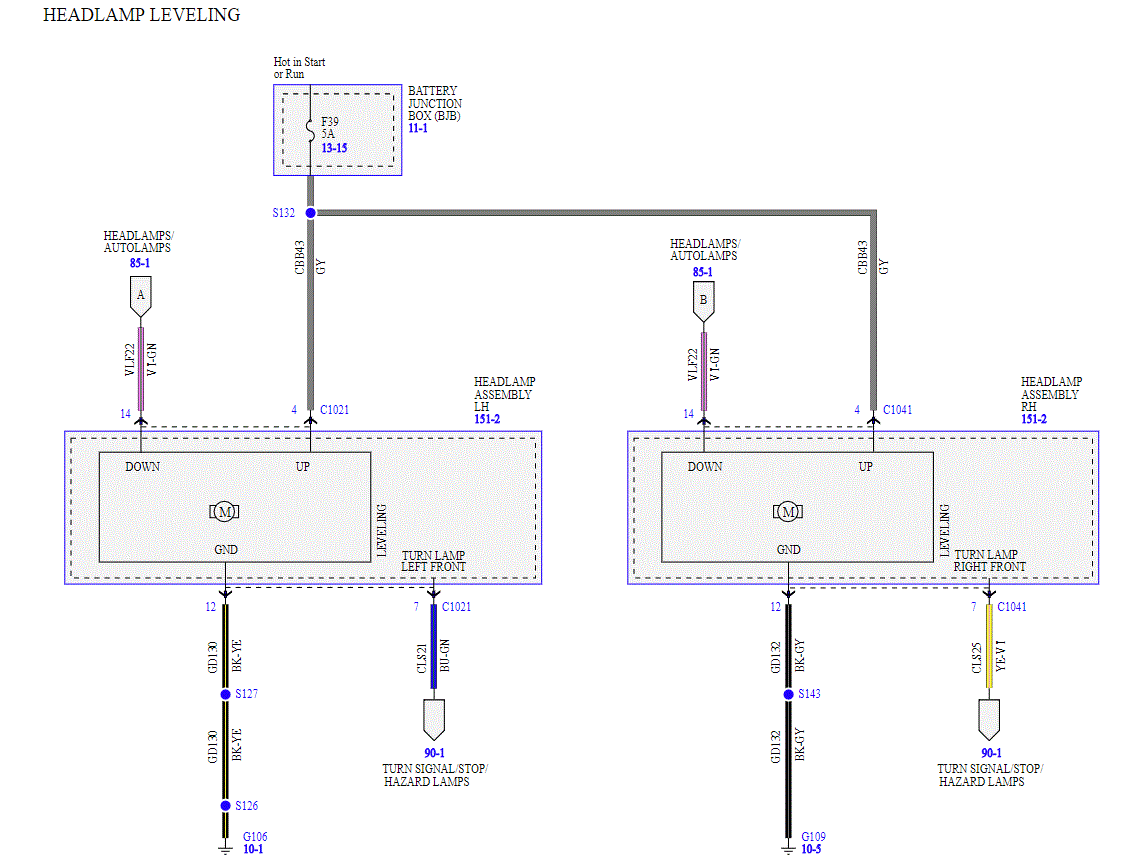

Fig 4: Headlamps/Autolamps Wiring Diagram (4 of 4)
GFDW86634Courtesy of FORD MOTOR COMPANY
