Electronic Engine Controls - 1.6L GTDI Sigma

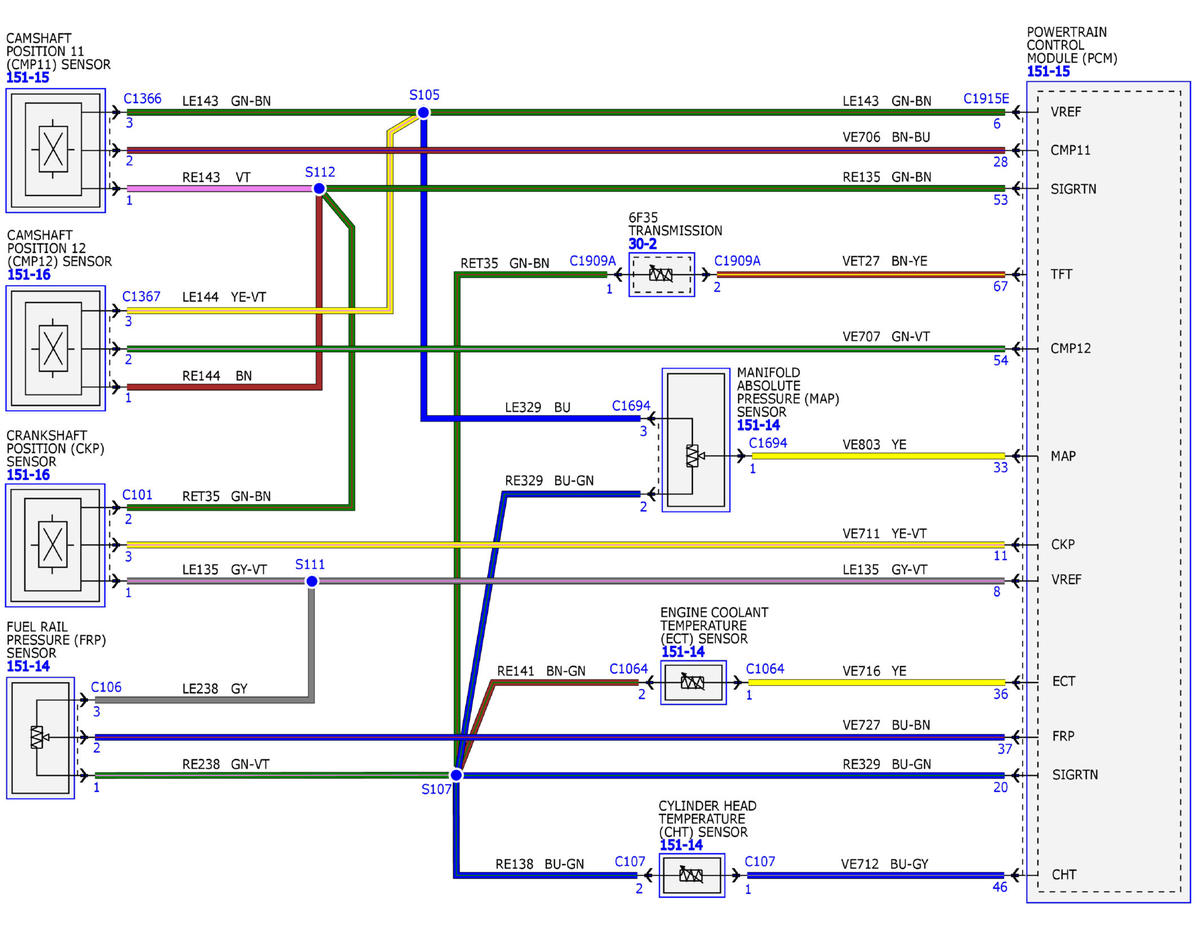

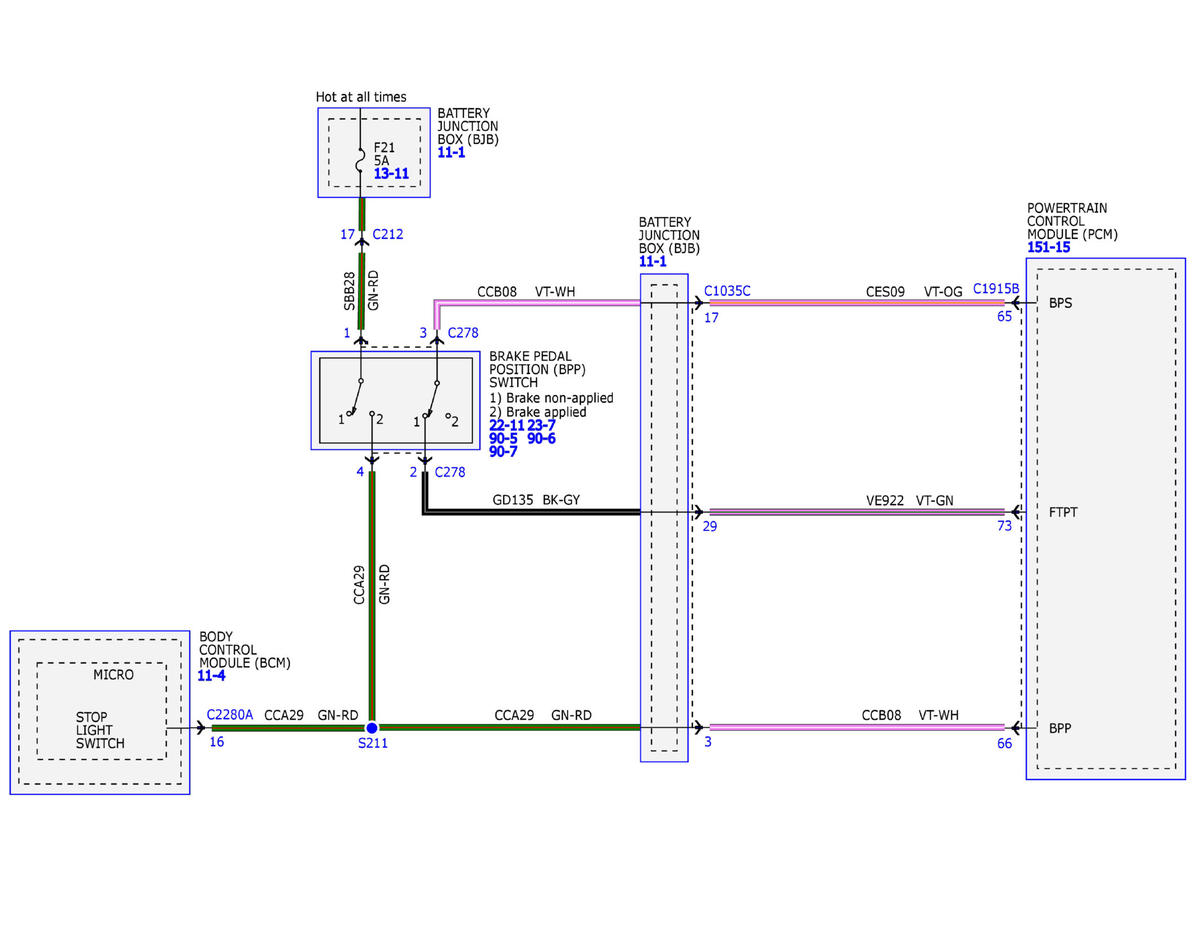

Fig 1: Electronic Engine Controls - 1.6L GTDI Sigma Wiring Diagram (1 of 12)

Courtesy of FORD MOTOR COMPANY

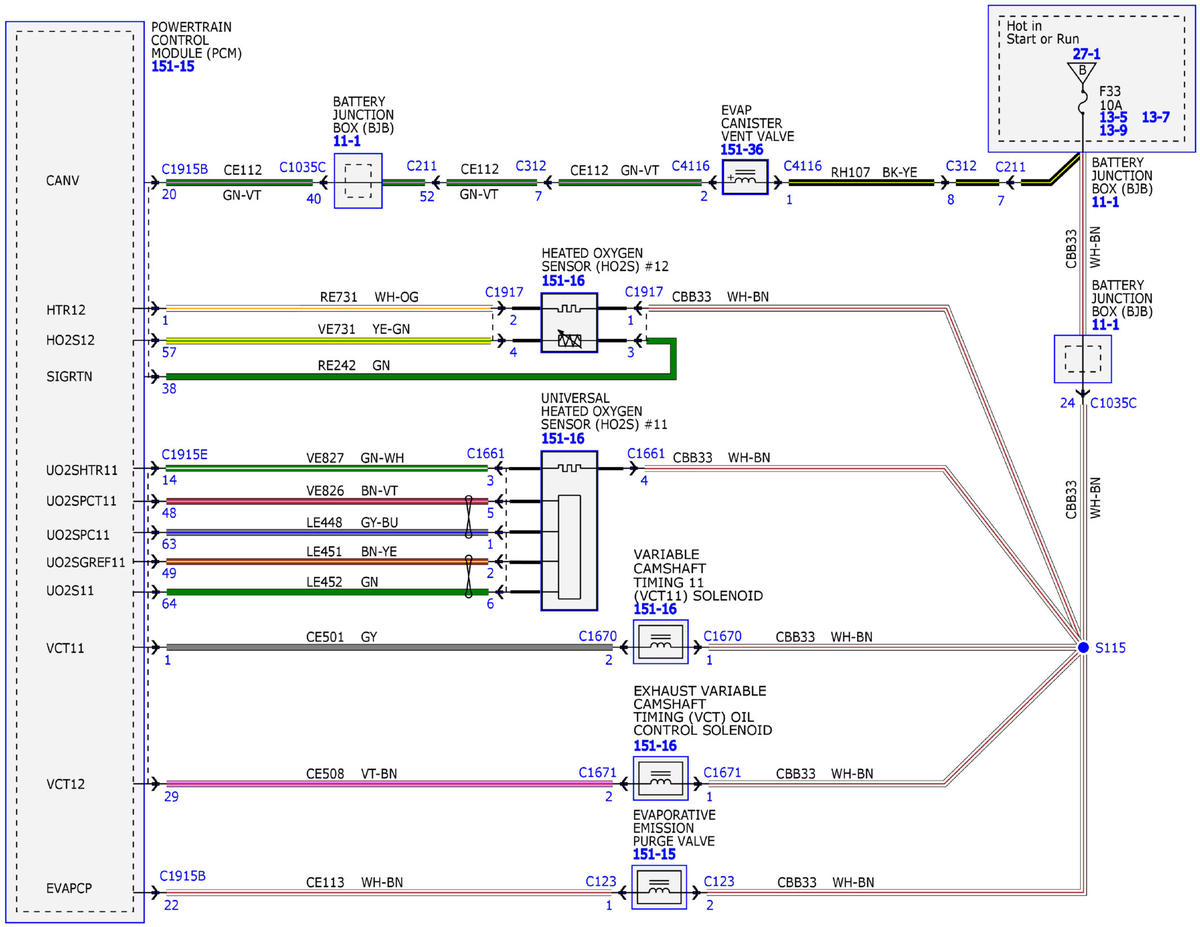

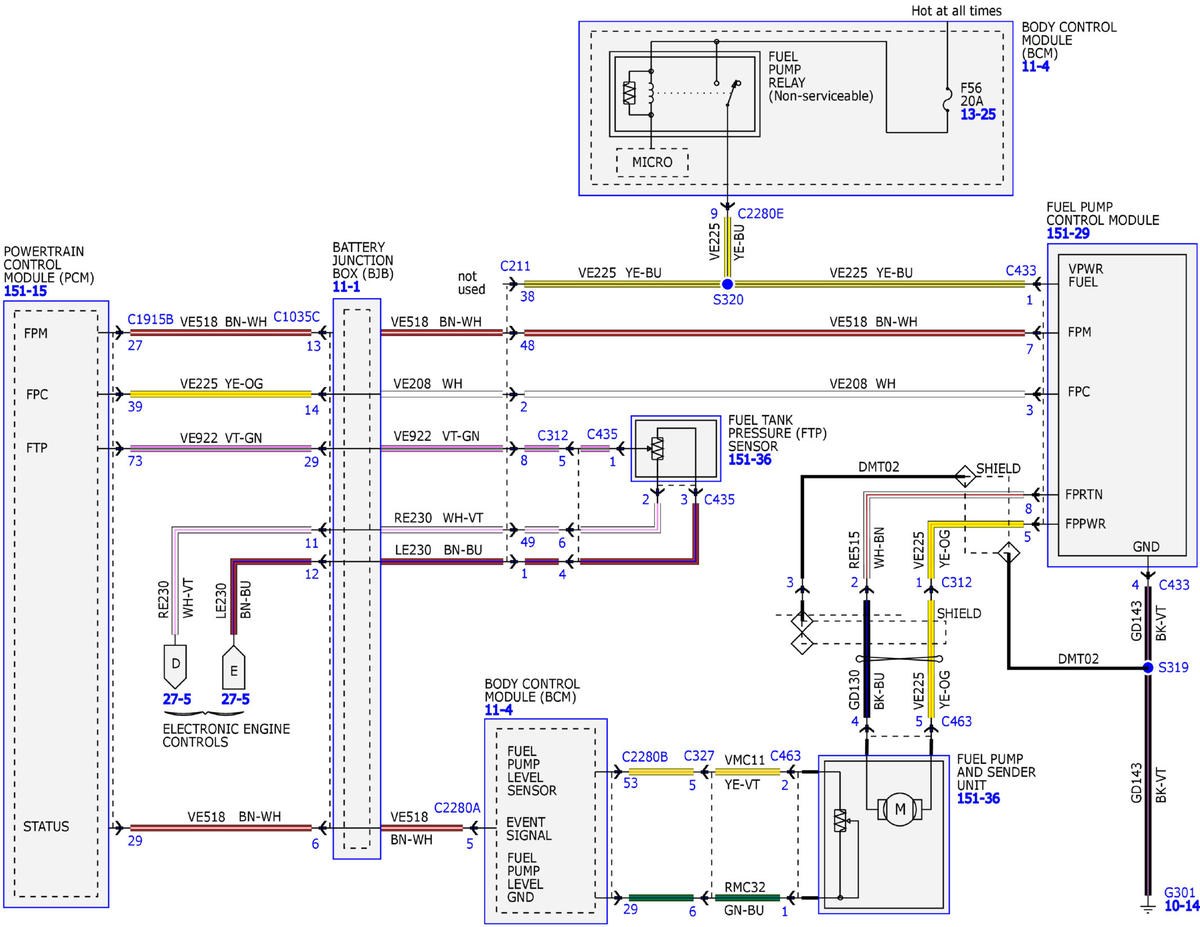

Fig 2: Electronic Engine Controls - 1.6L GTDI Sigma Wiring Diagram (2 of 12)

Courtesy of FORD MOTOR COMPANY

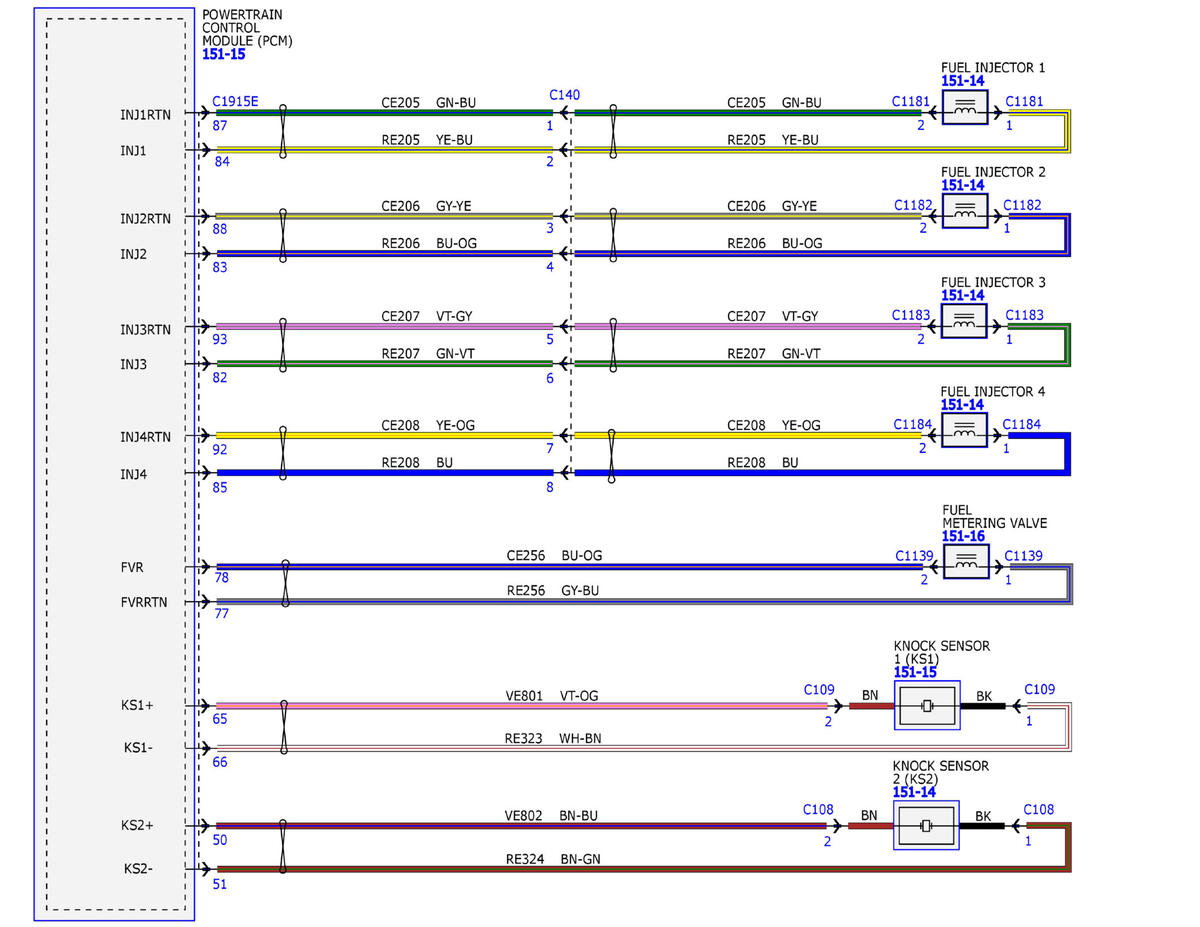

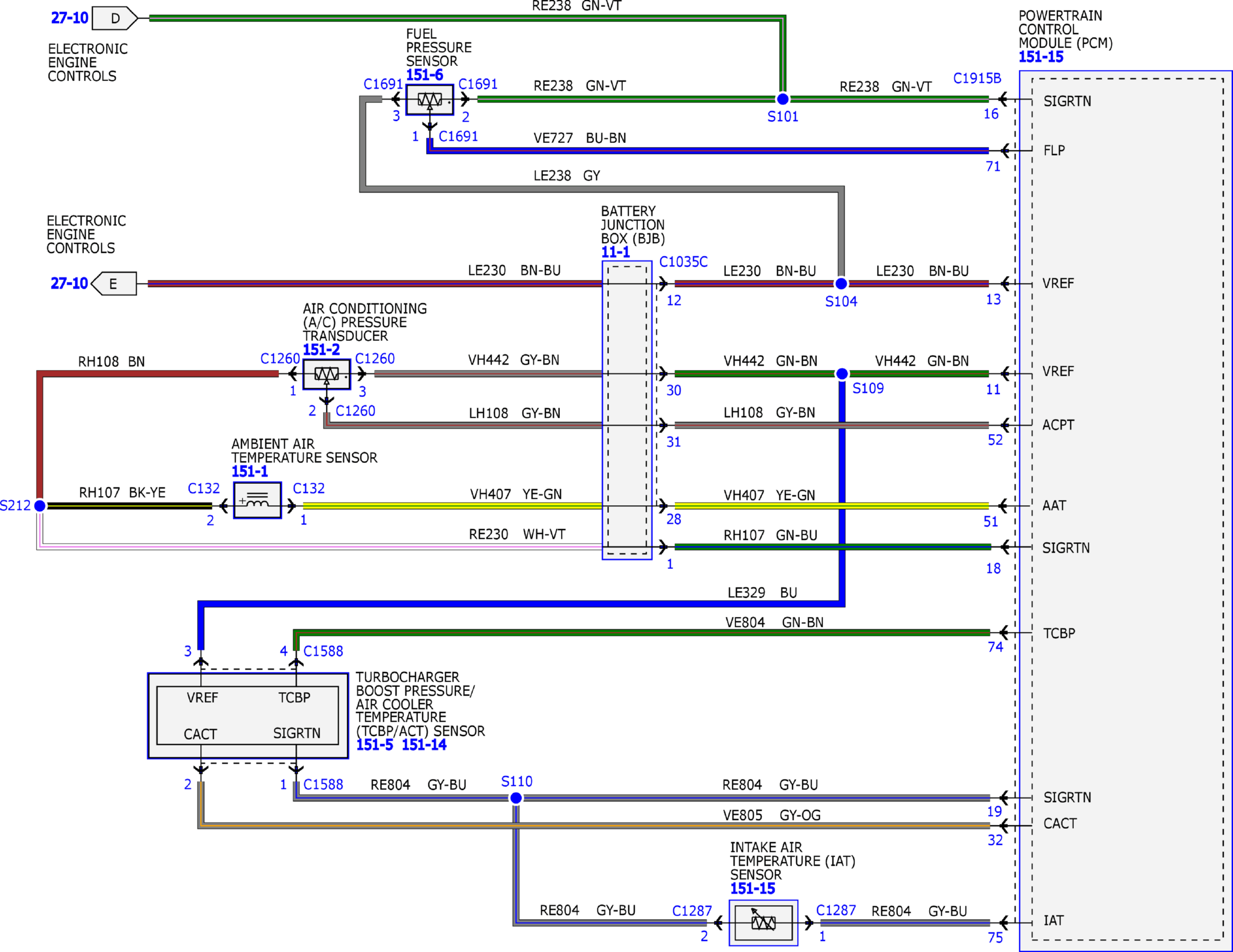

Fig 3: Electronic Engine Controls - 1.6L GTDI Sigma Wiring Diagram (3 of 12)

Courtesy of FORD MOTOR COMPANY

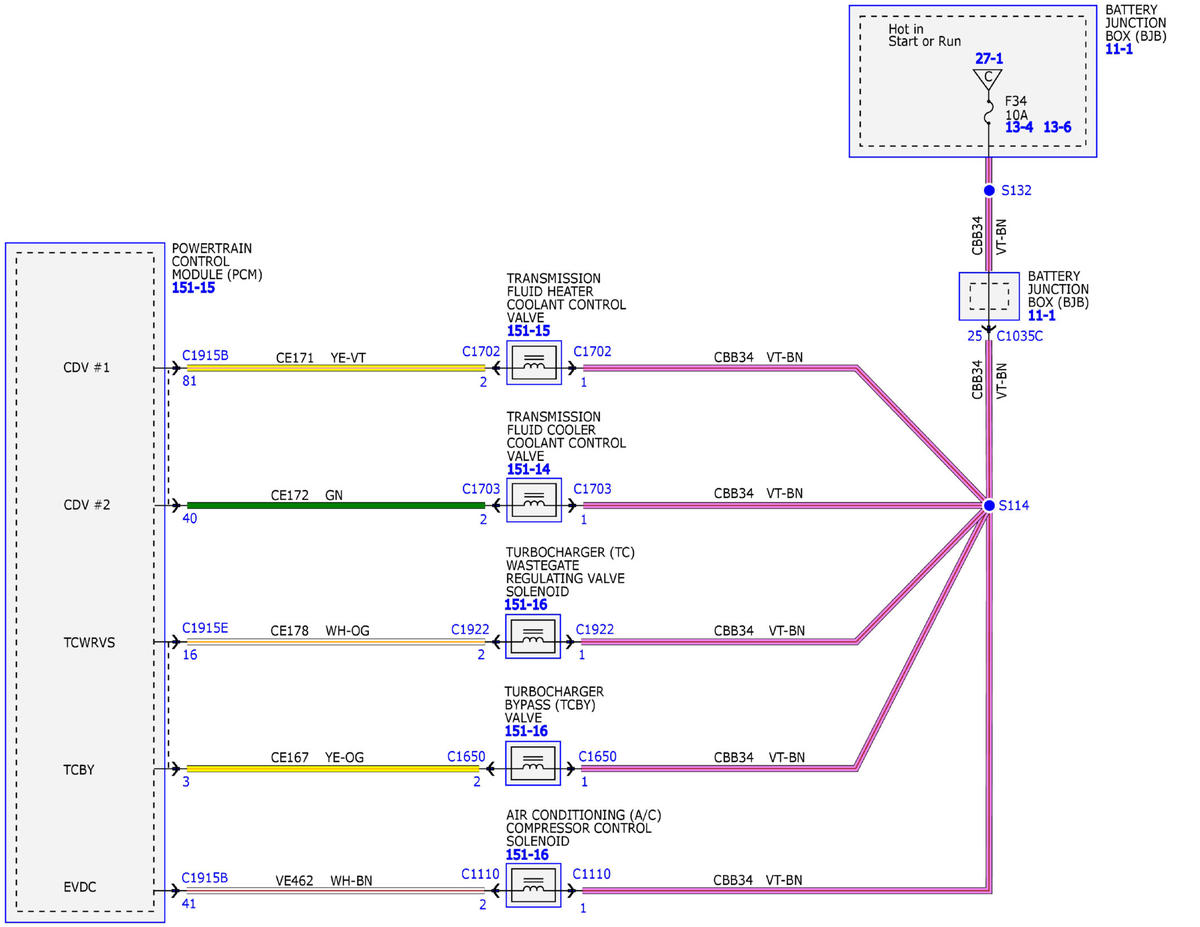

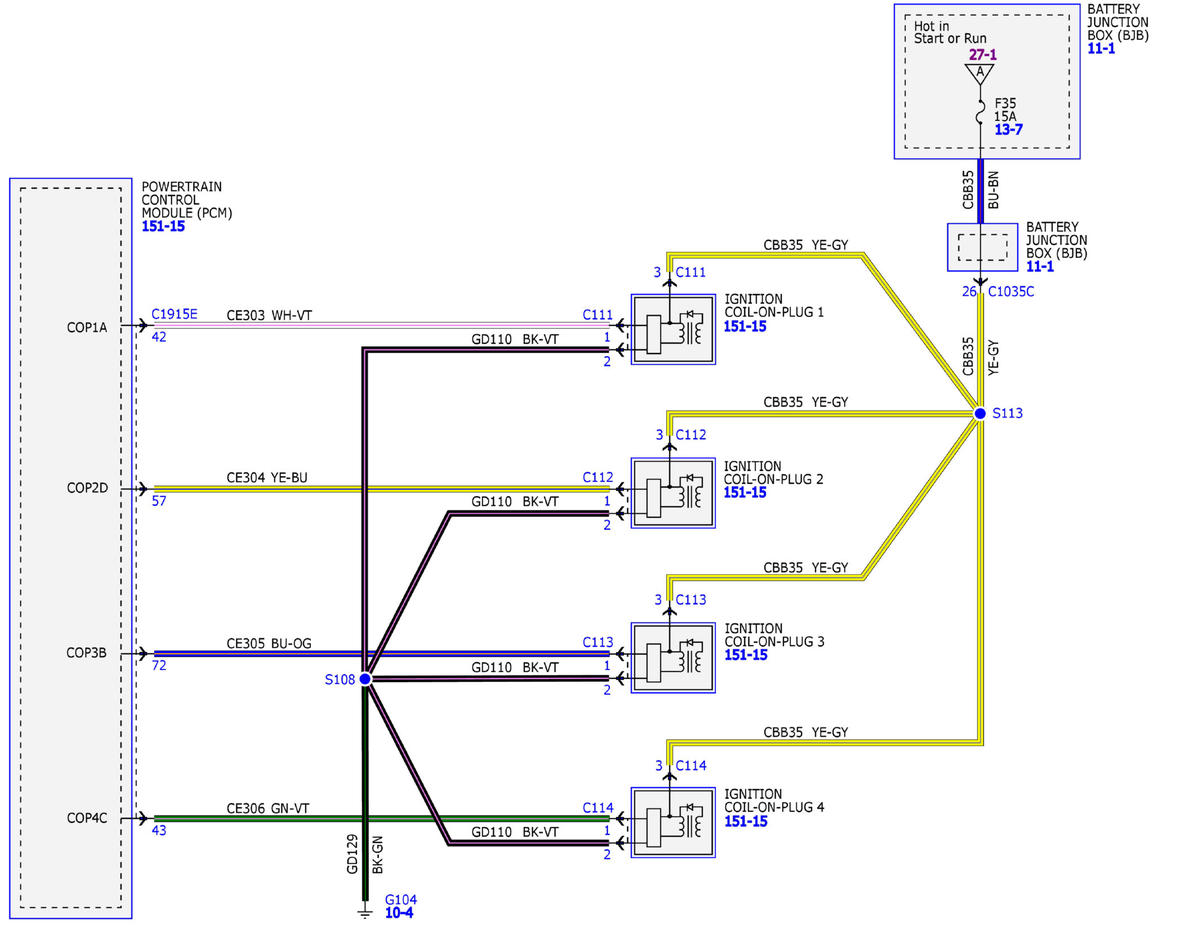

Fig 4: Electronic Engine Controls - 1.6L GTDI Sigma Wiring Diagram (4 of 12)

Courtesy of FORD MOTOR COMPANY

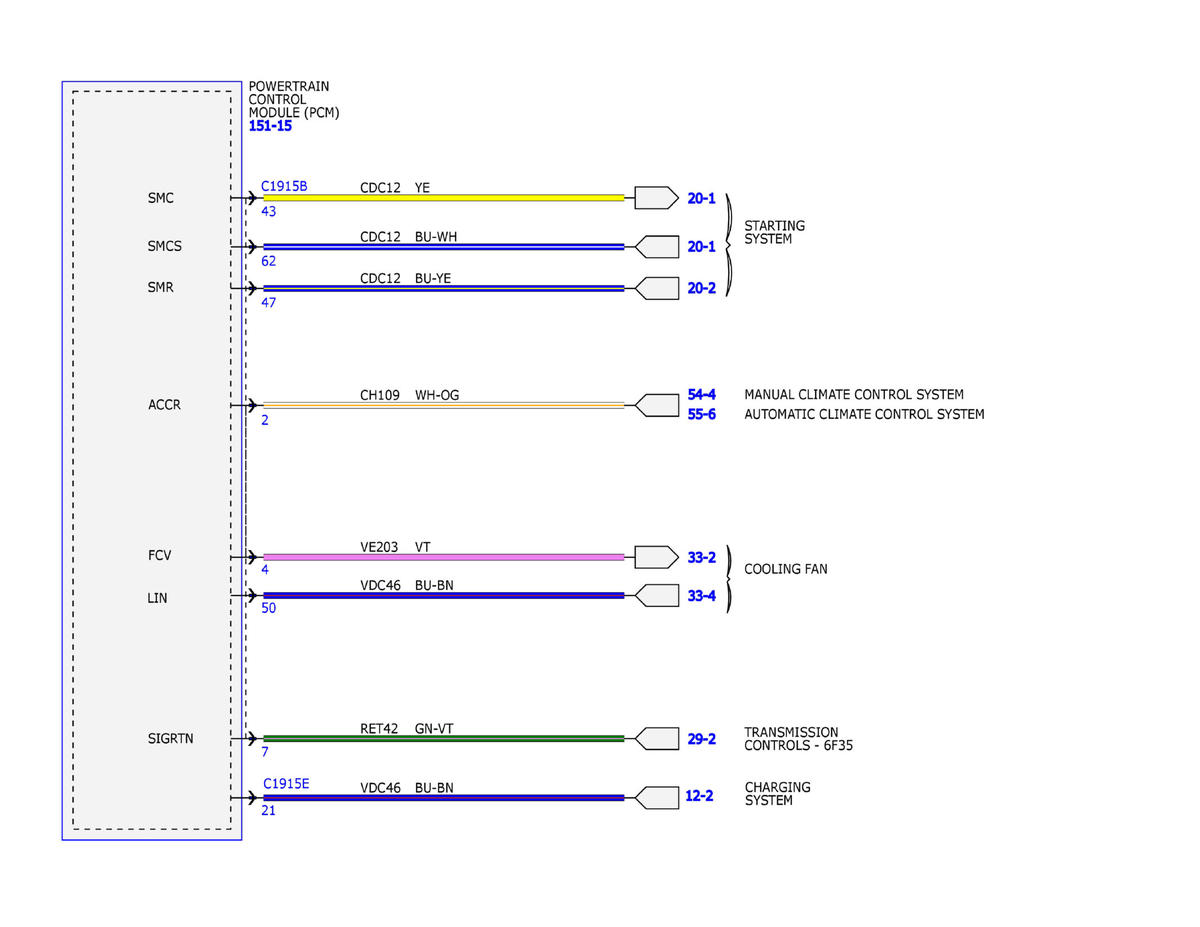

Fig 5: Electronic Engine Controls - 1.6L GTDI Sigma Wiring Diagram (5 of 12)

Courtesy of FORD MOTOR COMPANY

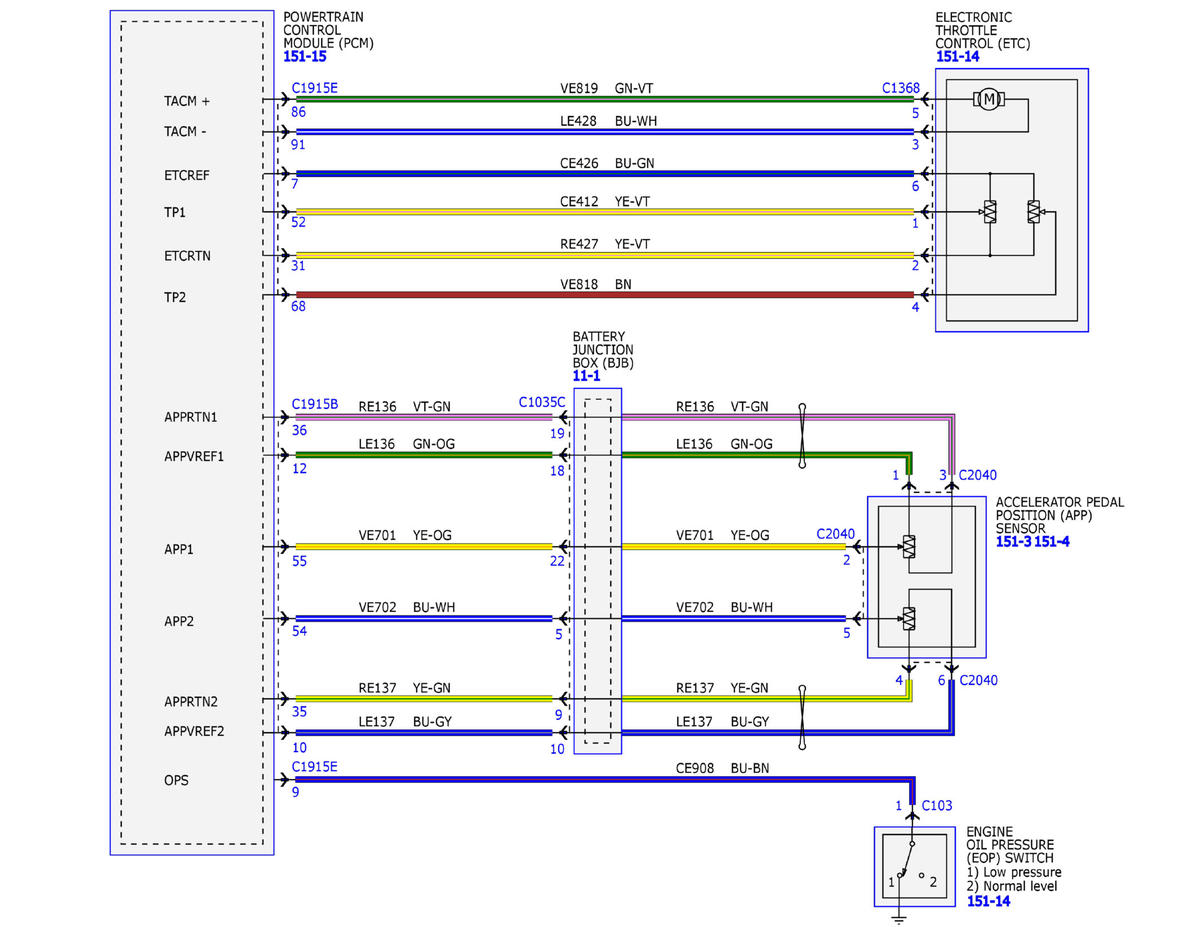

Fig 6: Electronic Engine Controls - 1.6L GTDI Sigma Wiring Diagram (6 of 12)

Courtesy of FORD MOTOR COMPANY

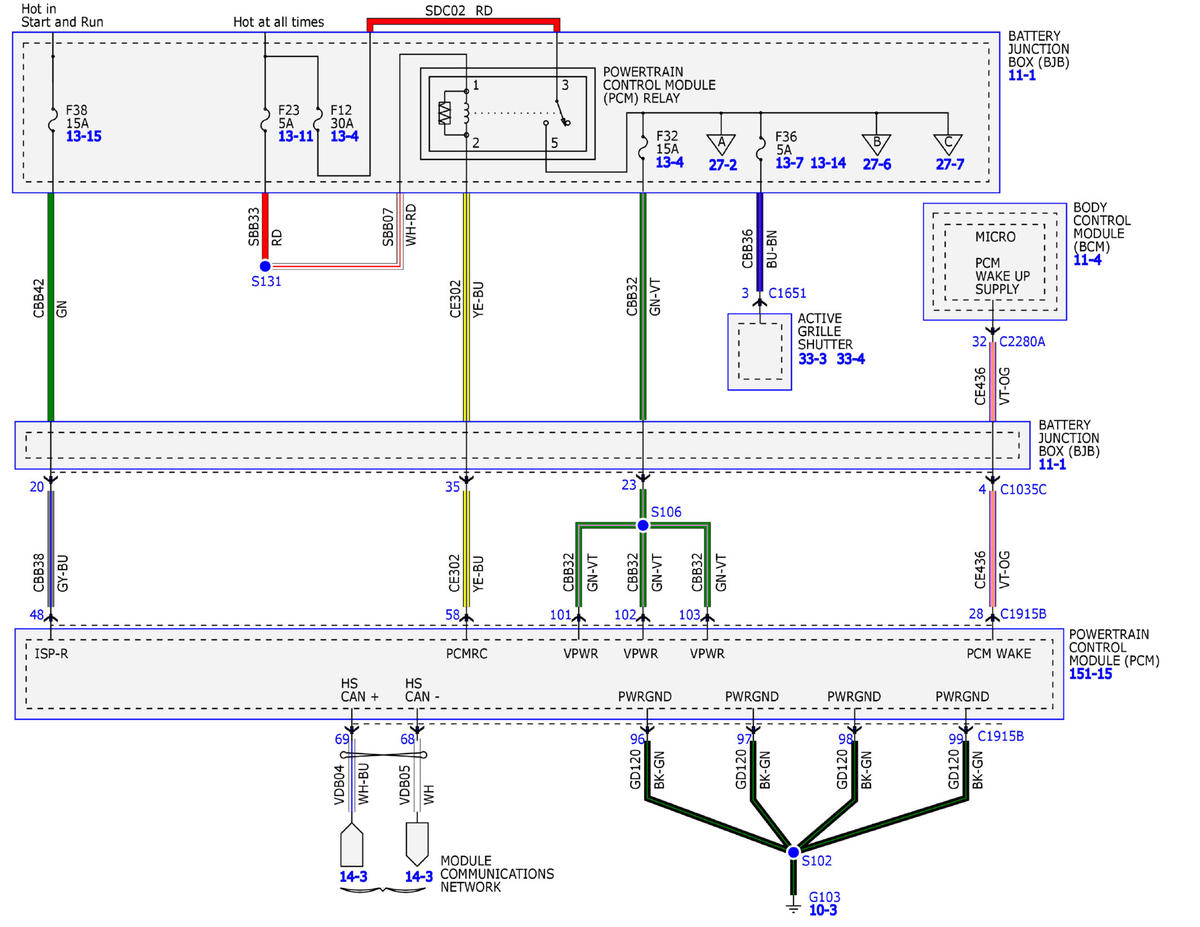

Fig 7: Electronic Engine Controls - 1.6L GTDI Sigma Wiring Diagram (7 of 12)

Courtesy of FORD MOTOR COMPANY

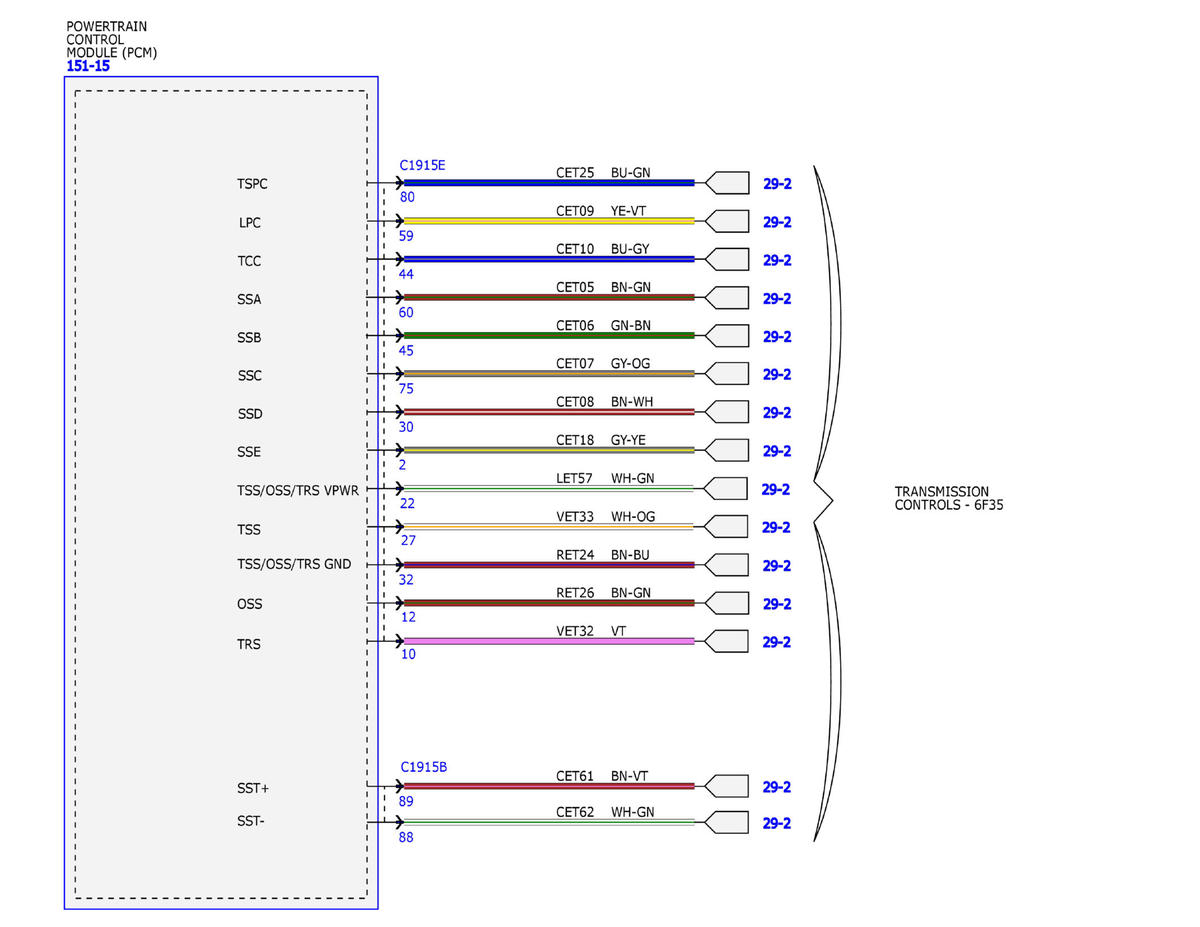

Fig 8: Electronic Engine Controls - 1.6L GTDI Sigma Wiring Diagram (8 of 12)

Courtesy of FORD MOTOR COMPANY

Fig 9: Electronic Engine Controls - 1.6L GTDI Sigma Wiring Diagram (9 of 12)

Courtesy of FORD MOTOR COMPANY

Fig 10: Electronic Engine Controls - 1.6L GTDI Sigma Wiring Diagram (10 of 12)

Courtesy of FORD MOTOR COMPANY

Fig 11: Electronic Engine Controls - 1.6L GTDI Sigma Wiring Diagram (11 of 12)

Courtesy of FORD MOTOR COMPANY

Fig 12: Electronic Engine Controls - 1.6L GTDI Sigma Wiring Diagram (12 of 12)

Courtesy of FORD MOTOR COMPANY
