Cluster And Panel Illumination

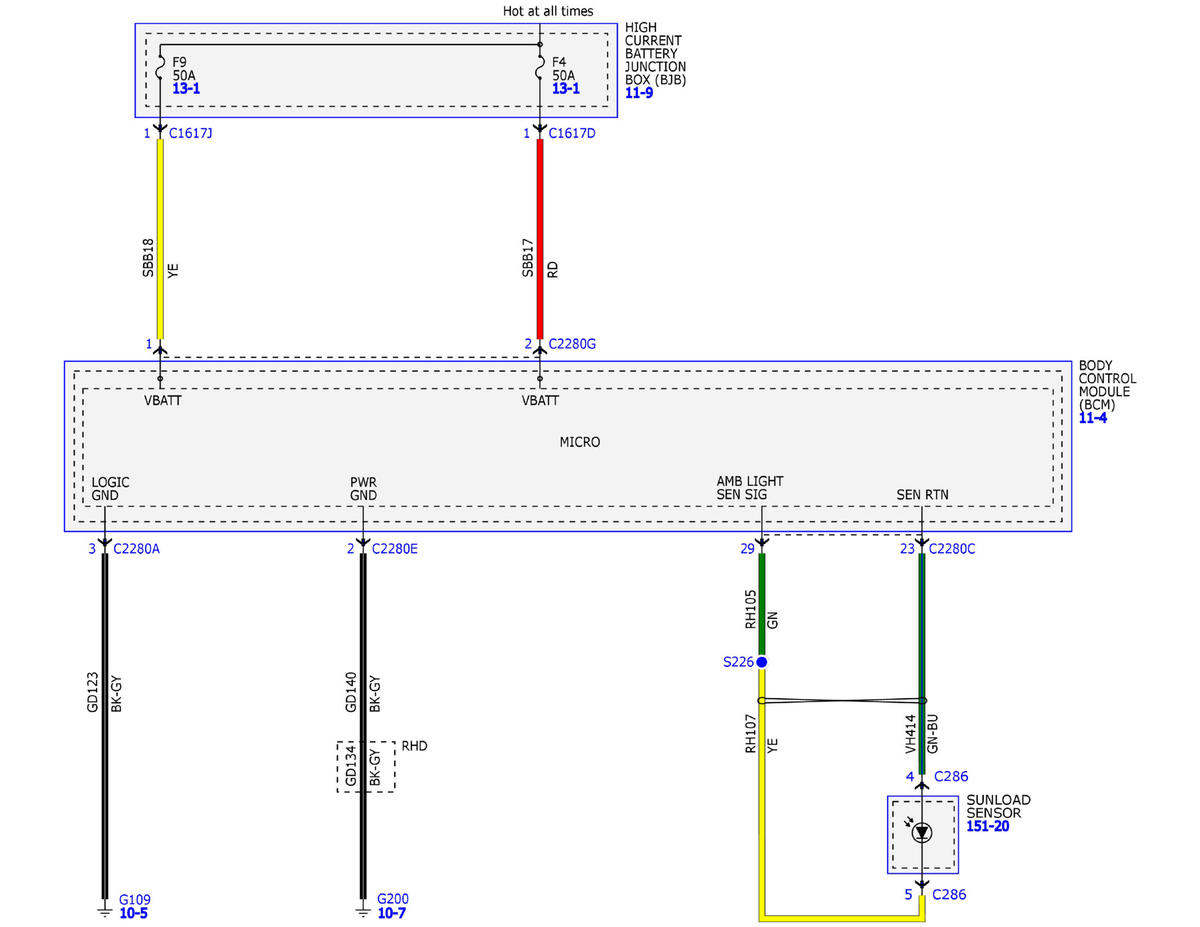

Fig 1: Cluster and Panel Illumination Wiring Diagram (1 of 4)
GFDW85717Courtesy of FORD MOTOR COMPANY

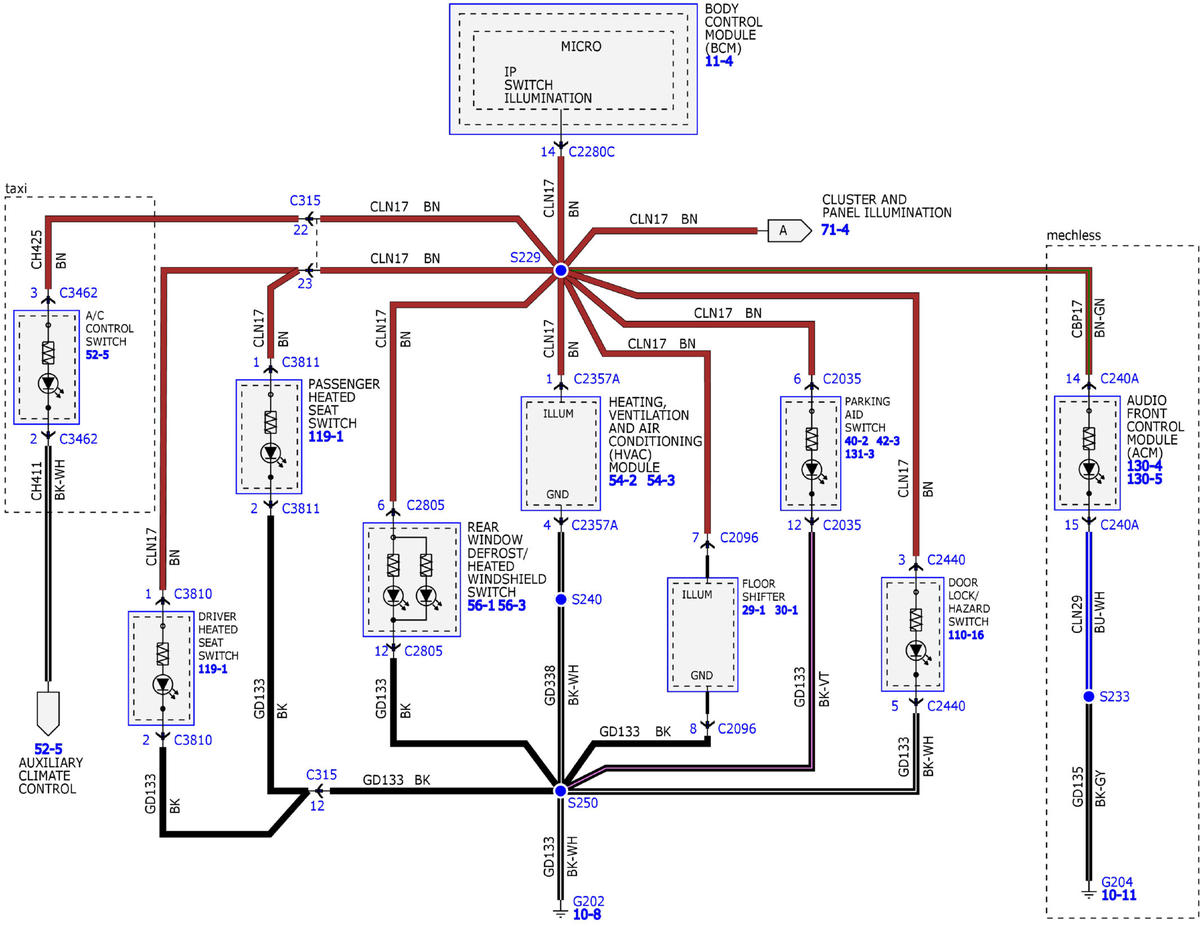

Fig 2: Cluster and Panel Illumination Wiring Diagram (2 of 4)
GFDW85718Courtesy of FORD MOTOR COMPANY

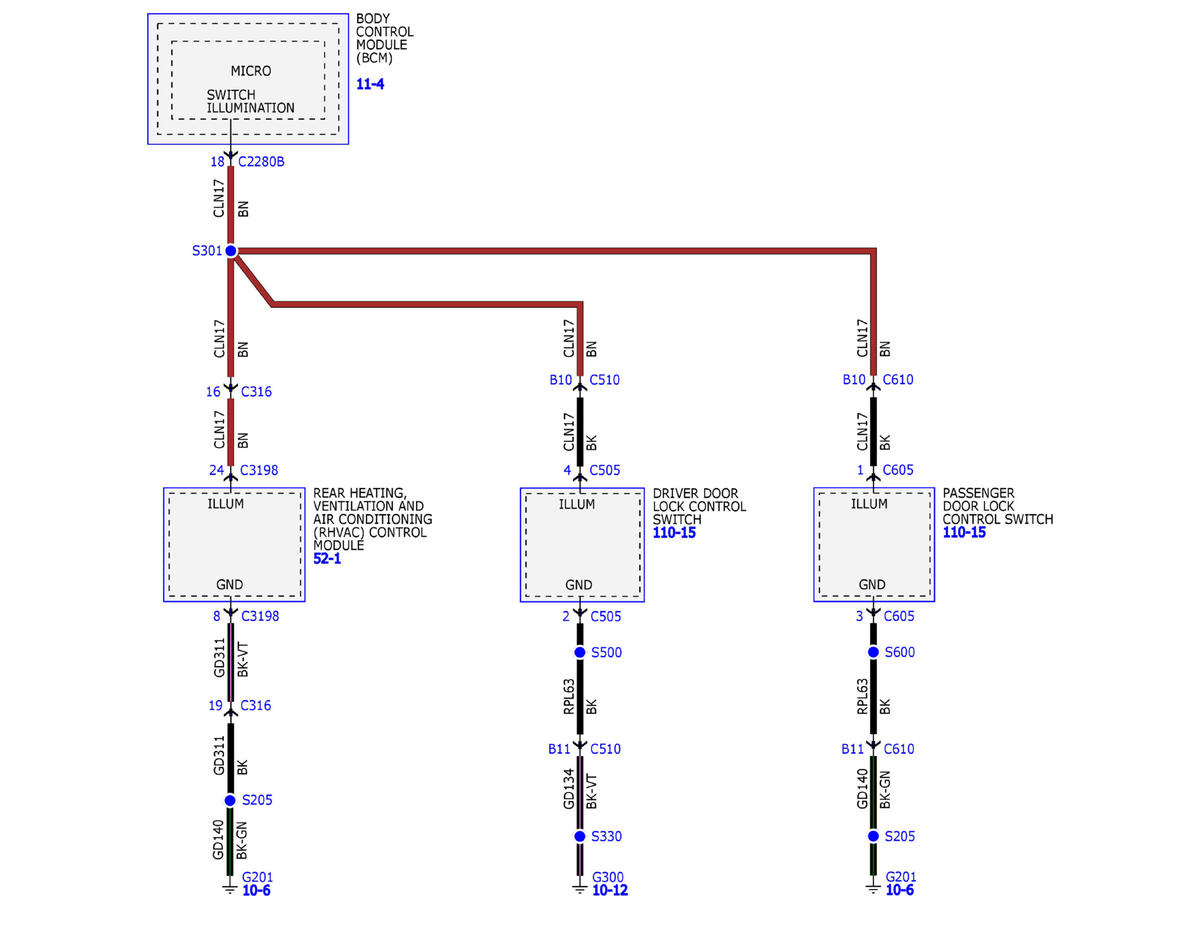

Fig 3: Cluster and Panel Illumination Wiring Diagram (3 of 4)
GFDW85719Courtesy of FORD MOTOR COMPANY

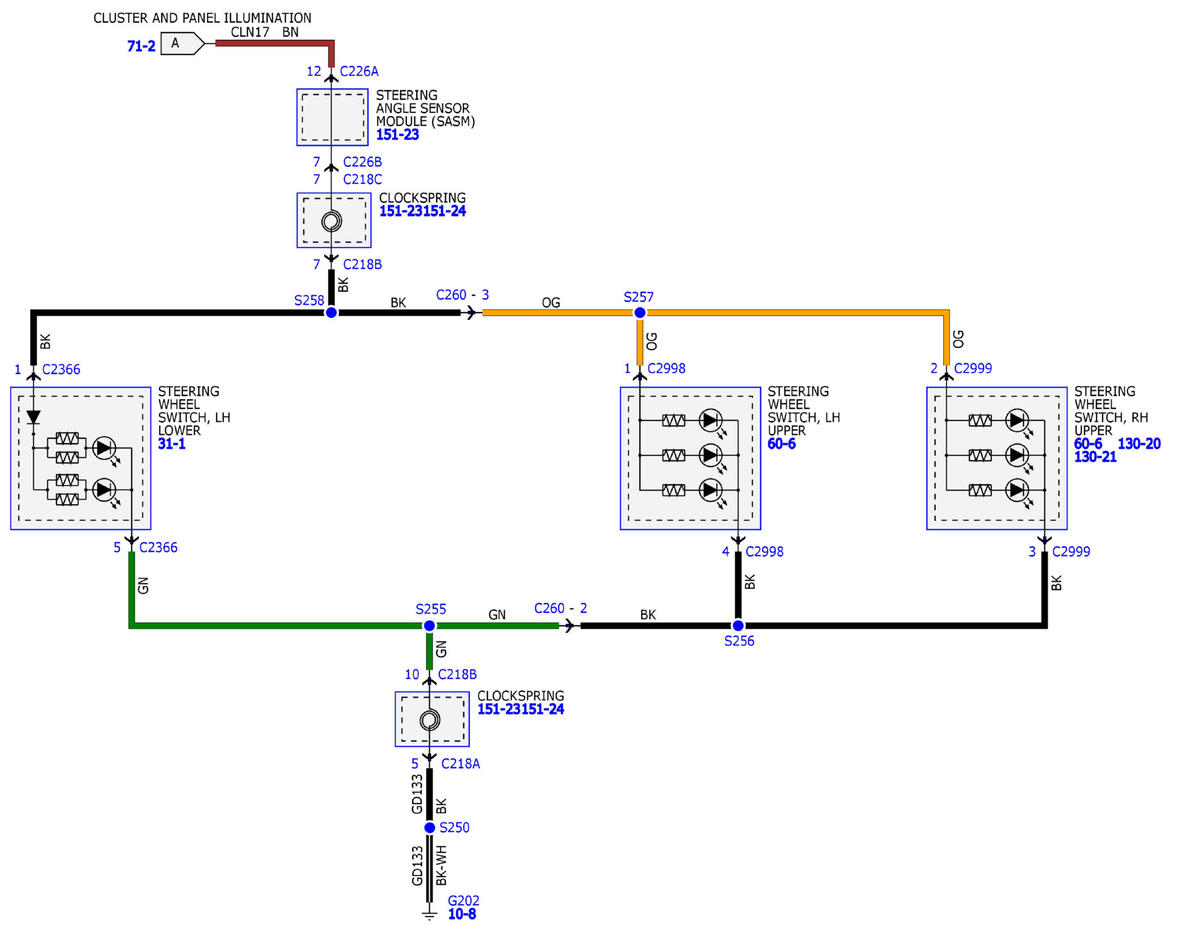

Fig 4: Cluster and Panel Illumination Wiring Diagram (4 of 4)
GFDW85720Courtesy of FORD MOTOR COMPANY
