Connector End View (C1144) - FUEL INJECTOR 4
Connector: C1144
Description
FUEL INJECTOR 4
Color
BK
Harness
12A690
Base Part #
9F593
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | RE205 (YE-BU) | 14 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) | |
| 2 | CE205 (GN-BU) | 14 | CTRL MOD. - POWERTRAIN # INDICATOR CATALYST OVERHEATED |

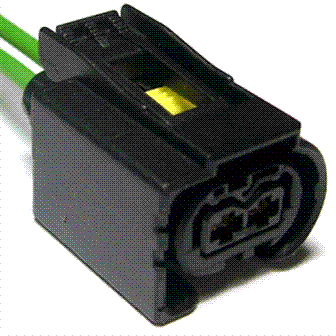

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1331 |
Service Part Number: DU2Z-14S411-BA Gauge: 16 Pin material: Silver Cavities: 2 Vehicle Uses Alternator |
