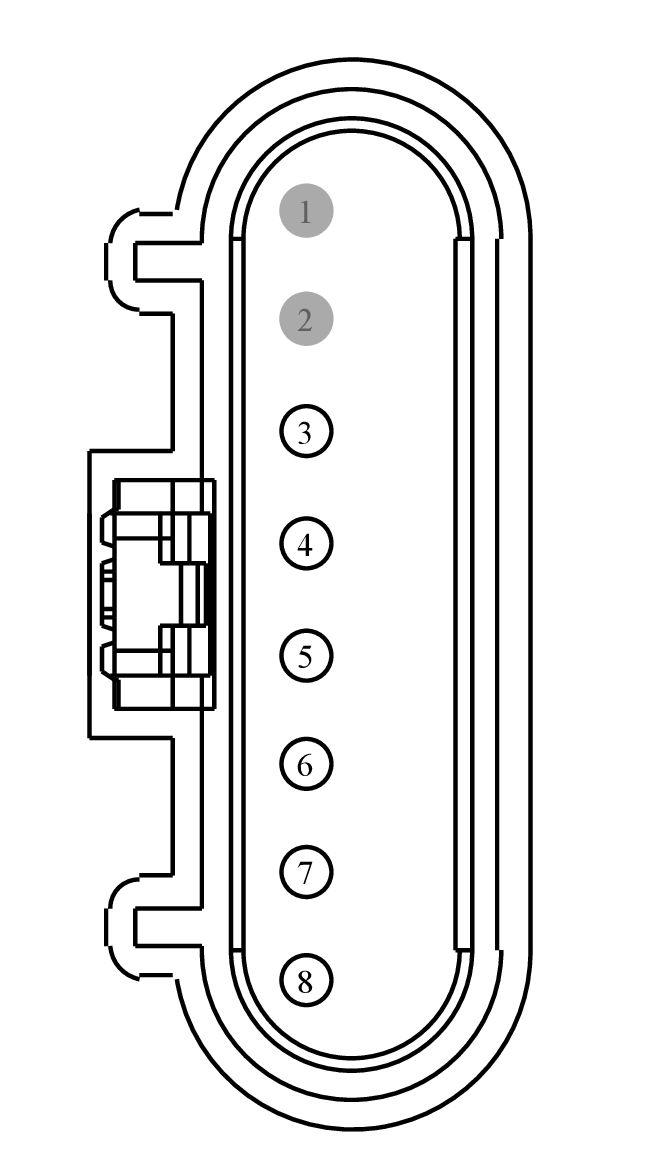

Connector End View (C708) - SLIDING DOOR LATCH LH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C708	SLIDING DOOR LATCH LH	BK	14027	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	*	*	Not Used	N/A
3	CPL36 (BK)	20	SWITCH - LATCH REAR DRIVER SIDE # AJAR (INCL.SLIDING DOOR)	N/A
4	CPL38 (BK)	22	SWITCH - LATCH REAR DRIVER SIDE # AJAR (INCL.SLIDING DOOR)	with door module	N/A
4	CPL53 (BK)	16	SWITCH - LATCH REAR DRIVER SIDE # AJAR (INCL.SLIDING DOOR)	N/A
5	GD134 (BK)	18	GROUND - PILLAR A LEFT # 2ND STUD	N/A
5	GD134 (BK)	22	GROUND - PILLAR A LEFT # 2ND STUD	with door module	N/A
5	RPL71 (BK)	22	CTRL MOD. - DOOR LOCK # LATCH REAR DRIVER SIDE	N/A
6	CPL08 (BK)	20	CTRL MOD. - DOOR LOCK # DOUBLE LOCK REAR DRIVER SIDE	with door module	N/A
6	CPL12 (BK)	16	CTRL MOD. - DOOR LOCK # DRIVER LOCK	N/A
7	CPL04 (BK)	20	SWITCH - UNLOCK REAR PASSENGER SIDE	with door module	N/A
7	CPL11 (BK)	16	CTRL MOD. - DOOR LOCK # DRIVER LOCK	N/A
8	CPL53 (BK)	20	SWITCH - LATCH REAR DRIVER SIDE # AJAR (INCL.SLIDING DOOR)	with door module	N/A
8	CPL53 (BK)	16	SWITCH - LATCH REAR DRIVER SIDE # AJAR (INCL.SLIDING DOOR)	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1366

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-MBB

Gauge:

16

Pin material:

Silver

Cavities:

8

Vehicle Uses:

• Actuator - Door Lock - LH - Front
• Actuator - Door Lock - LH - Rear
• Actuator - Door Lock - RH - Front
• Actuator - Door Lock - RH - Rear
• Module - Liftgate
• Switch - Door Ajar / Interior Lamp
• Switch - Door Lock (LH)
• Switch - Door Lock (RH)
• Switch - Sliding Door Contact
