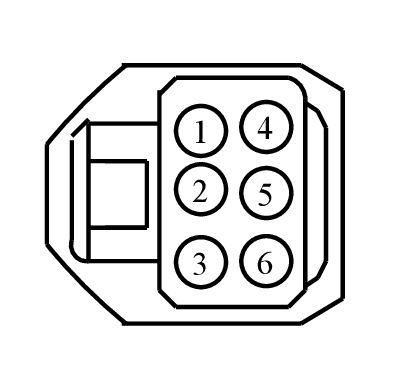

Connector End View (C524) - DRIVER DOOR WINDOW REGULATOR MOTOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C524	DRIVER DOOR WINDOW REGULATOR MOTOR	BK	14A584	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CPW35 (BK)	14	SWITCH - REAR WINDOW FLIP # RIGHT OPEN	N/A
1	RPW37 (BK)	14	CTRL MOD. - WINDOW MOTOR DRIVER # SENSORS	RHD	N/A
2	VPW38 (BK)	22	CTRL MOD. - WINDOW MOTOR DRIVER # SENSOR 1	N/A
2	VPW39 (BK)	22	CTRL MOD. - WINDOW MOTOR DRIVER # SENSOR 2	RHD	N/A
3	LPW36 (BK)	22	CTRL MOD. - WINDOW MOTOR DRIVER # SENSORS	N/A
4	CPW34 (BK)	14	SWITCH - REAR WINDOW FLIP # RIGHT OPEN	N/A
4	VPW39 (BK)	14	CTRL MOD. - WINDOW MOTOR DRIVER # SENSOR 2	RHD	N/A
5	VPW38 (BK)	22	CTRL MOD. - WINDOW MOTOR DRIVER # SENSOR 1	RHD	N/A
5	VPW39 (BK)	22	CTRL MOD. - WINDOW MOTOR DRIVER # SENSOR 2	N/A
6	RPW37 (BK)	22	CTRL MOD. - WINDOW MOTOR DRIVER # SENSORS	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1344

Courtesy of FORD MOTOR COMPANY

Service Part Number:

DU2Z-14S411-AEA

Gauge:

16

Pin material:

Tin

Cavities:

6

Vehicle Uses:

• Motor - Power Window - LH - Front
• Motor - Power Window - LH - Rear
• Motor - Power Window - RH - Front
• Motor - Power Window - RH - Rear
