Connector End View (C411) - INLINE
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C411 | INLINE | LT GY | 1401418C394/14A583 | See Below | ||||

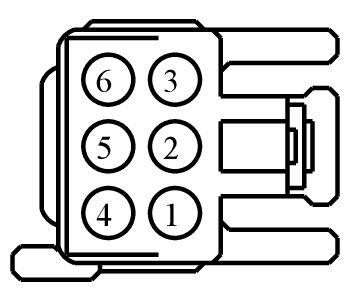

MALE
Harness
14014

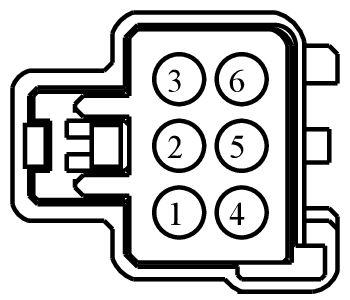

FEMALE
Harness
18C394/14A583
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number |
| 1 | CPL17 (YE-VT) | 16 | 14014 | N/A |
| 2 | CPL45 (YE-VT) | 20 | 14014 | N/A |
| 3 | CPL12 (VT-OG) | 16 | 14014 | N/A |
| 4 | CPL45 (BN) | 26 | 14014 | N/A |
| 5 | CPL53 (WH-OG) | 20 | 14014 | N/A |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number |
| 1 | CPL17 (BK) | 16 | 18C394 | N/A |
| 2 | CPL45 (BK) | 20 | 14A583 | N/A |
| 3 | CPL17 (BK) | 16 | 18C394 | N/A |
| 4 | CPL45 (BK) | 20 | 14A583 | N/A |
| 5 | CPL53 (BK) | 20 | 18C394 | N/A |
Available Pigtail Kits
Pigtail Kit Part Number WPT-1299
Service Part Number:
3U2Z-14S411-NBB
Gauge:
18
Pin material:
Silver
Cavities:
6
Vehicle Uses:
- Connector - Inline
- Element - Heated Seat
- Inverter - DC to AC
- Lamp - CHMSL (Center High Mount Stop Lamp)
- Lamp - Courtesy - Footwell
- Lamp - License
- Lamp - Park/Turn/Stop
- Lamp - Top Finish Panel
- Mating Connector WPT-962
- Motor - Adjustable Pedal
- Switch - Gear Shift Select/Neutral Safety
- Switch - Multifunction
Pigtail Kit Part Number WPT-962
Service Part Number:
3U2Z- 14S411-JBB
Gauge:
14
Pin material:
Silver
Cavities:
6
Vehicle Uses:
- Mating Connector WPT-1299
- Switch - Gear Shift Select/Neutral Safety
- Switch - Overdrive Cancel
- Switch - Power Sliding Door
