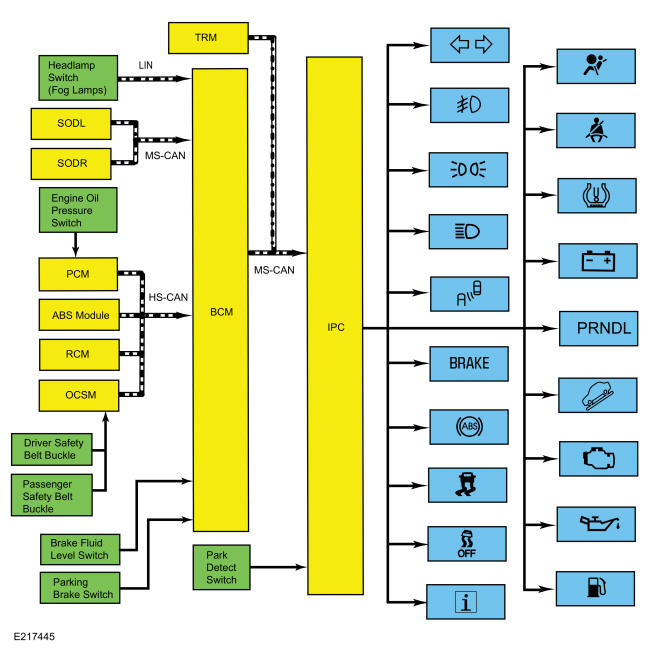

Home >> Ford >> 2017 >> Transit Connect XL, Van Cargo >> Repair and Diagnosis >> Electrical >> Gauges >> Information Center - Instrumentation, Message Center And Warning Chimes >> Description And Operation >> Instrument Panel Cluster (IPC) - System Operation and Component Description >> System Operation >> System Diagram - Indicators
