Battery Cables - 2.5L Duratec (125kW/170PS): Removal
NOTE:
Removal steps in this procedure may contain installation details.

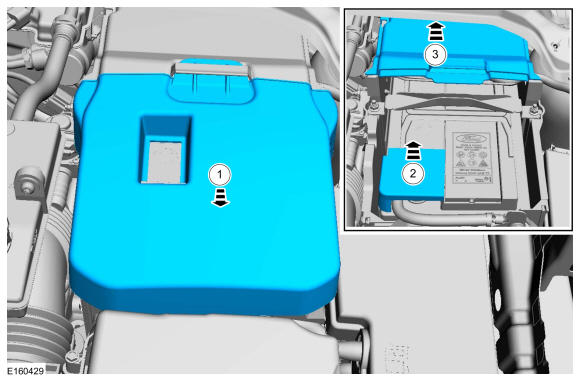

- If equipped.
- Remove the air cleaner. Refer to: Air Cleaner .

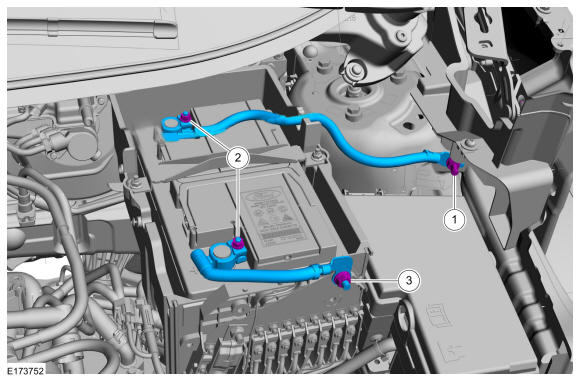

- Torque:
1: 16 lb.ft (22 Nm)
2: 44 lb.in (5 Nm)
3: 89 lb.in (10 Nm)

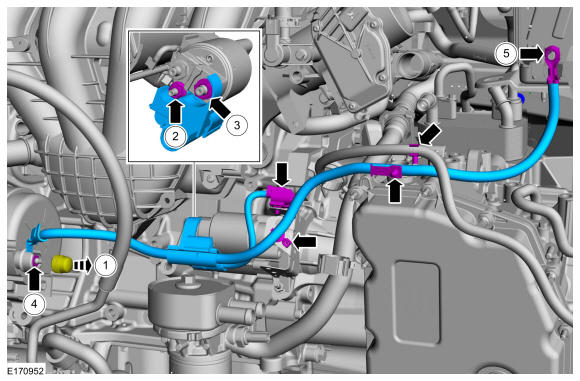

- Torque:
2: 53 lb.in (6 Nm)
3: 106 lb.in (12 Nm)
4: 150 lb.in (17 Nm)
5: 106 lb.in (12 Nm)
