Outer Constant Velocity (CV) Joint Boot: Installation

  1. NOTE: Grease sachet is supplied with boot kit.

    Install the CV joint boot and the grease sachet evenly in the CV joint boot and housing.

    Material: Motorcraft ® Constant Velocity Joint Grease / XG-5 (WSS-M1C258-A1)

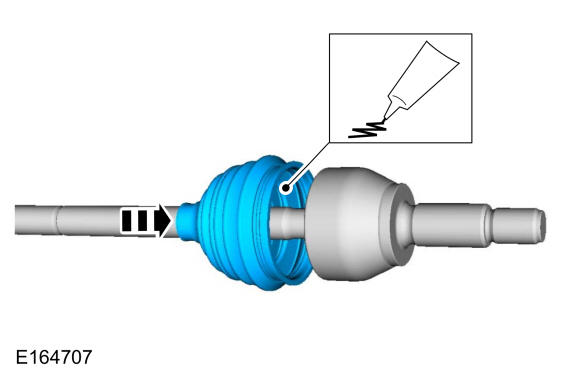

    GFD214209Courtesy of FORD MOTOR COMPANY
    • Position the CV joint boot.

    • Using boot clamp pliers, install the CV joint boot clamps. Use Special Service Tool: 205-343 (T95P-3514-A) Installer, Constant Velocity Joint Boot Clamp.

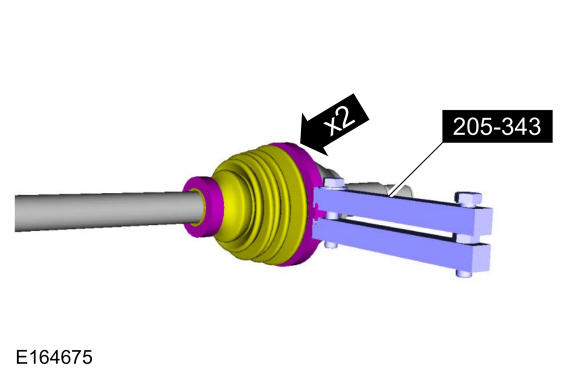

    GFD214210Courtesy of FORD MOTOR COMPANY
  3. Install the inner CV joint boot. Refer to: Inner Constant Velocity (CV) Joint Boot .
