Inner Constant Velocity (CV) Joint Boot: Removal

1. Remove the front halfshaft. Refer to: Front Halfshaft LH . Refer to: Front Halfshaft RH .

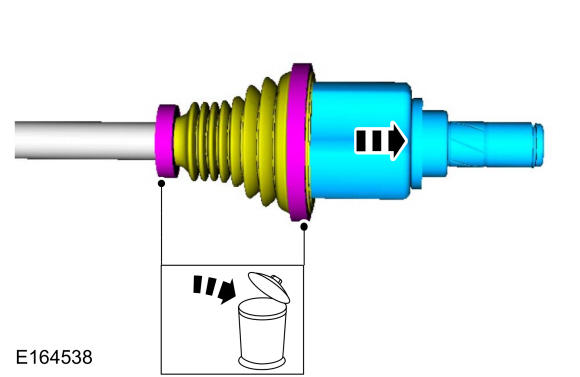

2. • Remove and discard the large and small CV boot clamps.
   • Position the CV joint boot and the remove the inner CV joint housing.

   Courtesy of FORD MOTOR COMPANY

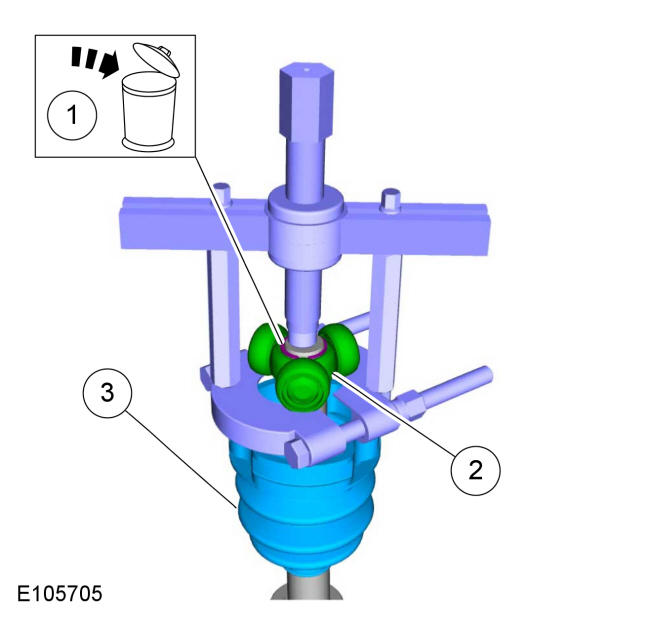

3. 1. Remove and discard the CV joint tripod bearing circlip.
   2. Using a suitable puller, remove the CV joint tripod bearing. Use the General Equipment: Bearing Separator Use the General Equipment: Puller
   3. Remove the inner CV joint boot.

Courtesy of FORD MOTOR COMPANY
