Rear Brake Disc: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the wheel and tire. Refer to: Wheel and Tire .

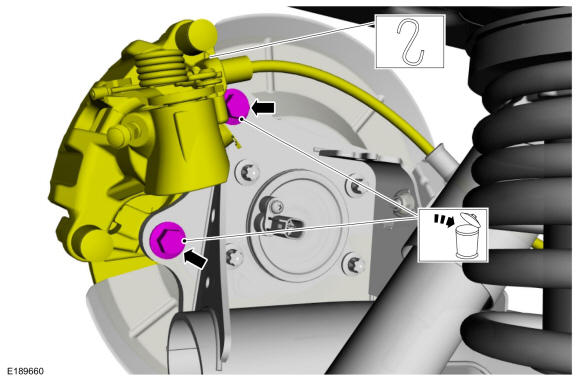

  2. NOTE: Make sure that no load is placed on the brake hose.

    Remove the bolts and position aside the brake caliper and anchor plate assembly. Discard the bolts.

    Torque: 81 lb.ft (110 Nm)

    GFD214240Courtesy of FORD MOTOR COMPANY
  3. Remove the brake disc.
GFD214241Courtesy of FORD MOTOR COMPANY
