Front Brake Caliper Anchor Plate: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the wheel and tire. Refer to: Wheel and Tire .
  2. Remove the brake caliper spring.
    GFD214226Courtesy of FORD MOTOR COMPANY
  3. NOTE: Do not pry in the caliper sight hole to retract the pistons as this can damage the pistons and boots.
    NOTE: Do not allow the brake caliper and anchor plate assembly to hang from the brake hose or damage to the hose can occur.

    1. Remove the caps.
    2. Remove the brake caliper guide pin bolts.

      Torque: 21 lb.ft (28 Nm)

    3. Position the brake caliper aside.

    GFD214232Courtesy of FORD MOTOR COMPANY
  4. Remove the outboard brake pad.
    GFD214228Courtesy of FORD MOTOR COMPANY

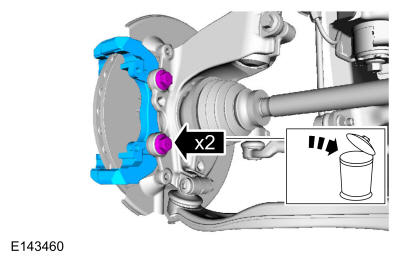

  5. Remove the bolts and the brake caliper anchor plate.

    Torque: 129 lb.ft (175 Nm)

GFD214233Courtesy of FORD MOTOR COMPANY
