Second Row Single Seat: Removal

Short wheelbase

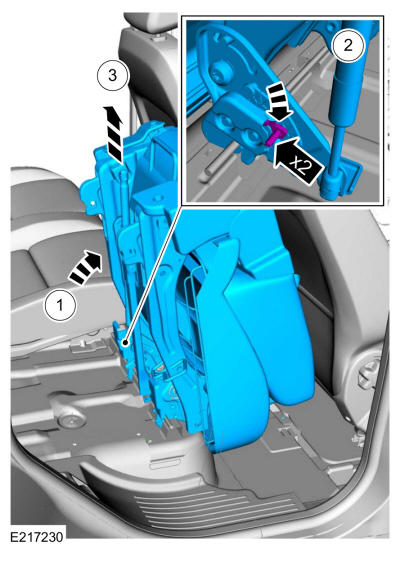

1. Remove the single seat.
   1. Tilt the seat forward.
   2. Push down on the locking pins to release the seat base floor latch.
   3. Remove the seat.

   Courtesy of FORD MOTOR COMPANY

   Long wheelbase

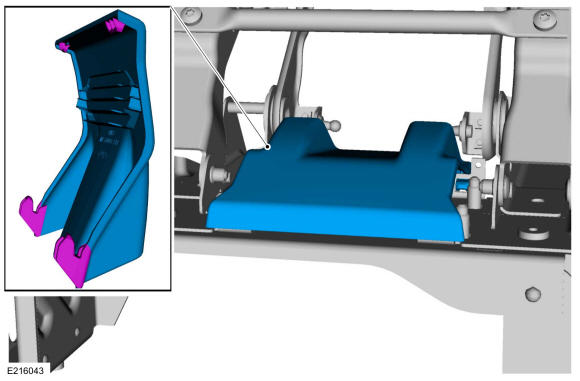

2. Release the clips and remove the gas strut finish cover.

   Courtesy of FORD MOTOR COMPANY

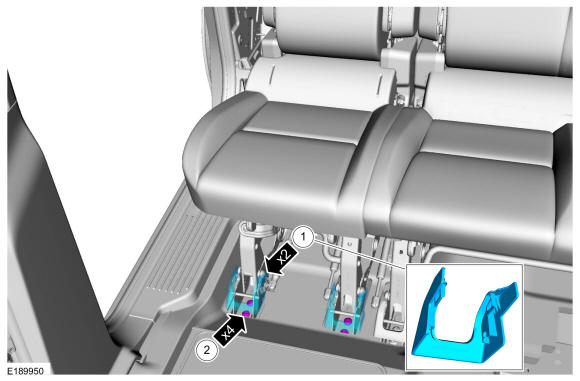

3. NOTE: Single seat with bolt fasteners shown, single seat with nut fasteners similar.

   Remove the seat fasteners.

   1. Remove the seat fastener covers.
   2. Remove the seat fasteners.

      Torque: 33 lb.ft (45 Nm)

   Courtesy of FORD MOTOR COMPANY

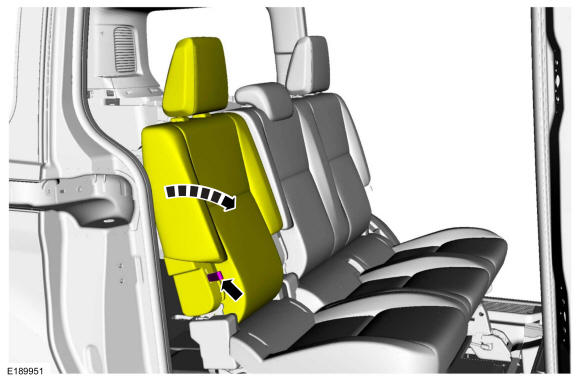

4. Pull the strap and lock the seat backrest in the fold-flat position.

   Courtesy of FORD MOTOR COMPANY

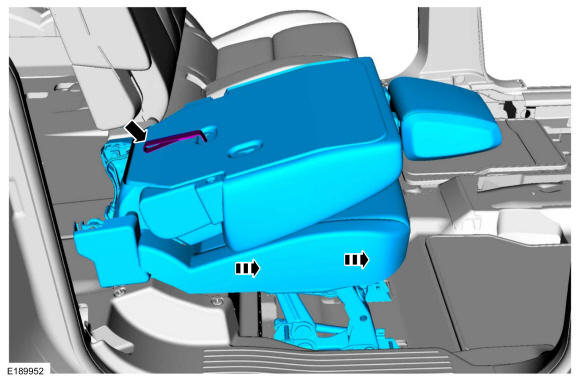

5. NOTE: The seat must be locked in the fold-flat position to remove the seat.

   Pull the large strap, move the seat forward to the lowered position and remove the single seat.

Courtesy of FORD MOTOR COMPANY
