Fender Splash Shield: Removal

  1. Remove the wheel and tire. Refer to: Wheel and Tire .

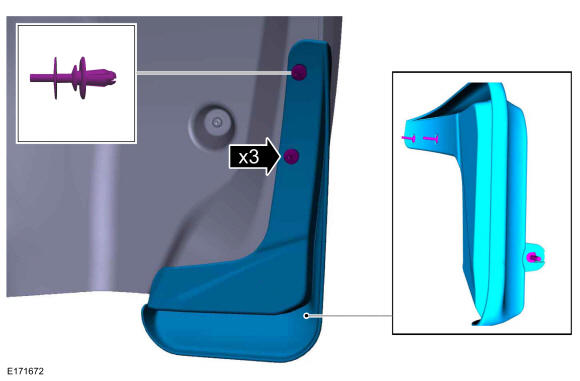

  2. Remove the retainers and the mud flap.
    GFD216049Courtesy of FORD MOTOR COMPANY

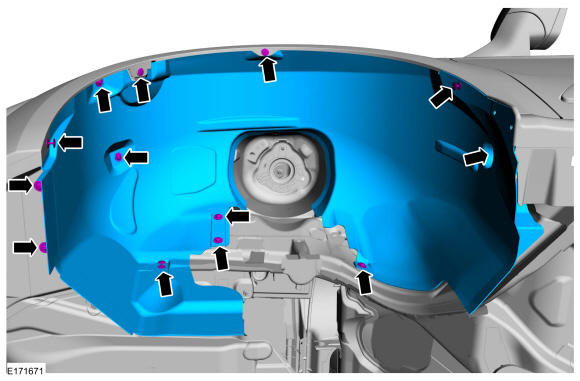

  3. Remove the screws, retainers and the fender splash shield.
GFD216050Courtesy of FORD MOTOR COMPANY
