Rear Bumper: Removal

  1. Remove the rear bumper cover. Refer to: Rear Bumper Cover .

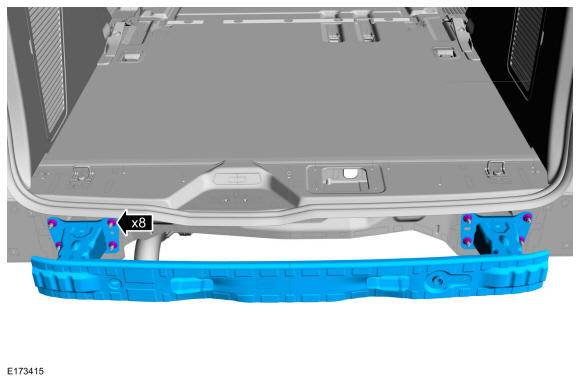

  2. Remove the nuts and the rear bumper.

    Torque: 18 lb.ft (25 Nm)

GFD216749Courtesy of FORD MOTOR COMPANY
