Liftgate Strut: Removal

  1. NOTE: This step requires the aid of another technician.

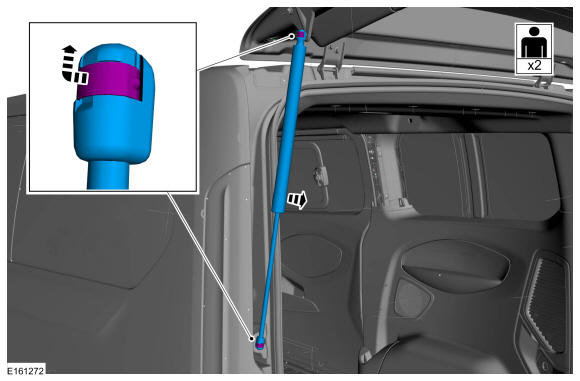

    On both sides. Remove the clips and the liftgate strut.

GFD216151Courtesy of FORD MOTOR COMPANY
