Ignition Switch: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Disconnect the battery. Refer to: Battery Disconnect and Connect .

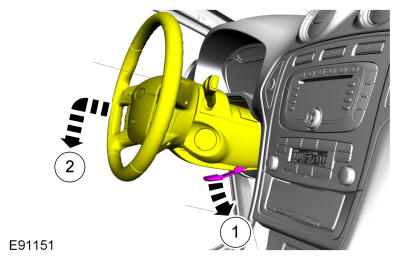

  2. Position the steering column in the full forward/down position.
    GFD214341Courtesy of FORD MOTOR COMPANY
  3. Rotate the steering wheel and release the retainers. Use the General Equipment: Flat Headed Screw Driver
    GFD214342Courtesy of FORD MOTOR COMPANY
    1. Release the front clip.
    2. Rotate and detach the rear clip.
    3. Slide the upper steering column shroud forward and remove.
    GFD214335Courtesy of FORD MOTOR COMPANY
  5. Remove the retainers and the lower steering column shroud.
    GFD214336Courtesy of FORD MOTOR COMPANY

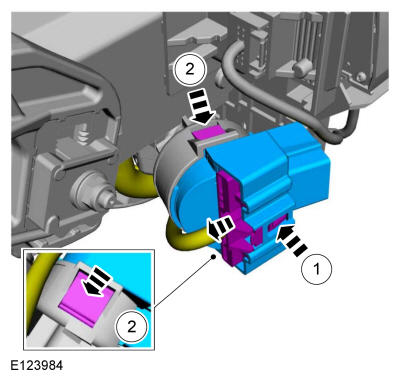

    1. Push the ignition switch tab and disconnect the ignition switch electrical connector.
    2. Push the ignition switch tabs and remove the ignition switch.
GFD214343Courtesy of FORD MOTOR COMPANY
