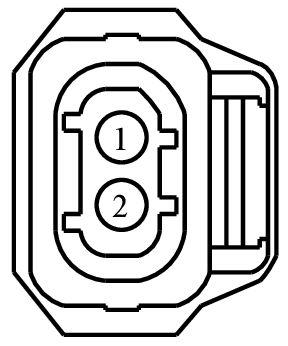

Connector End View (C1139) - FUEL METERING VALVE

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1139	FUEL METERING VALVE	GY	12A690	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9G9N-14474-AA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CE231 (BN-YE)	18	CTRL MOD. - POWERTRAIN # FUEL TANK SOLENOID VALVE (FSV)	1.0L	9G9N-14474-AA
1	RE256 (GY-BU)	18	CTRL MOD. - POWERTRAIN # HEATED OXYGEN SENSOR PRE CAT 2ND	1.6L GTDI	9G9N-14474-AA
2	CBB12 (GN-WH)	18	FUSE - 12 OR CIRCUIT BREAKER	1.0L	9G9N-14474-AA
2	CE256 (BU-OG)	18	CTRL MOD. - POWERTRAIN # HOLD PCM RELAY (PCM)	1.6L GTDI	9G9N-14474-AA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1302

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-ARA

Gauge:

16

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Fuel Injector
• Pump - Fuel Injection
• Solenoid - Fuel Volume Regulator Control
