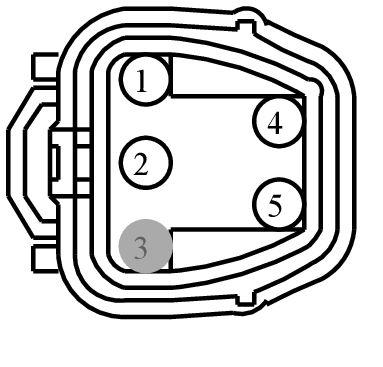

Connector End View (C463) - FUEL PUMP AND SENDER UNIT

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C463	FUEL PUMP AND SENDER UNIT	GY	14A411	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	RMC32 (GN-BU)	20	CTRL MOD. - SENSOR FUEL LEVEL	N/A
2	VMC11 (YE-VT)	20	SWITCH - DOME LAMP DEFEAT (DISABLE) (OVERRIDE)	N/A
3	*	*	Not Used	N/A
4	GD130 (BK-BU)	14	GROUND - HEADLAMP PANEL LEFT # 2ND STUD	N/A
5	VE225 (YE-OG)	14	CTRL MOD. - POWERTRAIN # FUEL PUMP MODULE COMMAND (FPC)	N/A

Available Pigtail Kits

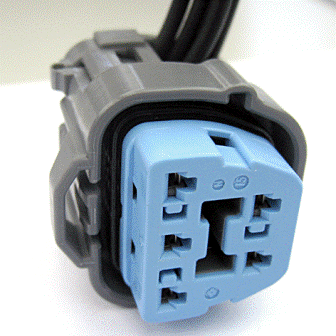

Pigtail Kit Part Number WPT-909

Courtesy of FORD MOTOR COMPANY

Service Part Number:

8U2Z-14S411-NA

Gauge:

14

Pin material:

Tin

Cavities:

5

Vehicle Uses:

• Control - Engine Air Shutoff
• Fuel Pump/Sending Unit
• Resistor - Blower Motor (Front)
