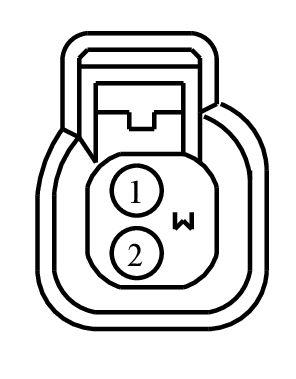

Connector End View (C426) - REAR WHEEL SPEED SENSOR RH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C426	REAR WHEEL SPEED SENSOR RH	BK	14A411	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VCA06 (WH-OG)	20	SOUNDER - BATTERY BACKUP	N/A
2	RCA20 (BN)	20	CTRL MOD. - SENSOR YAW	N/A

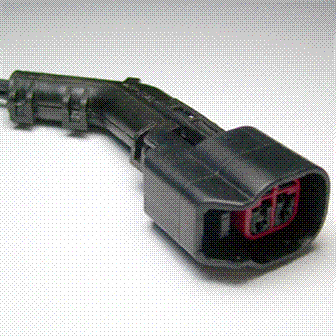

Available Pigtail Kits

Pigtail Kit Part Number WPT-1246

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-RA

Gauge:

14

Pin material:

Tin (greased)

Cavities:

2

Vehicle Uses:

• Sensor - Speed
