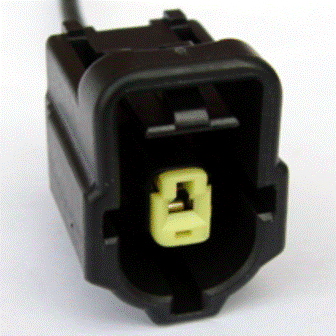

Connector End View (C9800) - ENGINE OIL PRESSURE (EOP) SWITCH

Connector:C103

Description

ENGINE OIL PRESSURE (EOP) SWITCH

Color

BK

Harness

12A690

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CE908 (BU-BN)	20	SWITCH - ENGINE OIL LEVEL (EOL)	1.0L/1.6L GTDI
1	CMC24 (GY)	20	SWITCH - ENGINE OIL LEVEL (EOL)	2.5L

Available Pigtail Kits
Pigtail Kit Part Number WPT-439  Courtesy of FORD MOTOR COMPANY	Service Part Number: 3U2Z-14S411-MHA  Gauge: 14  Pin material: Tin  Cavities: 1  Vehicle Uses Sensor - Oil Pressure Switch - Oil Sending Unit
