Turbocharger Boost Pressure/Air Cooler Temperature (TCBP/ACT) Sensor (1.0L)

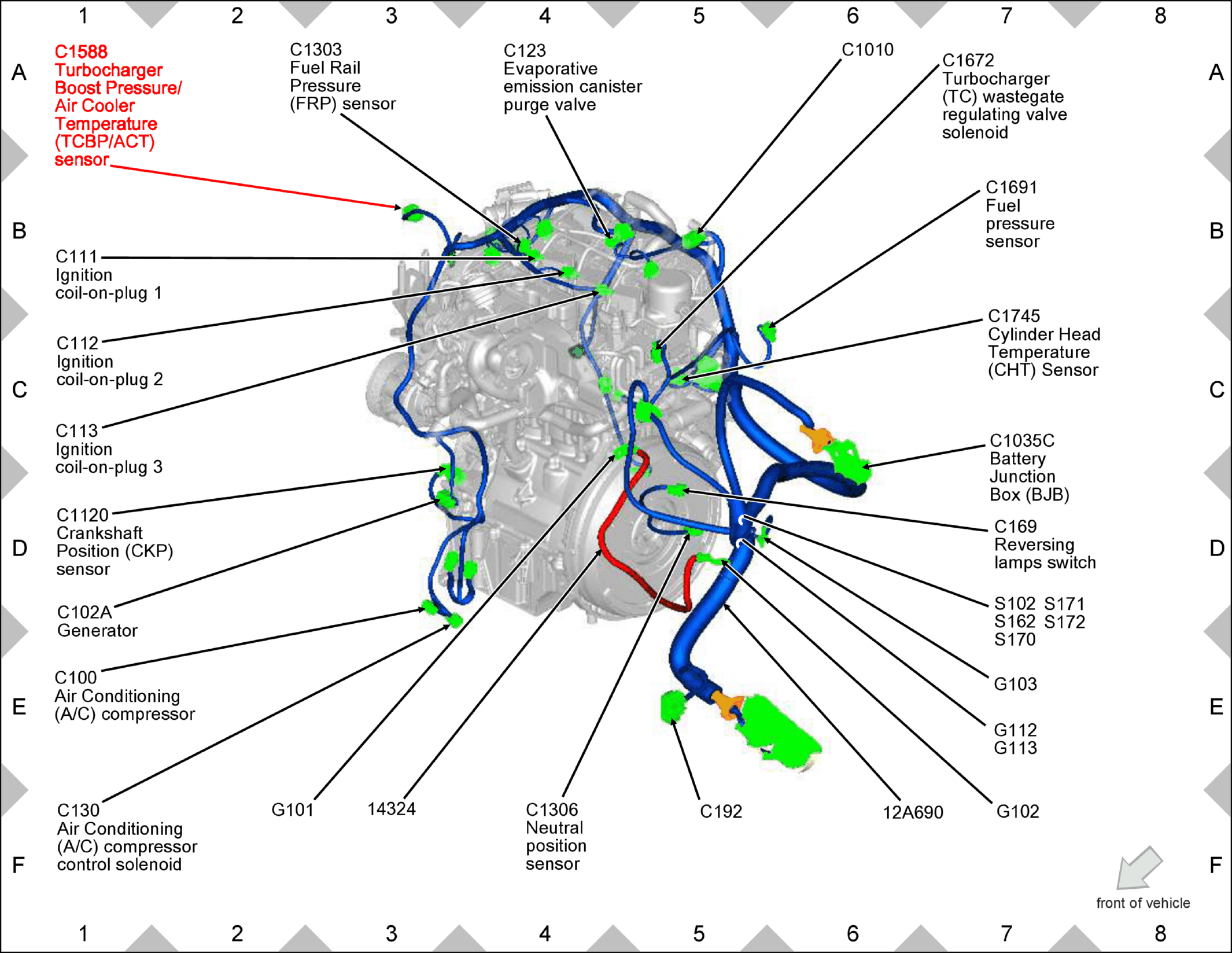

Fig 1: Turbocharger Boost Pressure/Air Cooler Temperature (TCBP/ACT) Sensor (1.0L) Components Location
GFDW64410Courtesy of FORD MOTOR COMPANY
